Horizon Hobby E-flite Maule M7 User Manual

EN
3
SAFE
®
Select Technology (BNF Basic) ............................................................4
Preight .........................................................................................................4
Transmitter Setup .........................................................................................4
Model Assembly ............................................................................................5
Scale Accessories Optional ............................................................................7
Float Installation Optional ...............................................................................7
Receiver Access .............................................................................................8
Battery Installation and ESC Arming ............................................................... 8
Transmitter and Receiver Binding / Enable or Disable SAFE Select (BNF) ........ 9
SAFE
®
Select Switch Designation .................................................................10
Control Horn and Servo Arm Settings ...........................................................10
Center of Gravity (CG) .................................................................................10
AS3X Control Direction Test .........................................................................11
In Flight Trimming ........................................................................................ 11
Flying Tips and Repairs ................................................................................ 12
Flying Off Water ...........................................................................................12
PNP Receiver Selection and Installation .......................................................13
Post Flight....................................................................................................13
Motor Service ..............................................................................................13
Troubleshooting Guide AS3X ........................................................................14
Troubleshooting Guide .................................................................................14
AMA National Model Aircraft Safety Code .....................................................15
Limited Warranty .........................................................................................16
Contact Information .....................................................................................16
FCC Information ...........................................................................................17
IC Information .............................................................................................. 17
Compliance Information for the European Union ...........................................17
Recommended Receivers ............................................................................63
Replacement Parts .......................................................................................64
Optional Parts ..............................................................................................65

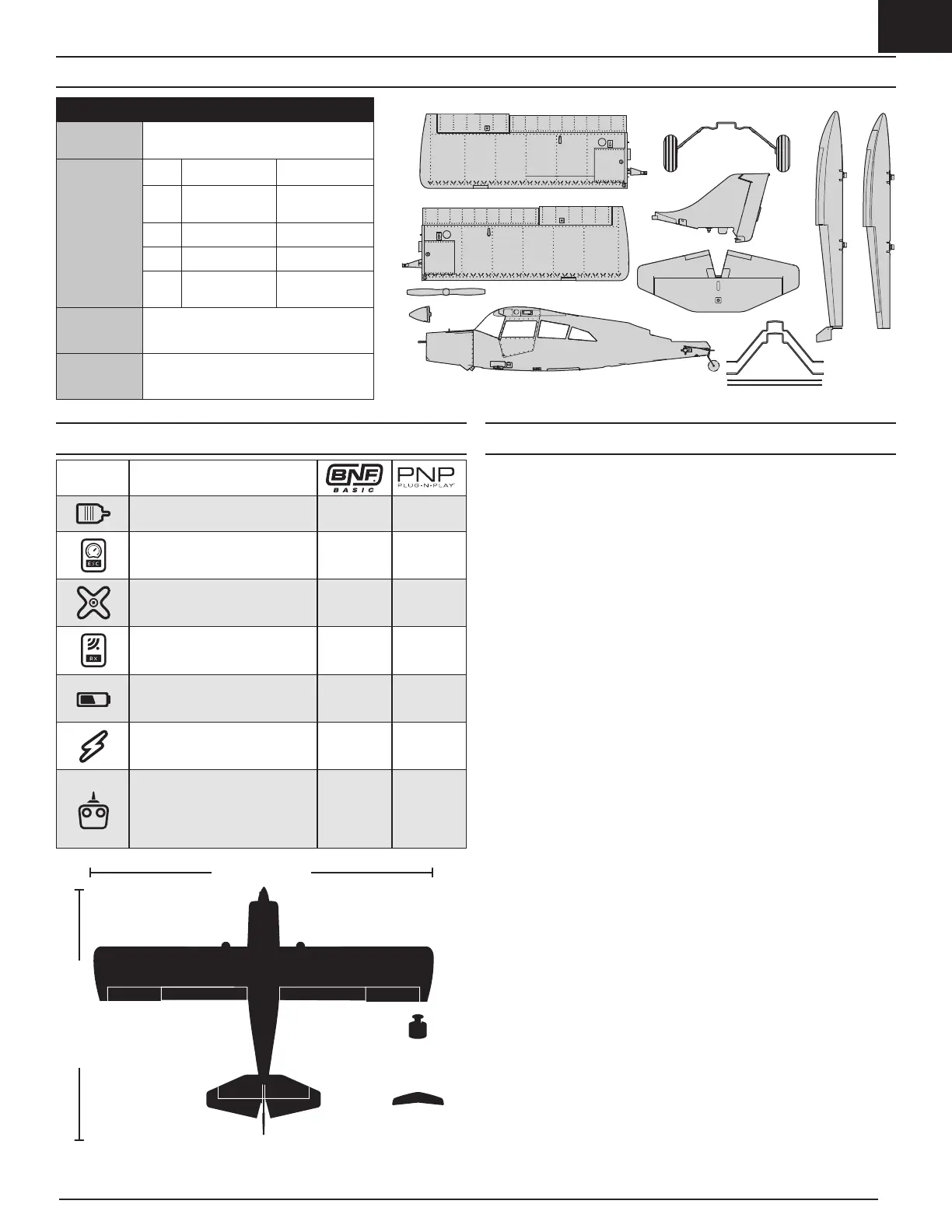

Box Contents
Quick Start Information
Transmitter
Setup
Set up your transmitter using the
transmitter setup chart
Dual Rates
Hi Rate Low Rate
Ail
p30mm
q25mm
p22mm
q18mm
Ele 30mm 20mm
Rud 18mm 13mm
Flaps
Landing
q=40mm
Takeoff
q=30mm
Center of
Gravity (CG)
55 – 70mm back from leading edge of
wing at the fuselage.
Flight Timer
Setting
4 minutes
Table of ContentsSpecications
Motor: 15BL (EFL5367) Installed Installed
ESC: 40A ESC (EFLA1040W) Installed Installed
Servos: 9 gram servo (SPMSA330) Installed Installed
Receiver: Spektrum™ AR631
SAFE and AS3X 6-Channel
Receiver (SPMAR631)
Installed
Required to
Complete
Recommended Battery: 11.1V
3S–4S 2200–3200mAh 30C Li-Po
(SPMX22003S30, SPMX32003S30)
Required to
Complete
Required to
Complete
Recommended Battery Charger:
3-4 cell Li-Po battery balancing
charger
Required to
Complete
Required to
Complete
Recommended Transmitter:
Full-Range 6 channel (or more)
2.4GHz with Spektrum
DSM2
®
/DSMX
®
technology with
adjustable Dual Rates
Required to
Complete
Required to
Complete
59 in (1500mm)
43.3 in (1100mm)
66 oz (1871g)
557 sq/in (35.9
sq/dm)
If you own this product, you may be required to register with the FAA.
For up-to-date information on how to register with the FAA, please visit
https://registermyuas.faa.gov/. For additional assistance on regulations and
guidance on UAS usage, visit knowbeforeyoufly.org/.
