Model Assembly

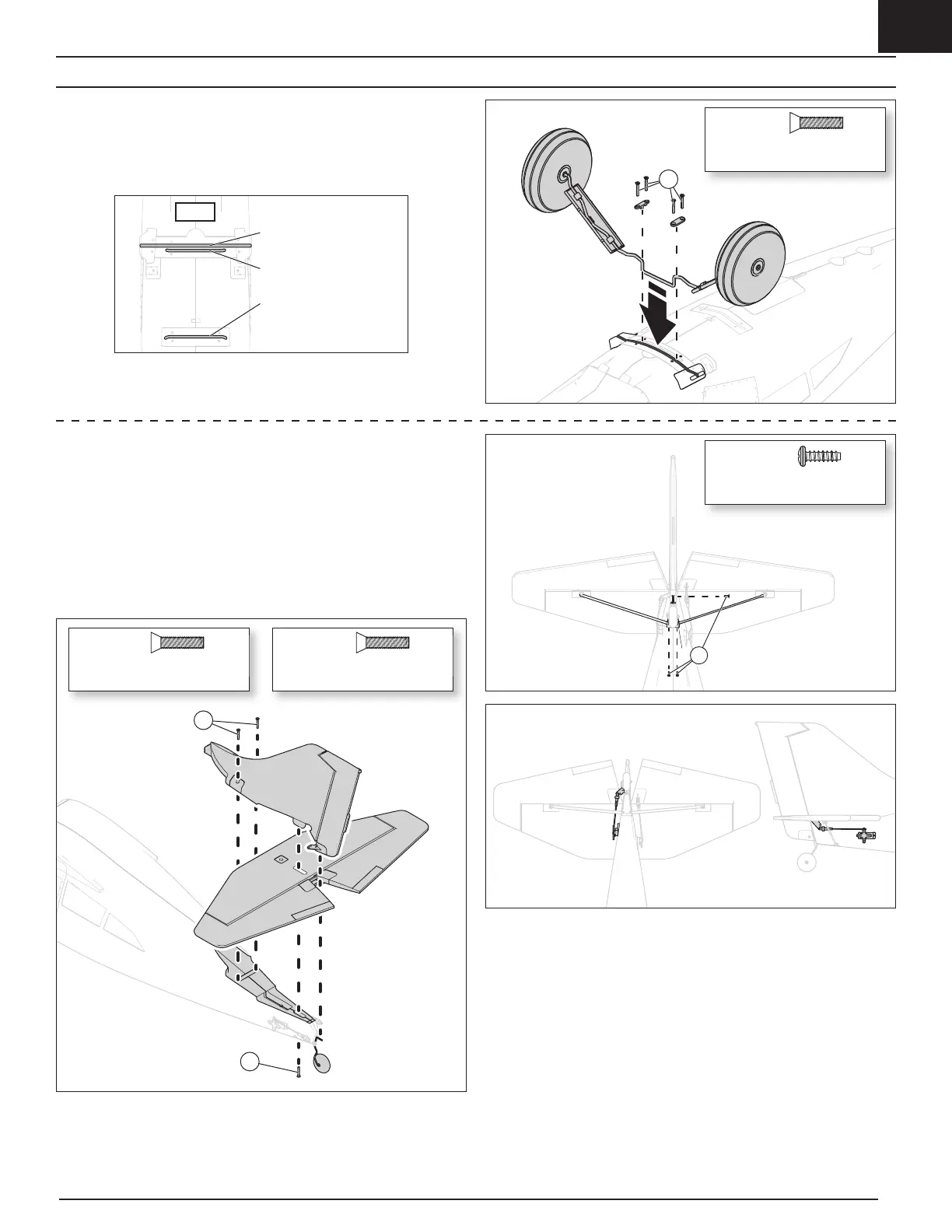

Tail Installation
1. Insert the vertical stabilizer into the slot in the horizontal stabilizer.
2. Install the tail assembly and insert the tail wheel wire into the rudder.
3. Secure the Tail assembly in place with two 3 x 16mm hex head screws (B)
from the top and one 3 x 16mm screw (C) from the bottom.
4. Flex the tail struts slightly and insert them into the pockets on the fuselage.
Screw them in place with 2 x 8mm screws (D).
5. Secure the tail wheel assembly in place with a 2 x 8mm phillips head screw (D).
6. Connect the clevises on the elevator and rudder pushrods to the control
horns on the outermost holes.
B
C
D
Landing Gear Installation
1. Insert the landing gear assembly into the front mounting location on the
bottom of the fuselage as shown.
2. Secure the landing gear into place with the four included 3 x 16mm (A)
screws and mounting straps.
B
A
3 x 16mm
Tapered hex head machine
B
3 x 16mm
Tapered hex head machine
C
2 x 8mm
Phillips head self tapping
D
3 x 16mm
Tapered hex head machine
A
5
Front
Wheeled landing gear slot
Front oat strut slot
Rear oat strut slot
