Control Horns Servo
Elevator
Elevator
Tail wheel
Use the center hole on each linear
servo arm
Ailerons
Elevator
Tail wheel
Rudder
Elevator
Tail wheel
CAUTION: Always disconnect the ight battery from the model before
removing the propeller.

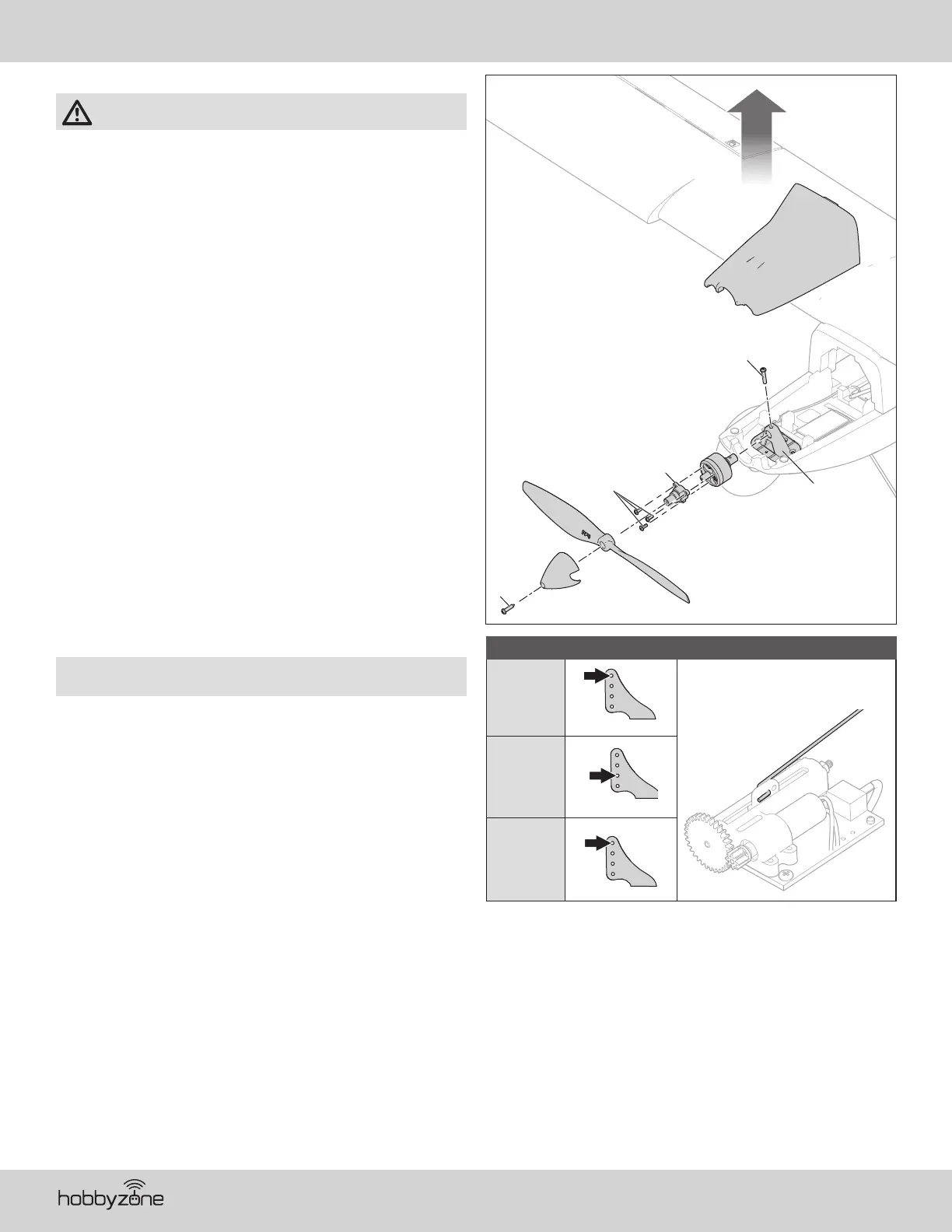

Disassembly
1. Remove the battery hatch.
2. Use a #1 Phillips screwdriver to remove the 2x6mm self tapping screw (A)
from the center of the spinner. This screw secures both the propeller and
the spinner.
3. Use a #1 Phillips screwdriver to remove the three M1.6x4 machine screws
(B) holding the propeller adapter (C) to the motor, and remove the propeller
adapter.
4. Use a #1 Phillips screwdriver to remove the M2x10mm machine screw on
top of the motor mount (D).
5. Remove the motor from the motor mount (E).
6. Disconnect the connectors between the motor and the ESC.
Assemble in reverse order.
Assembly Tips
• Correctly align and connect the motor wire colors with the ESC wires.
• The propeller size numbers (6 x 3.5) must face forward for correct propeller
operation.
• Do not over-tighten screws. Thread the screws snugly into place, but do not
force them to turn further. Damage to plastic parts may result if you apply
too much force.
IMPORTANT: Do not use threadlock where screws enter plastic components.
Service of Power Components
Control Horn and Servo Settings
NOTICE: Moving a linkage to another position may block the servo arm or
affect SAFE technology functionality.
The Illustration shows the factory hole settings in servo arms and control horns.
A
B
E
C
D
