EN
To register your product online, visit www.e-fliterc.com

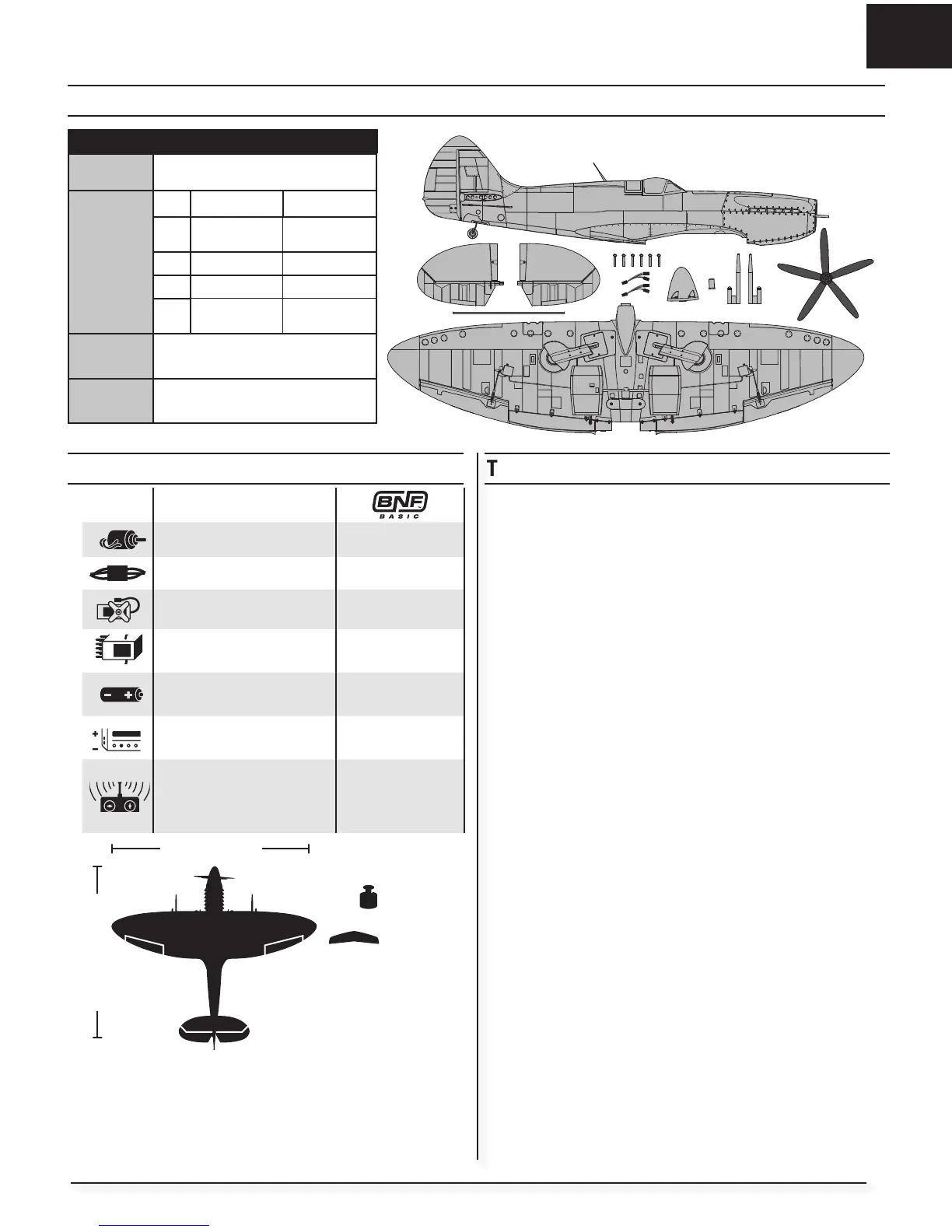

Box Contents
Quick Start Information
Transmitter
Setup
Set up your transmitter using the
transmitter setup chart
Dual Rates
Hi Rate Low Rate
Ail
p20mm
q18mm
p15mm
q12mm
Ele
12mm 9mm
Rud
25mm 18mm
Flaps
Landing
q=30mm
Takeoff
q=15mm
Center of
Gravity (CG)
78mm back from leading edge
of wing at the fuselage.
Flight Timer
Setting
5 minutes
Table of Contents
53.5 OZ
(1515 g)
42.32 in (1070mm)
(47.25 in 1200mm)
Specifications
Motor: BL15 Brushless Outrunner
850Kv (EFLM4115)
Installed
ESC: 40 AMP Brushless ESC
(EFLA1140W)
Installed
9 gram servo (SPMSA330) Installed
Receiver: Spektrum
™
AR636A
6-Channel Sport Receiver
(SMPAR636)
Installed
Recommended Battery:
11.1V 3S 2200mAh 30C Li-Po
(EFLB22003S30)
Required to
Complete
Recommended Battery Charger:
3-cell Li-Po battery balancing
charger
Required to
Complete
Recommended Transmitter:
Full-Range 6 channel (or more)
2.4GHz with Spektrum
DSM2
®
/DSMX
®
technology with
adjustable Dual Rates
Required to
Complete
416.9 Sq In
(26.9 Sq Dm
SAFE Select Technology ..................................................................4
Preflight ..........................................................................................4
Transmitter Setup ...........................................................................4
Model Assembly ........................................................................ 5–7
Transmitter and Receiver Binding/
Switching ON and OFF SAFE Select ...............................................8
SAFE Select Switch Designation......................................................9
Control Horn and Servo Arm Settings ..............................................9
Battery Installation and ESC Arming ..............................................10
Center of Gravity (CG) ...................................................................11
AS3X Control Direction Test ..........................................................11
In Flight Trimming .........................................................................12
Flying Tips and Repairs .................................................................12
Post Flight ....................................................................................13
Motor Service ...............................................................................13
Troubleshooting Guide AS3X .........................................................13
Troubleshooting Guide ..................................................................14
AMA National Model Aircraft Safety Code ......................................15
Limited Warranty ..........................................................................16
Contact Information ......................................................................17
FCC Information ............................................................................17
IC Information ...............................................................................17
Compliance Information for the European Union ............................17
Replacement Parts ........................................................................63
Optional Parts ...............................................................................63
As of this printing, you are required to register with the FAA if you own this
product.
For up-to-date information on how to register with the FAA,
visit https://registermyuas.faa.gov/.
For additional assistance on regulations and guidance on UAS usage,
visit knowbeforeyoufly.org/.
3
