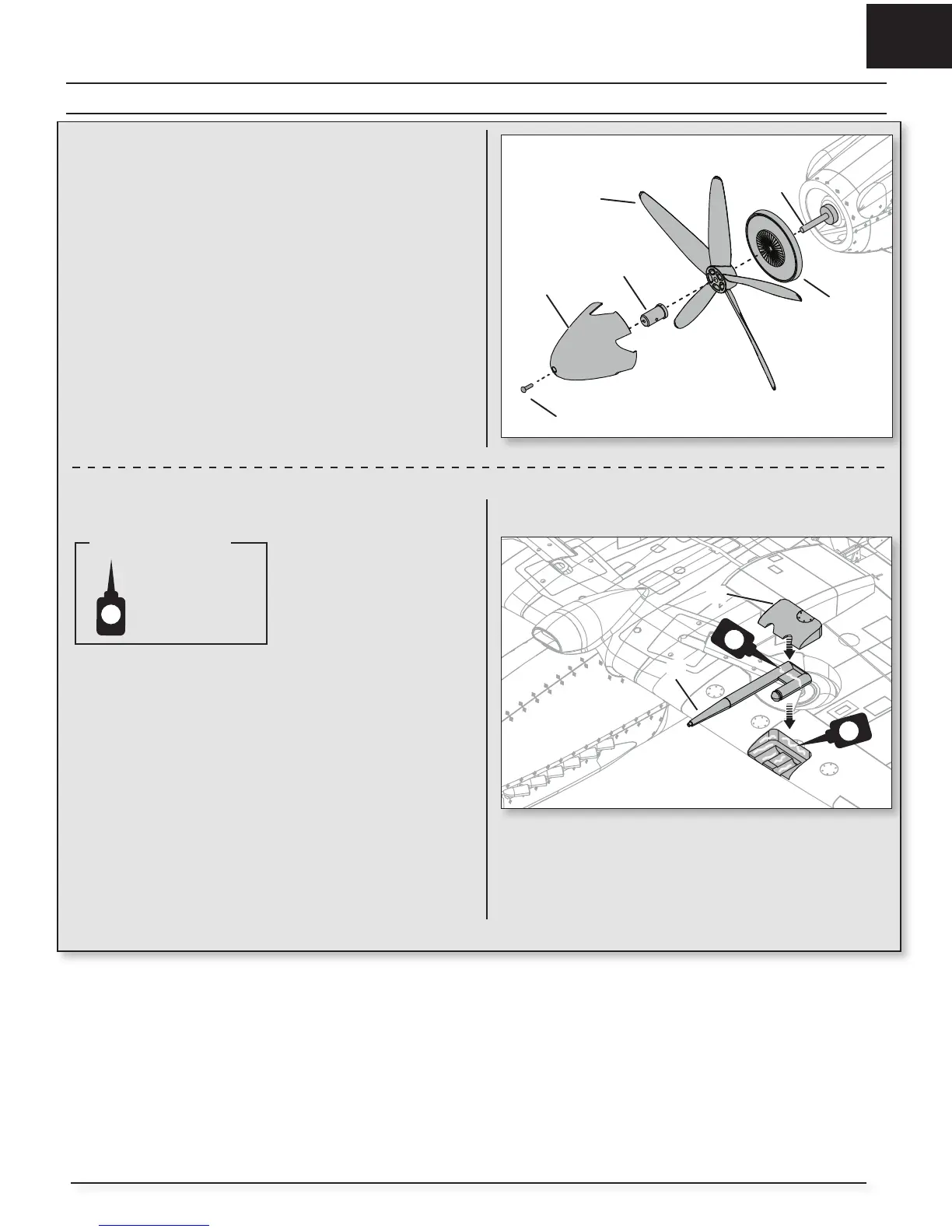

Propeller Installation
IMPORTANT: Install the propeller after all system setups are completed to
reduce the chance of accidental propeller strike.
1. Install the spinner backplate (A) and propeller (B), on the propeller shaft (C).
The propeller size numbers (10.5 x 8) must face out from the motor for cor-
rect propeller operation.
2. Install the spinner nut (D) to secure the propeller into place. Use a small
screw driver or hex wrench inserted into the small hole (Inset) and turn
clockwise to secure it into place.
3. Install the spinner (E) and secure it into place using the included screw (F).
Disassemble in reverse order.
Wing Cannon Installation
1. Carefully apply medium CA to the base and sides of the cannon pocket.
2. Carefully place the cannon (A) into the pocket and apply medium CA to
the cannon.
3. Secure the cannon into place with the foam plate (B).
4. Repeat for other wing.
Model Assembly Continued
F
E
D
C
B
A
A
B
Required Adhesives:
Medium CA
7
To Next Page
