EN
Model Assembly

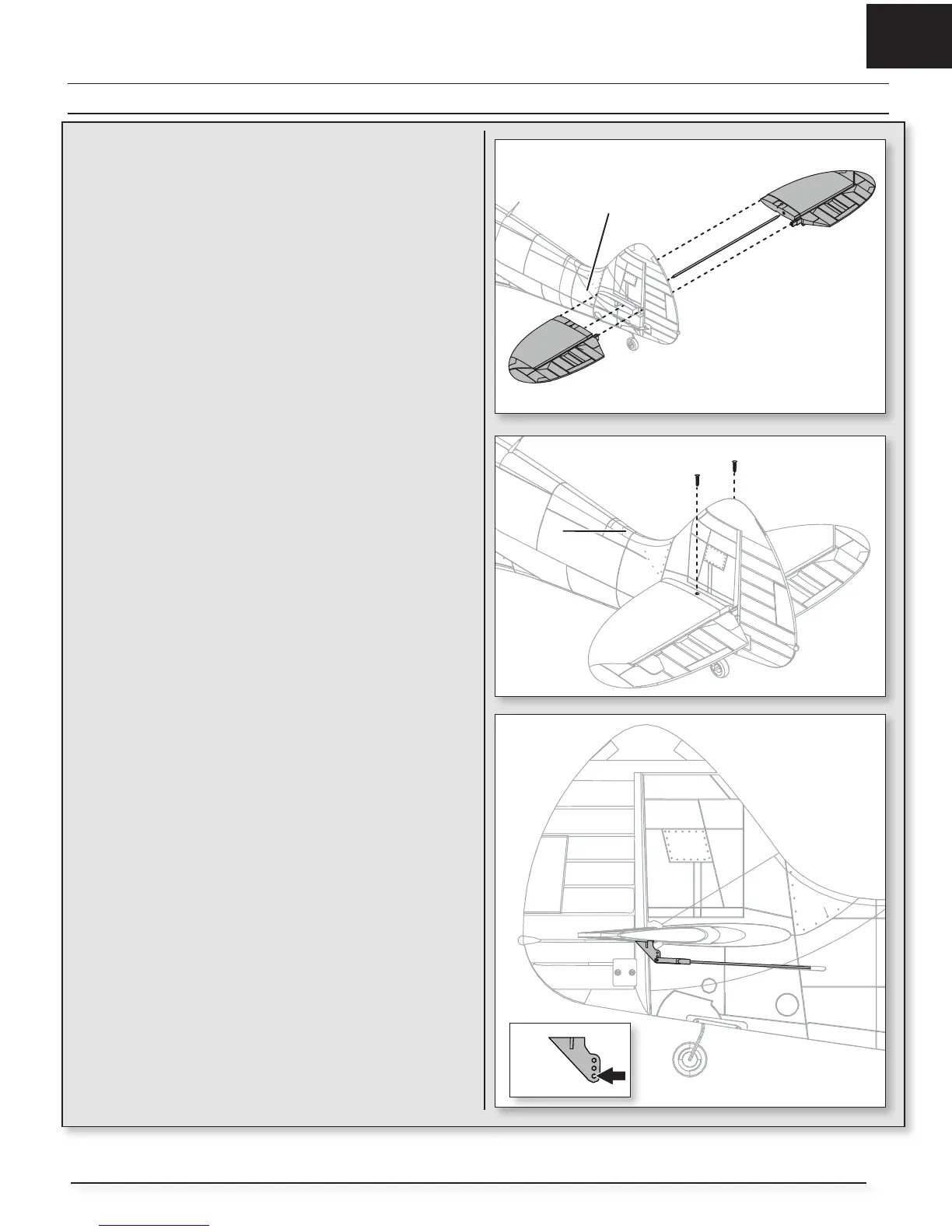

Horizontal Tail Installation
1. Slide the horizontal tail (A) into the slot in the rear of the fuselage. Ensure
the control horn faces down.
2. Secure the horizontal tail piece in place using the included screw (B). Use
caution to avoid over-tightening the screw.
3. Attach the clevis to the elevator control horn (see instructions for
clevis connection).
A
B
Elevator
Flaps
Tail wheel
5
