G. Checking the correct functioning of the circuit (continued)
Measuring the consumption of the electric circuit

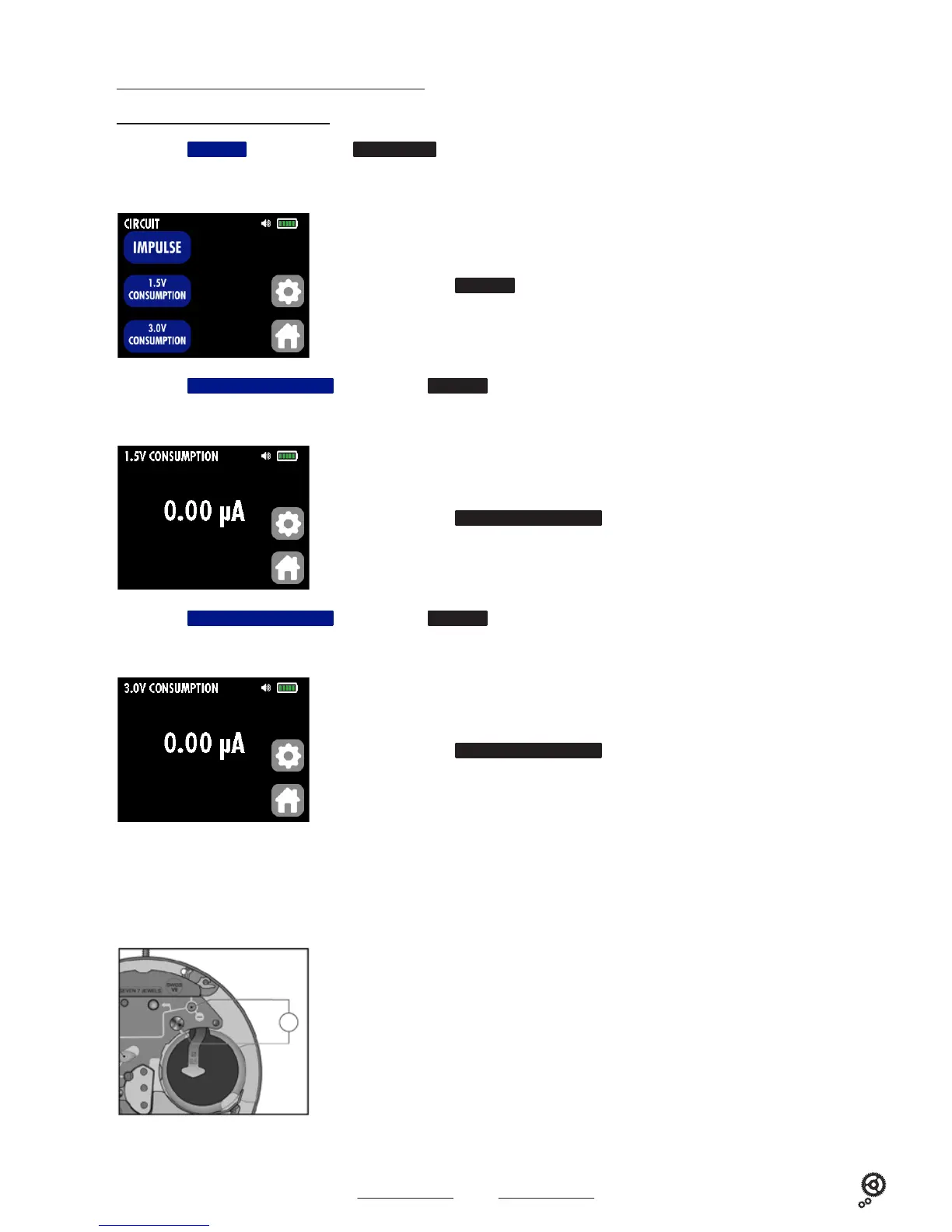

Gb1. Press the
CIRCUIT
key on the main menu
FLASHTEST
to measure the consumption of the electric circuit.
The following screen displays :
Gb2. Press the
1.5V CONSUMPTION
key of the submenu
CIRCUIT
if the watch is supplied with 1.5 V.
The following screen displays :
Gb3. Press the
3.0V CONSUMPTION
key of the submenu
CIRCUIT
if the watch is supplied with 3.0 V.
The following screen displays :
Display of the sub-submenu
CIRCUIT
Display of the sub-submenu
1.5V CONSUMPTION
Display of the sub-submenu
3.0V CONSUMPTION
Use the probes and place them as shown on the sketch below.
- Measuring range : 0 … 19.999 μA
- PULL THE WINDING STEM FULLY
- Remove the battery.
Caution : always choose the right polarity. NEVER CHOOSE the function 3.0 V for a 1.5 V watch.
Compare the measured value to the one specified by the manufacturer or in this manual.
- A zero consumption (0) indicates a breakdown of circuit.
Troubleshooting : change the circuit.
- If the consumption is higher or lower than the one stated by the manufacturer, the circuit is defective.
Troubleshooting : it is strongly recommended to change the circuit.
