Dropping or lowering machine parts can cause
severe crushing injuries etc.!
¾ Instruct persons to leave the danger zone.
¾ Comply with the accident prevention instructions.
Damages to the machine and the supporting
surface
¾ Fold the machine only on a level and rm
surface.
Hydraulic movements can lead to severe ac-
cidents and injuries.
Ask people to leave the danger zone before
operating the hydraulics.
Always keep an eye on the machine during the
folding process.

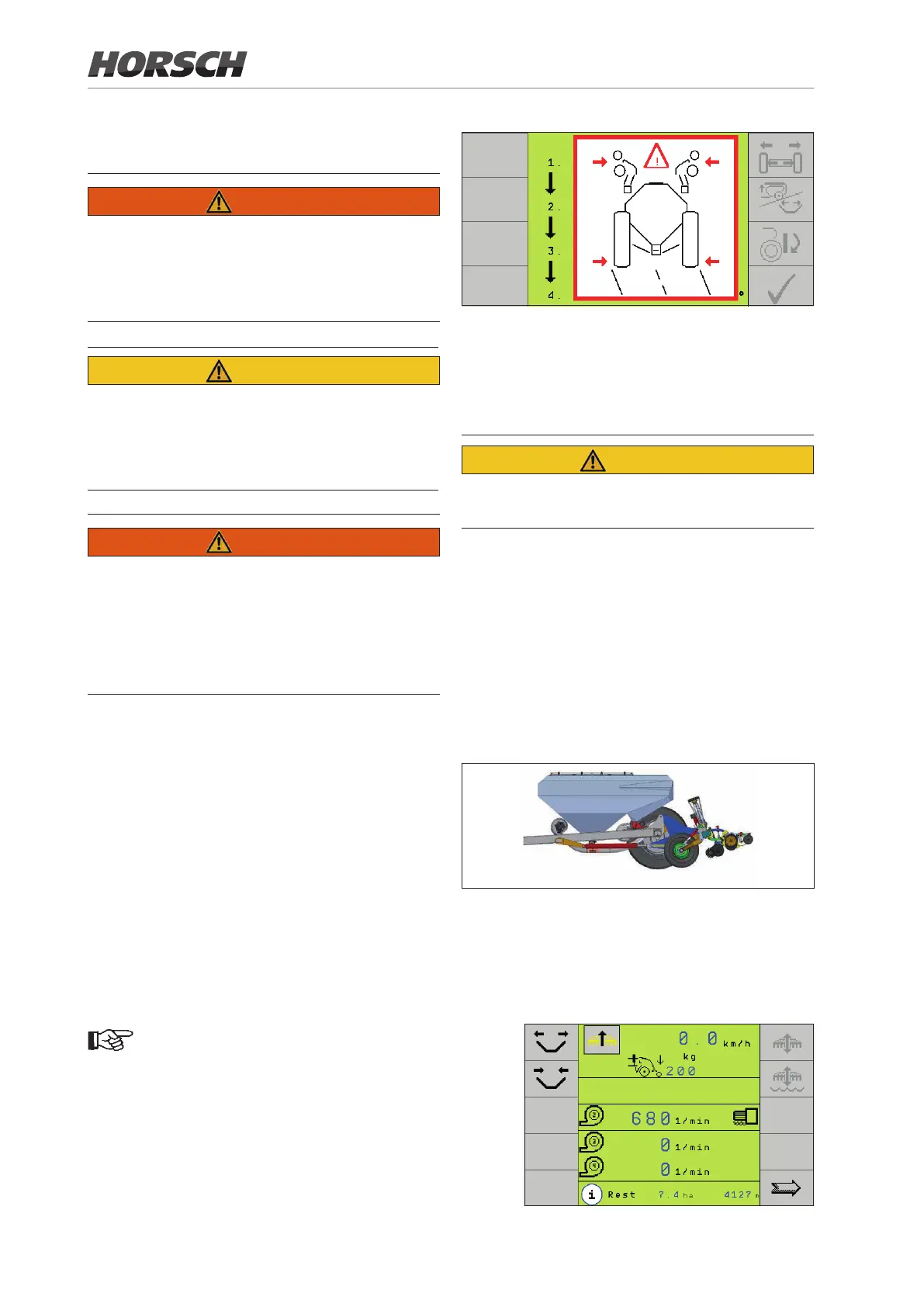

The menu in the E-Manager guides automati-
cally through the folding process.
The display shows the symbols with a grey
shade. Only active symbols appear in their full
colour.
Once the conditions for the next work step are
fullled, the display of symbols will change from
shaded to full colour and the next step can be
executed.
Folding
Operate the control unit only in the direc-
tion preselected in the menu!
The transport width is not observed when termi-
nating the folding process. You should therefore
not drive on public roads:
The folding process must be repeated or, in
case of fault, manually completed in the "Ser-
vice" menu.
Damage to the machine caused by collision.
Fold down the railing before folding up the machine!
Pay attention to the sequence of the following steps!
¾ Connect the machine.
¾ Fold the railing on the seed wagon, see chap-
ter Platform.
¾ Switch on the E-Manager and select hydrau-
lics Lift in the display.
¾ Lift the machine until the symbols for unfold-
ing/folding change to black:
Machine lifted
¾ Remove the aluminium clips from the support
wheels.
¾ Switch on the hydraulic Folding function in the
display:
>
30
