(European
machines)
The machine can be equipped with a pneu-
matic or hydraulic brake system. The machine
is equipped with a parking brake
for safe
parking.
Uncontrolled rolling of the machine can cause
severe injuries by crushing or rolling over.
¾ Park the machine only on level ground with
sucient load bearing capacity.
¾ Secure the machine with wheel chocks against
rolling before releasing the brake.
Adjustments and repair work on the brake sys-
tem must only be carried out in a professional
workshop or by an operator, who has been
specially trained by HORSCH for this purpose.

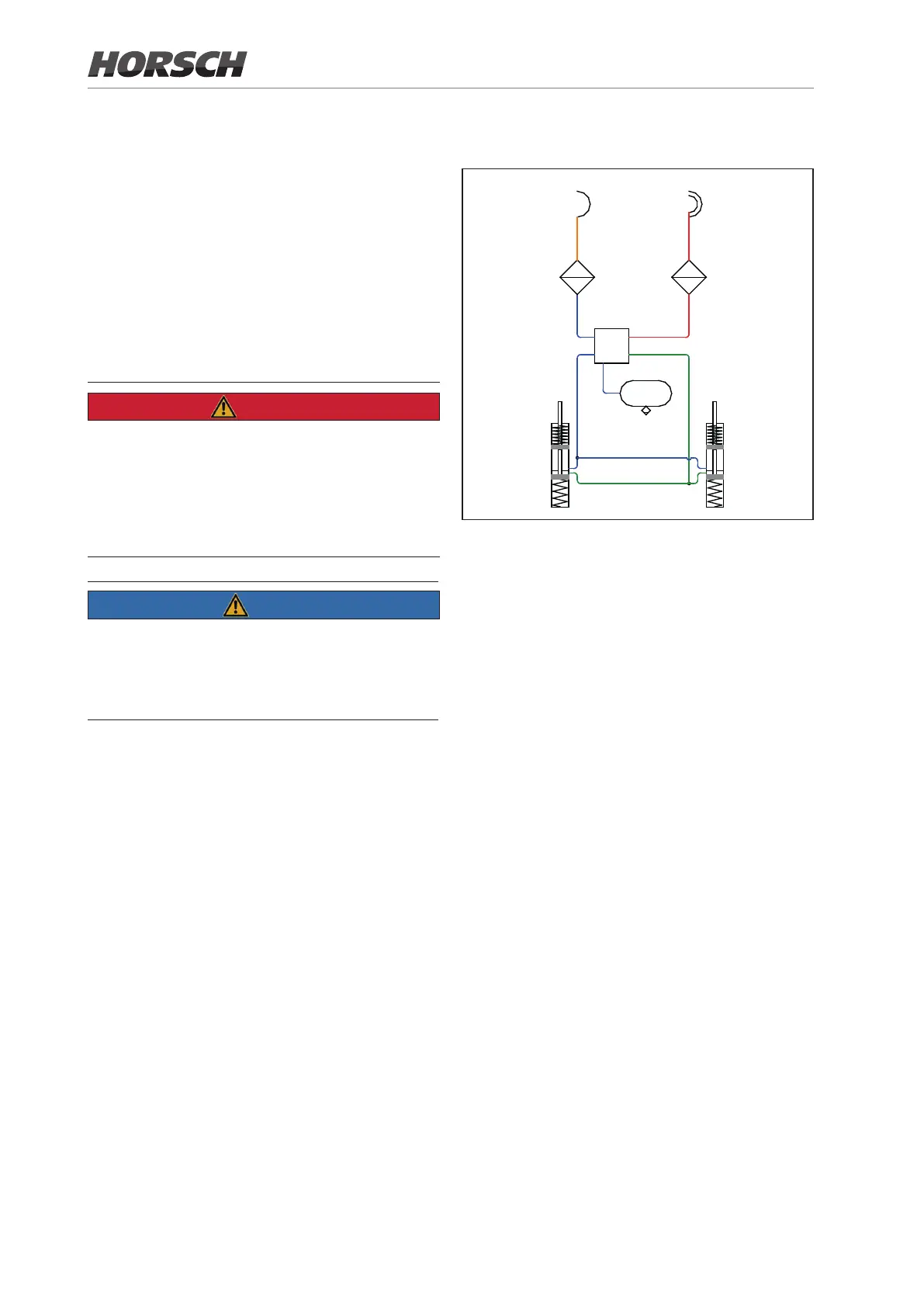

Pneumatic brake
1. Coupling head "Brake" yellow
2. Coupling head "Provision" red
3. Pipe lter
4. Trailer brake valve with brake pressure regulator
and parking brake
5. Air reservoir
6. Drain valve
7. Spring brake cylinder
The tractor must always be secured with the
parking brake when connecting.
1. The tractor must be secured with the parking
brake when unhitching.
2.
coupling head "Provision"
(red).
3.
disconnect the coupling head "Brake"
(yellow).
58 59
1. Connect the coupling head "Brake" (yellow)
.
2.
, connect the coupling head "Provi-
sion" (red).
3. Press the parking brake button up and re-
lease the parking brake.
