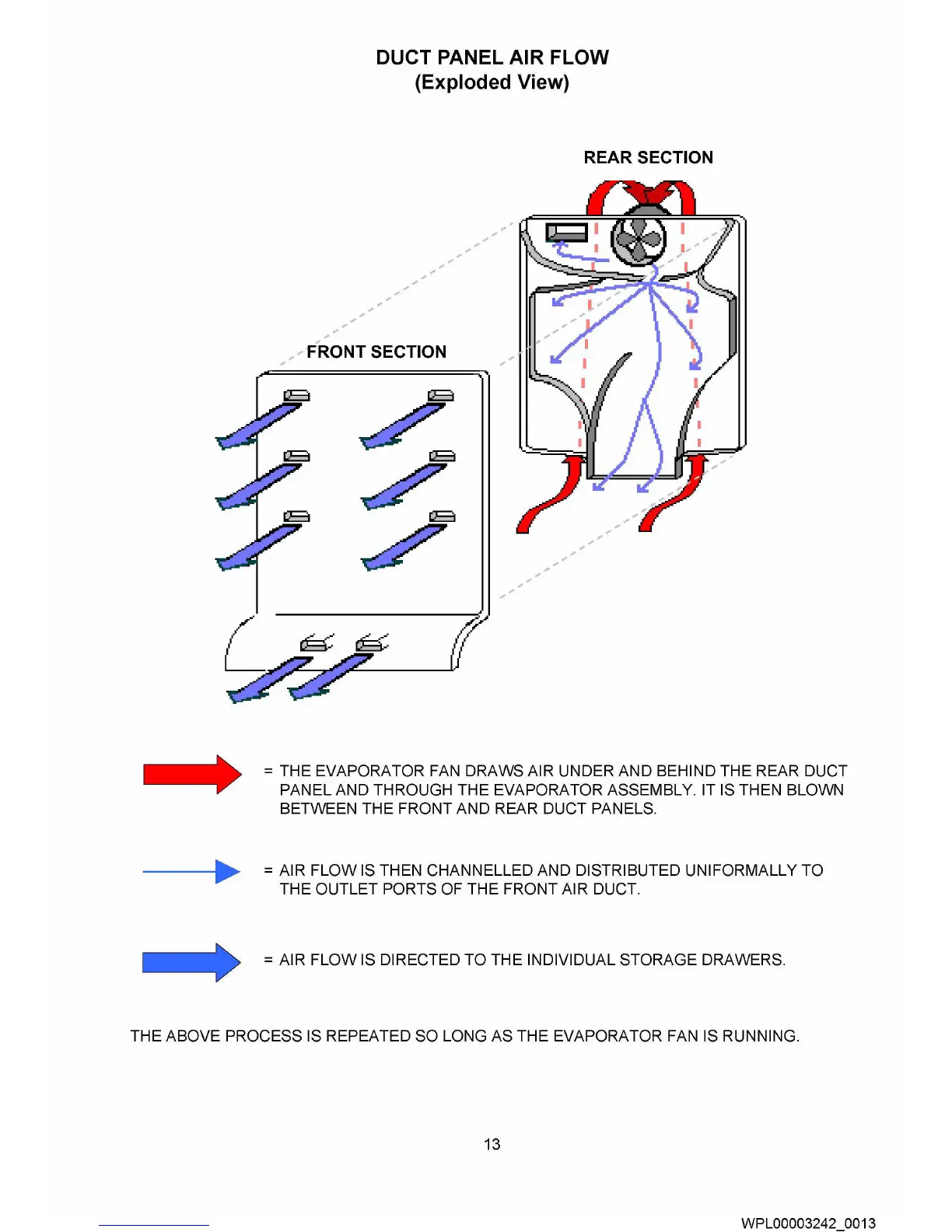

DUCT PANEL AIR FLOW
(Exploded View)
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
REAR SECTION
...-·
FRONT SECTION
=THE
EVAPORATOR
FAN
DRAWS AIR UNDER AND BEHIND THE REAR DUCT
PANEL AND THROUGH THE EVAPORATOR
ASSEMBLY
IT IS THEN BLOWN
BETWEEN THE FRONT AND REAR DUCT PANELS.
= AIR FLOW
IS
THEN CHANNELLED AND DISTRIBUTED
UNI
FORMALLY TO
THE OUTLET PORTS OF THE FRONT AIR
DUCT
= AIR FLOW IS DIRECTED TO THE INDIVIDUAL STORAGE DRAWERS.
THE ABOVE PROCESS IS REPEATED SO LONG AS THE EVAPORATOR FAN IS RUNNING.
13
VVPL00003242_0013
