Hotpoint FF175BP - Wiring Connection Chart

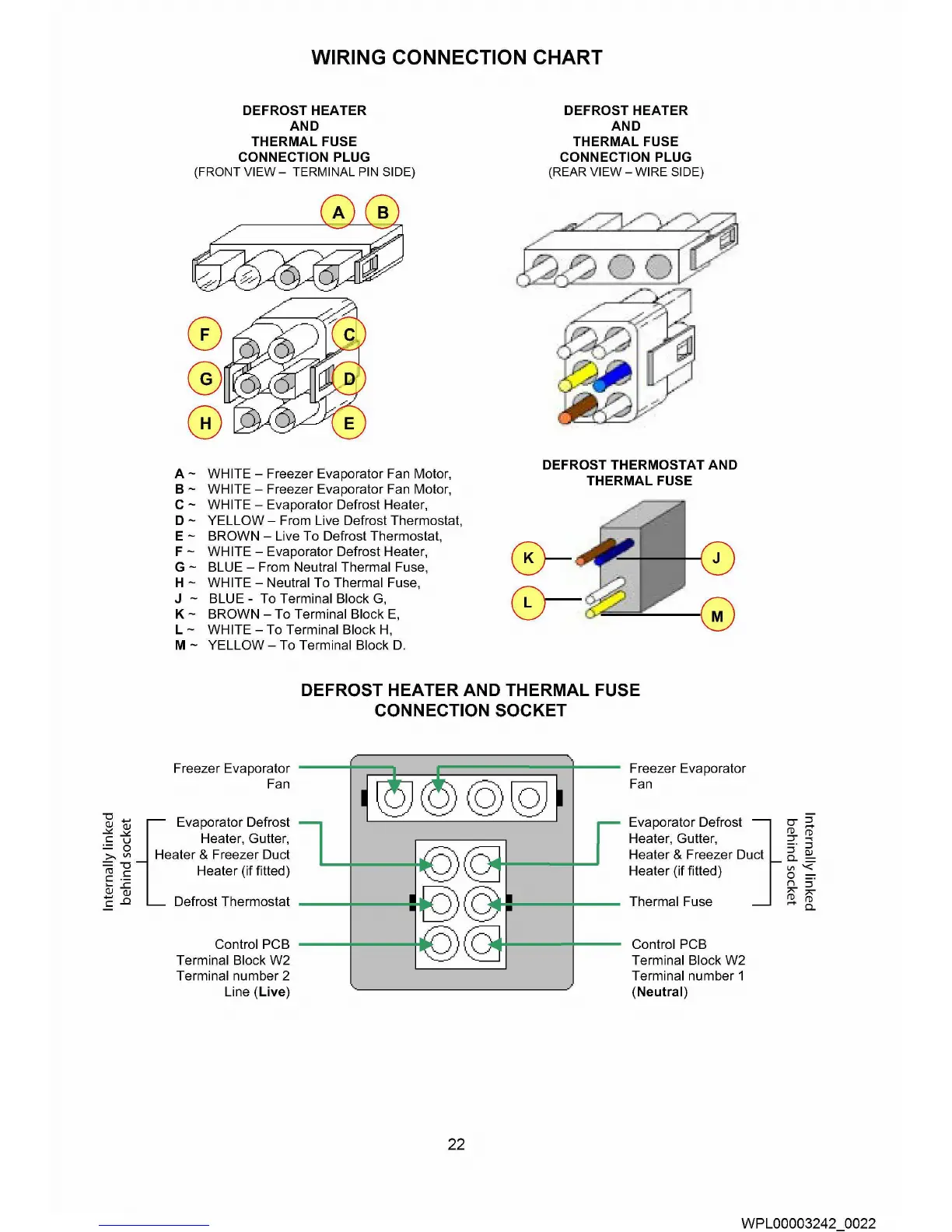

WIRING CONNECTION CHART
DEFROST HEATER
AND
THERMAL FUSE
CONNECTION PLUG
(FRONT VIEW - TERMINAL PIN SIDE)
0
©
0
A - WHITE - Freezer Evaporator Fan Motor,
B - WHITE - Freezer Evaporator Fan Motor,
C - WHITE - Evaporator Defrost Heater,
D - YELLOW - From Live Defrost Thermostat,
E - BROWN - Live To Defrost Thermostat,
F - WHITE - Evaporator Defrost Heater,
G - BLUE - From Neutral Thermal Fuse,
H - WHITE - Neutral To Thermal Fuse,
J - BLUE - To Terminal Block G,
K - BROWN - To Terminal Block E,
L - WHITE - To Terminal Block H,
M - YELLOW - To Terminal Block D.
DEFROST HEATER
AND
THERMAL FUSE
CONNECTION PLUG
(REAR VIEW - WIRE SIDE)
DEFROST THERMOSTAT AND
THERMAL FUSE
DEFROST HEATER AND THERMAL FUSE
CONNECTION SOCKET
] Q:J f Evaporator Defrost
~ -D Heater, Gutter,
~ ~ Heater & Freezer Duct
ro -g Heater (if fitted)
c ·-
..... ..c
QJ QJ
c ..o Defrost Thermostat ----1--- +1 ~
Control PCB
Terminal Block W2
Terminal number 2
Line (Live)
22
Freezer Evaporator
Fan
Evaporator Defrost } a- ~
ro ro
Heater, Gutter, ~ 3
Heater & Freezer Duct 6_ ~
Heater (if fitted) ~ ';,
n ::::i
'7'" '7'"
- - ------ Thermal Fuse ~ ~
Control PCB
Terminal Block W2
Terminal number 1
(Neutral)
WPL00003242_0022
