D:
Top Hinge Pin and Door Assembly
If the holes are not present on the left hand side for
the centre hinge, carefully position and drill two 3 mm
pilot holes guided by the indented markings on the
centre transom. Ensure the drill bit does not run too
deeply into the appliance (Fig.
Sa).
Fit the blanking plugs provided with the appliance into
the right hand two centre hinge holes that are now
vacant (Fig. Sb).
Place the freezer door onto the bottom hinge pin.
While supporting the door screw the centre hinge into
position (Fig. Sc).
Place the fridge door onto the centre hinge pin and
align it with the top hinge assembly and screw the top
hinge pin
in.
Refit the hinge blanking plug and the
door hinge surround strip to the fridge door, noting
that the cut-out end corresponds with the hinge
(Fig. Sd).
NOTE: - On the reverse side
of
the hinge surround
strip are two positions for the light switch magnet.
If there is only one magnet fitted then relocate the
magnet into the vacant space provided.
Finally check the door operation.
21

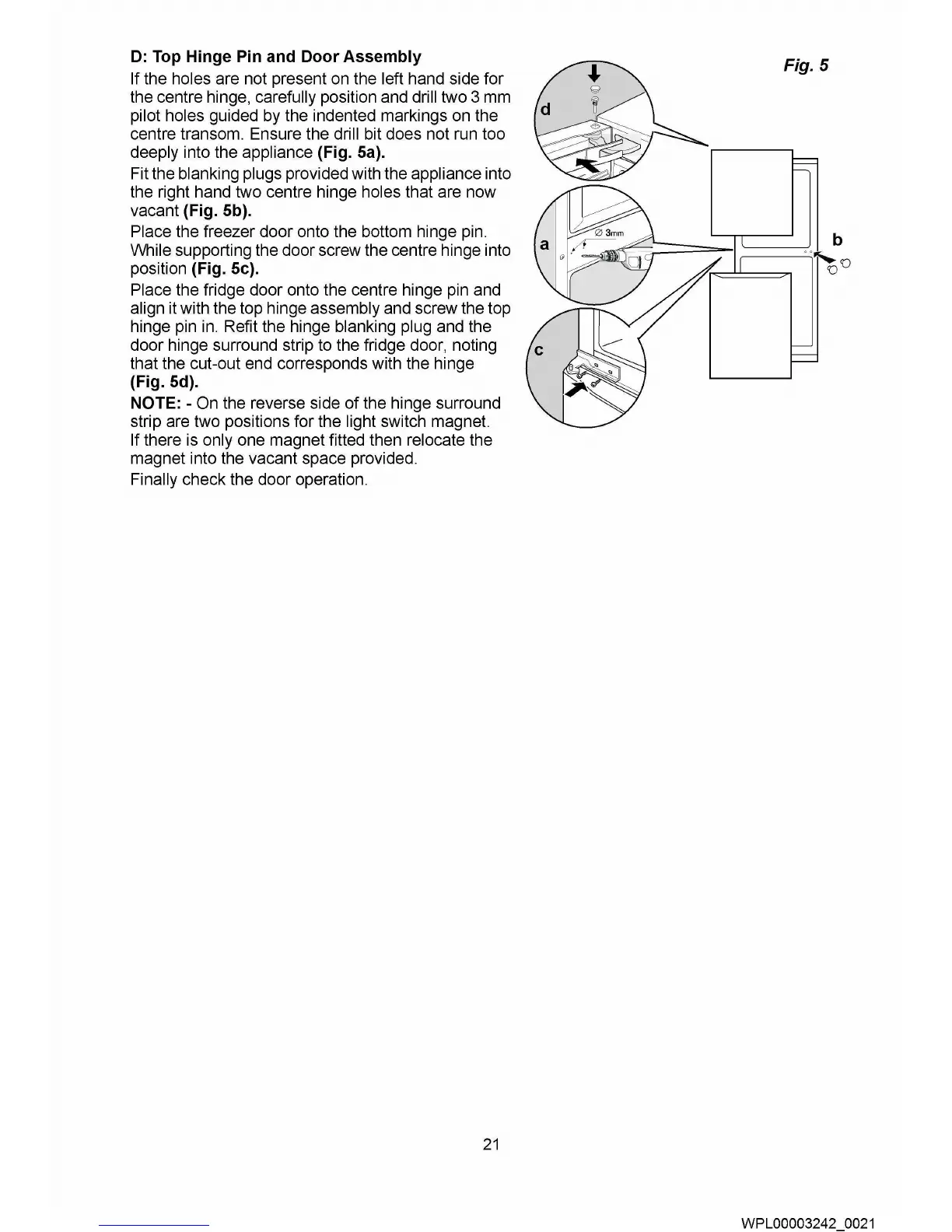

Fig. 5
