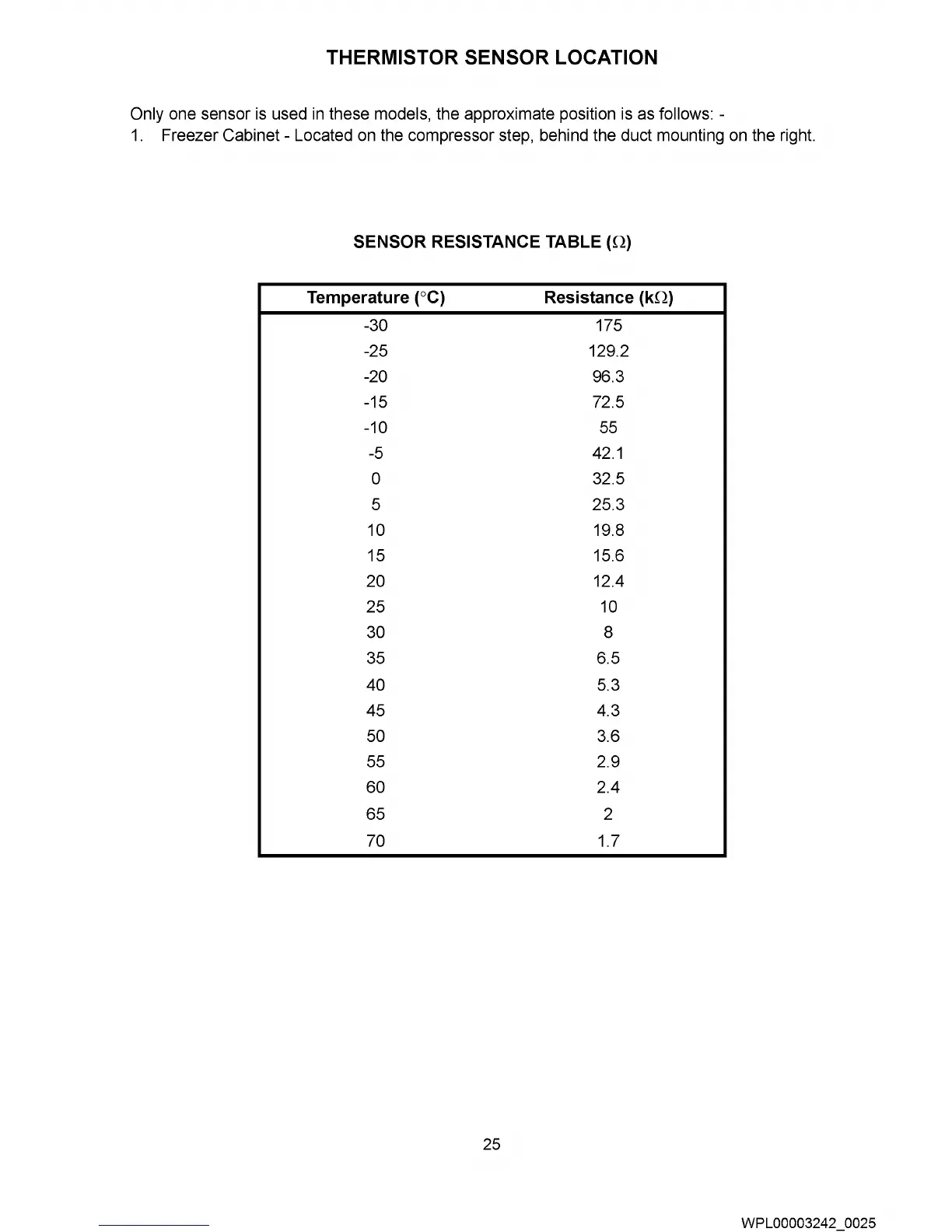

THERMISTOR SENSOR LOCATION
Only one sensor is used in these models, the approximate position is as follows: -
1. Freezer Cabinet - Located on the compressor step, behind the duct mounting on the right.
SENSOR RESISTANCE TABLE (Q)
Temperature (°C) Resistance (kn)
-30 175
-25 129.2
-20 96.3
-15 72.5
-10 55
-5 42.1
0 32.5
5 25.3
10 19.8
15 15.6
20 12.4
25 10
30 8
35 6.5
40 5.3
45 4.3
50 3.6
55 2.9
60 2.4
65 2
70 1.7
