Hotsy 871SS - Burner Assembly Parts List

97-6642 • HOTSY 781SS, 871SS, 921SS • REV. 7/06
OPERATOR’S MANUAL
PRESSURE WASHER
20
BURNER ASSEMBLY
ITEM PART NO. DESCRIPTION QTY
1 616027 Burner 1
2 698023 Nipple 3/8" x 1/4" Hose 1
3 851080 Fuel Filter 1
4 615279 Reducer Bushing 3/8" x 1/4" 1
5 698200 Pipe Nipple 1/4" x 2-1/2" 1
6 823988 Clamp 2
7 698019 Nipple 1/8" x 1/4" Hose 1
8 900650 Nozzle, 1.50, 90° 1
9
REPLACEMENT PARTS
875490  Filter Element 1
723369 Solenoid 1
661413 Electrodes 1
830492 Fuel Pump 1
676894 Fuel Line 1
783813  Motor 1
630730  Coupling 1
676640  Blower Fan 1
 Not Shown
Electrode Settings

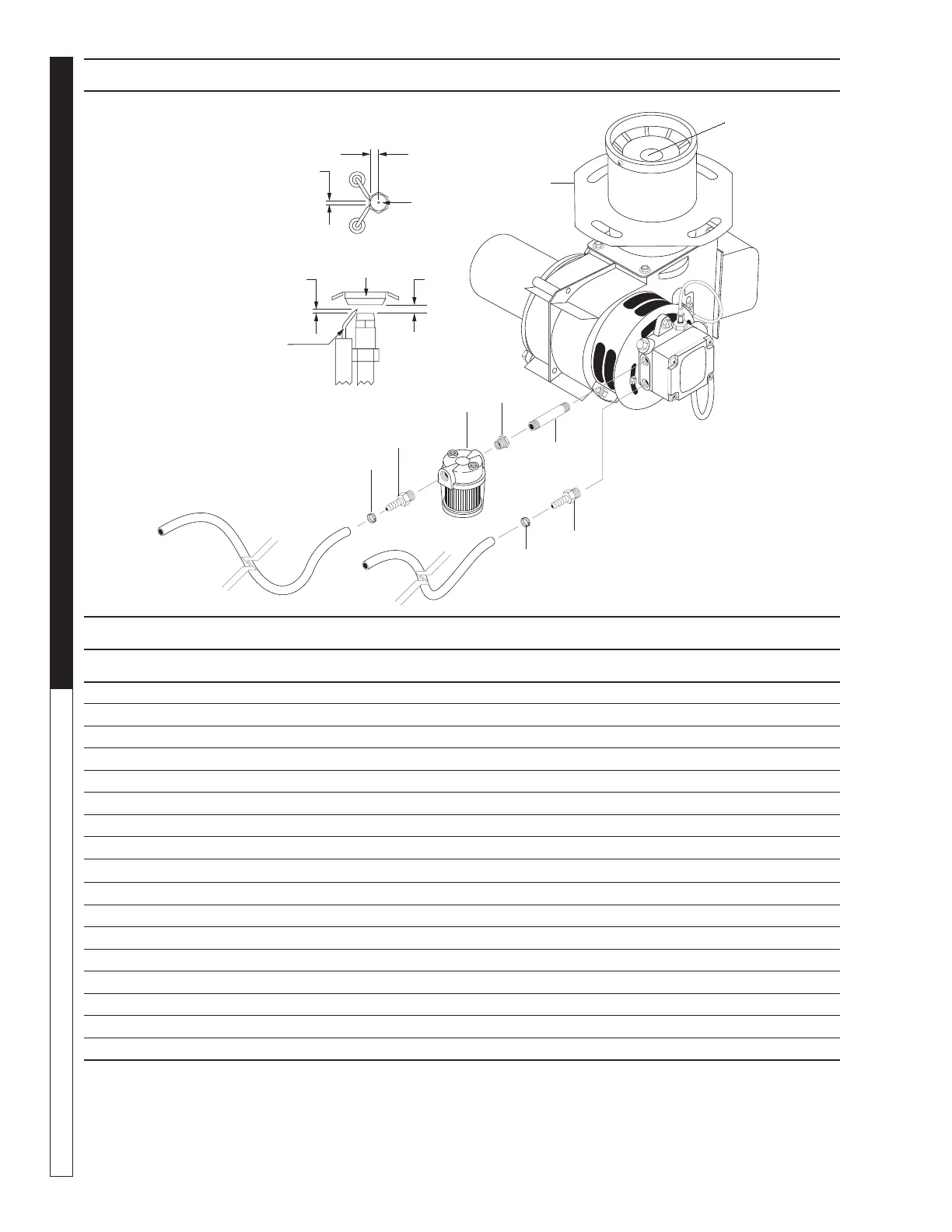

BURNER ASSEMBLY PARTS LIST
6
1/8"
Air Cone
8
5/16"
3/16"
1/4"
2
6
1
5
4
3
7
Nozzle
Electrodes (2)
To Fuel Tank
To Fuel Tank
