Hotsy 871SS - Assembly Instructions

97-6642 • HOTSY 781SS, 871SS, 921SS • REV. 7/06
7
PRESSURE WASHER
OPERATOR’S MANUAL
ASSEMBLY INSTRUCTIONS
Unpacking
Unpack carefully. Wear safety glasses or goggles while
unpacking, assembling, or operating pressure washer.
If there are missing components or hidden damage,
immediately contact carrier concerning discrepancies.
1. Cut strapping band from pressure washer and pal-
let.
2. Remove pressure washer from pallet.
Parts Included
• Pressure Washer
• Pressure Hose
• Wand
• Operating Instructions and Parts Manual
• Gasoline Engine Manual
• Parts Bag Containing:

Pressure Nozzles (3 Ea.)

Quick Disconnects (2 Ea.)

Quick Disconnect Plug

Trigger Gun
Tools Required
• 8" Adjustable Wrench
• Teflon Tape
• Flat Blade Screwdriver
Pressure Hose, Trigger Gun and Wand
1. When assembling, use teflon tape on all threaded
plumbing connections to prevent leakage.
2. Install the pressure hose on the pressure washer as
shown in Figure 1.
3. Assemble wand components as shown in Figure 2.
NOTE: The pressure nozzle is not to be installed at
this time.
4. Make sure all plumbing connections are tight.

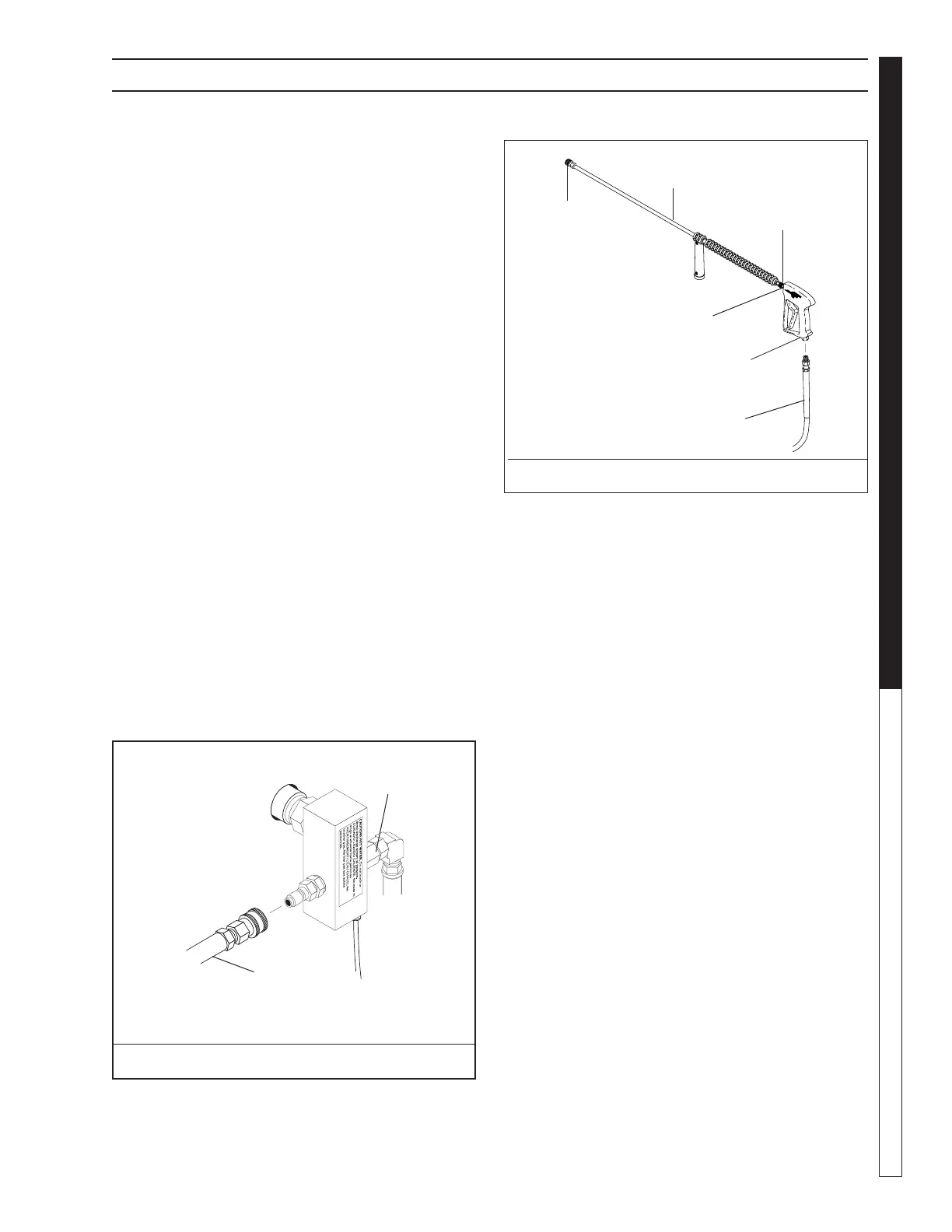

Figure 1 - Pressure Hose Installation
Coil Outlet
Trigger
Gun
Quick
Disconnect
Quick
Disconnect
Wand
Quick Disconnect Plug
Pressure
Hose
Figure 2 - Wand Component Installation
Pressure Hose
Rupture Disk
