97-6642 • HOTSY 781SS, 871SS, 921SS • REV. 7/06
OPERATOR’S MANUAL
PRESSURE WASHER
24
VBA35 UNLOADER PARTS LIST
#5-3329 VBA35
ITEM PART # DESCRIPTION KIT QTY
16 70-110207 Poppet B 1
17 70-140802 Seal Washer 3/8 2
18 70-180004 Hollow Bolt, 3/8 1
19 70-180008 Hollow Bolt 1/2 1
20 70-140803 Seal Washer 1/2 2
21 70-120212 Plate C 1
22 70-090037 Spring C 1
23 70-180304 Set Screw 1
24 70-030209 Nut 1
25 70-090520 Brass Handle 1
Kit A 70-262813 O-Ring Repair Kit
Kit B 70-262814 Outlet Kit
Kit C 70-262815 Stem Repair Kit

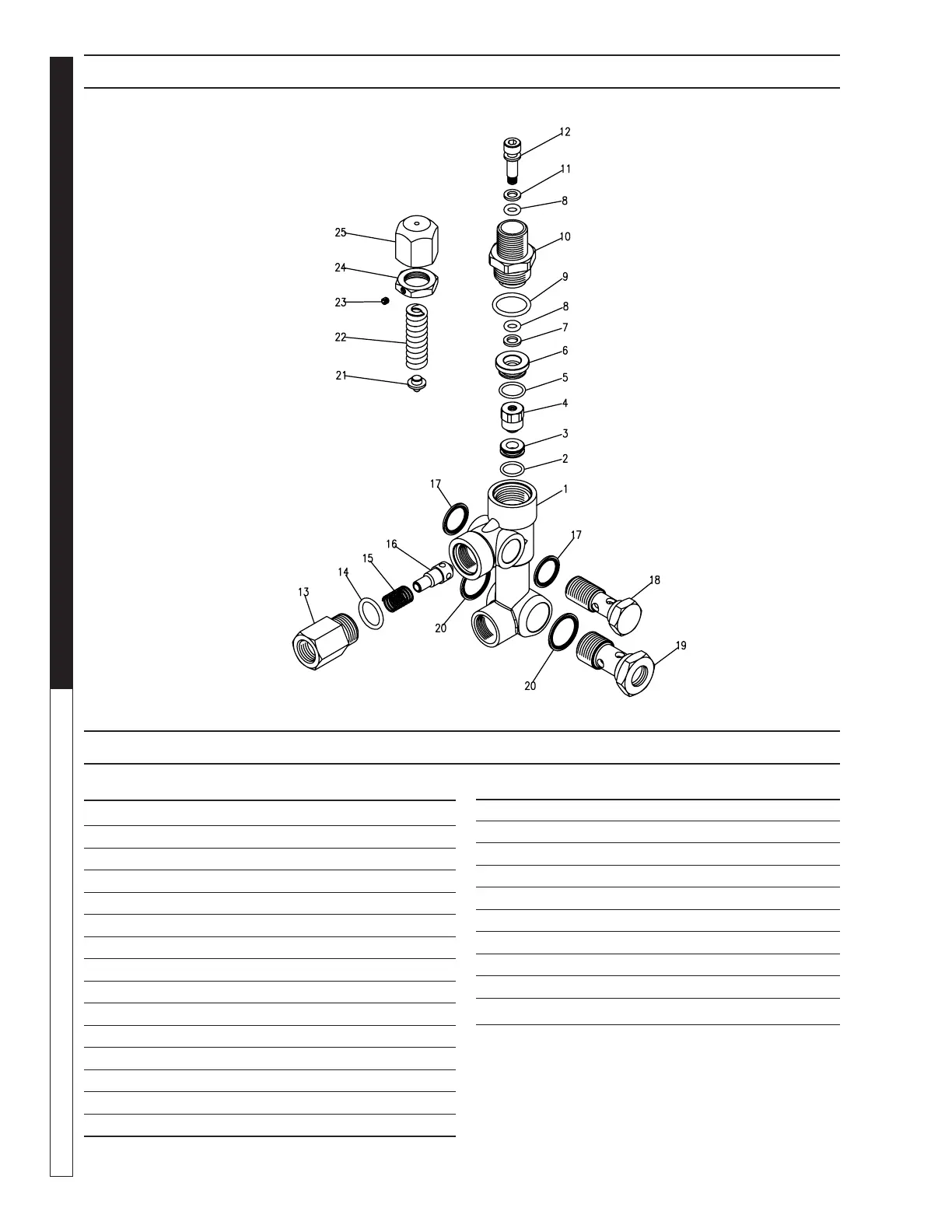

VBA35 UNLOADER EXPLODED VIEW
ITEM PART # DESCRIPTION KIT QTY
1 70-020452 Body Valve 1
2 70-060141 O-Ring A, C 1
3 70-150316 Seat C 1
4 70-450401 Ball, Sub-assy C 1
5 70-060114 O-Ring A 1
6 70-010111 Guide Bushing 1
7 70-000919 Teflon Ring A 1
8 70-060170 O-Ring A 2
9 70-060162 O-Ring A 1
10 70-140734 Connector 1
11 70-000918 Teflon Ring A 1
12 70-120611 Stem C 1
13 70-140702 Connector, Female 1
14 70-060119 O-Ring A, B 1
15 70-090004 Spring B 1
