Hotsy 871SS - Pump Assembly - 781 SS

97-6642 • HOTSY 781SS, 871SS, 921SS • REV. 7/06
25
PRESSURE WASHER
OPERATOR’S MANUAL

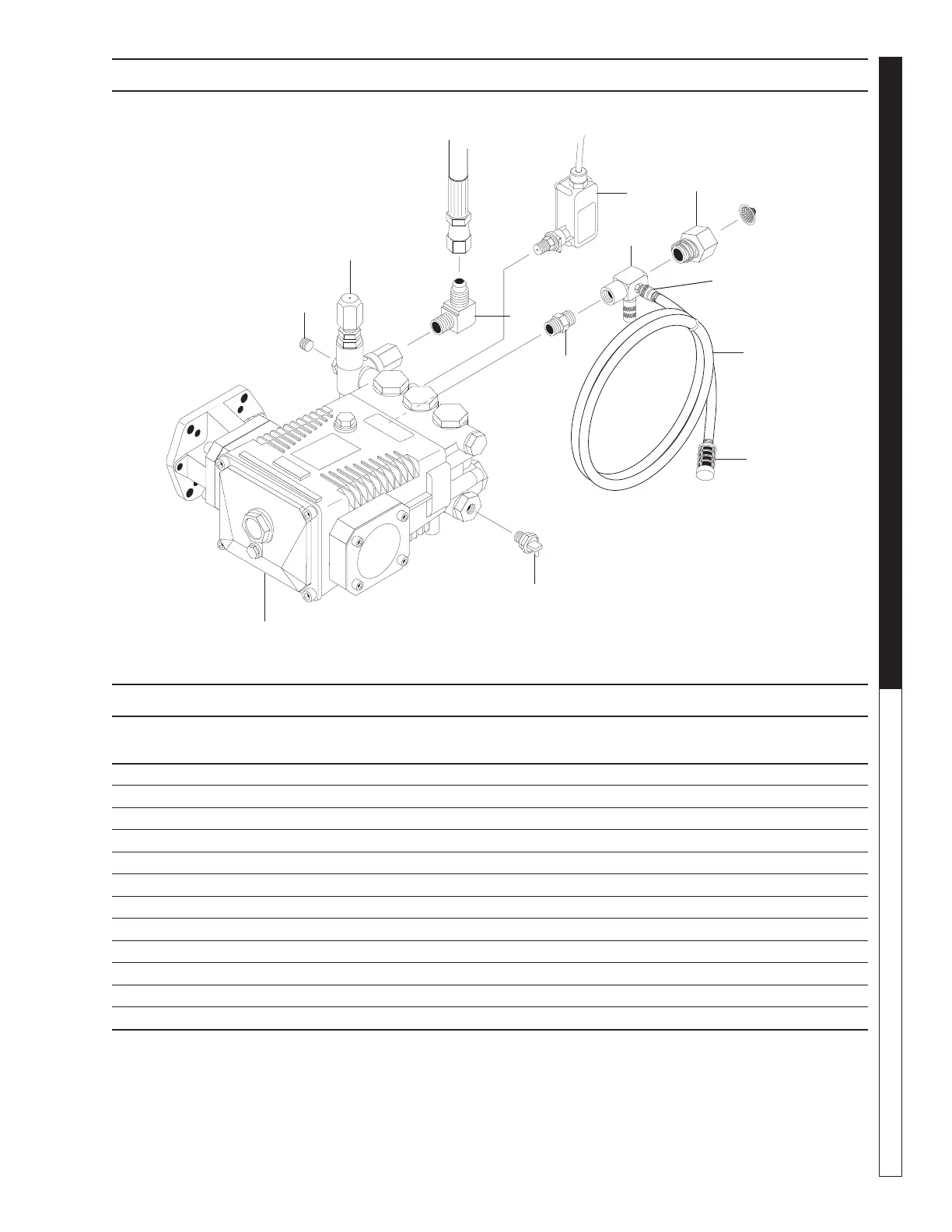

PUMP ASSEMBLY - 781SS
PUMP PARTS LIST - 781SS
11
2
10
12
4
9
8
7
5
6
1
ITEM PART NO. DESCRIPTION QTY
1 5-1250 Pump, Hotsy HG2530G 2.5 @ 3000 PSI 1
2 5-3329 Unloader, VBA 35, 6.6 @ 6000 PSI 1
3 921422 Pump, Protector, 1/2" PTP 1
4 722774 Nipple, 1/2" x 3/8", Pipe 1
5 873596 Injector, Adjustable, Inlet 1
6 961534 Hose, 1/4" x 1/2" Braided Vinyl 4 ft.
7 935159 Strainer, Chemical w/1/4" Brass Barb 1
8 823989 Clamp, Hose, UNI .40-.48ST 1
9 801126 Swivel, 3/8" MP x 3/4" GHF w/Strainer 1
10 661357 Elbow, 1/2" JIC, 3/8", 90° 1
11 6-021720 Switch, Pressure 1
12 830302 Plug, 1/4" Countersunk 1
