PUMP PARTS LIST - 921SS
ITEM PART NO. DESCRIPTION QTY
1 5-1255 Pump, Hotsy HG3035GI 3 @ 3500 PSI 1
2 5-3329 Unloader, VBA 35, 6.6 @ 6000 PSI 1
3 921422 Pump, Protector, 1/2" PTP 1
4 722774 Nipple, 1/2" x 3/8", Pipe 1
5 873596 Injector, Adjustable, Inlet 1
6 961534 Hose, 1/4" x 1/2" Braided Vinyl 4 ft.
7 935159 Strainer, Chemical w/1/4" Brass Barb 1
8 823989 Clamp, Hose, UNI .40-.48ST 1
9 801126 Swivel, 3/8" MP x 3/4" GHF w/Strainer 1
10 661357 Elbow, 1/2" JIC, 3/8", 90° 1
11 6-021720 Switch, Pressure 1
12 95-07101128 Rail, Pump Support 1
13 703146 Nut 3/8", OSNA, NC (921SS) 1
14 780452 Washer, 5/16" Flat, SAE (921SS) 2
15 615532 Bolt, 8 mm x 16 mm HEX Head (921SS) 2
16 612951 Bolt, 3/8" x 1-1/4", NC HH (921SS) 1
17 936438 Washer, 3/8" x 1" Steel (921SS) 1
18 615527 Pad Soft Rubber (921SS) 1

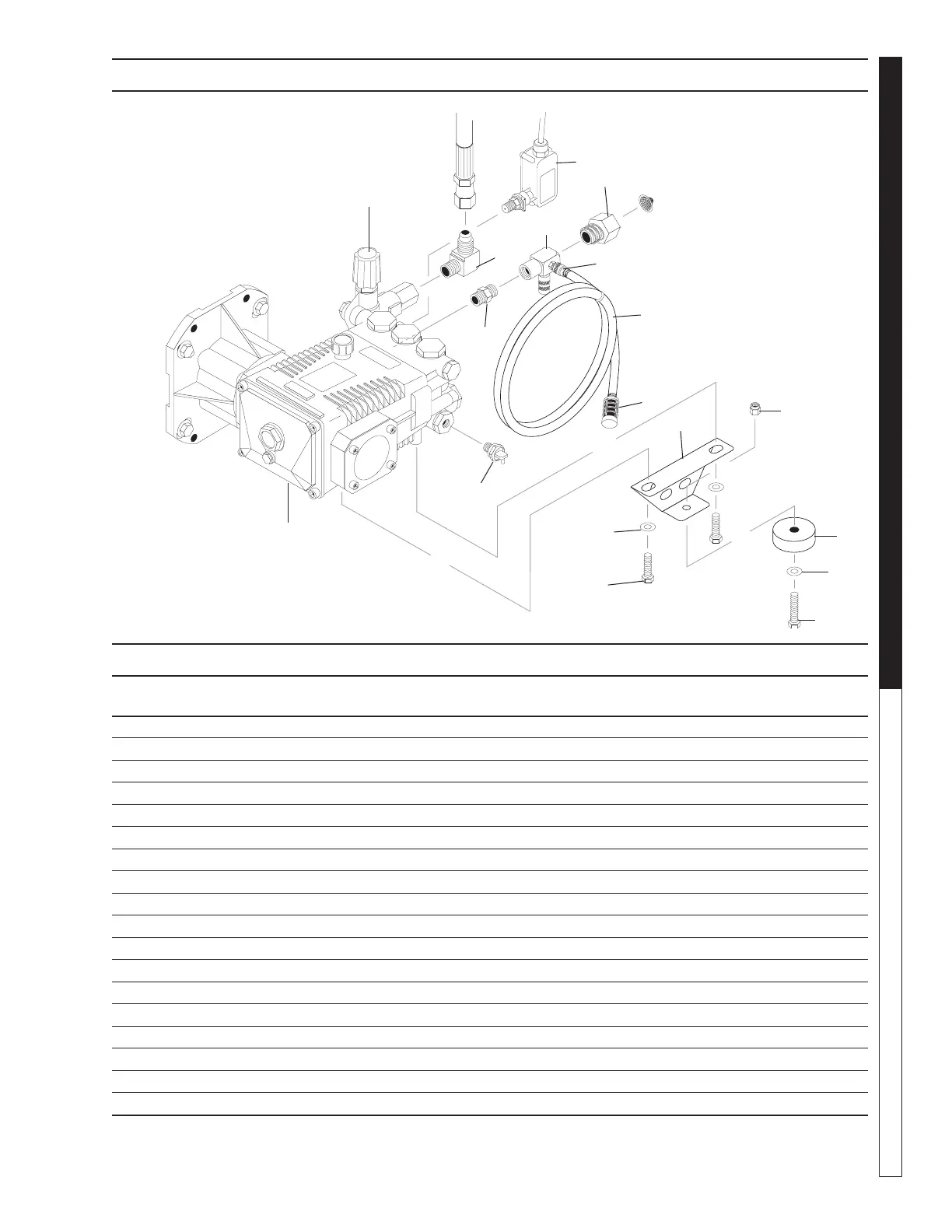

PUMP ASSEMBLY - 921SS
1
10
5
4
2
3
9
8
7
6
18
11
14
17
16
13
15
12
