Arm Angle Adjustments
The seat arms have angle adjustments to suit your driving and
comfort requirements.
To adjust the arm angle on the seat arms, lift the arm and locate the
adjustment bolt near the pivot point. Refer to Figure 4D below.
Use the supplied 1/4 inch hex wrench to make the adjustment. Turn the
screw clockwise to lower the arm and counterclockwise to raise the arm.
D82008753R 10/15 Chapter 4 29
3" Max
T-Wrench
Figure 4E
Controller Position Adjustment
You can adjust the position of the controller by lifting the arm and
loosening the socket head cap screw closest to the controller
(Figure 4E, below).
Slide the controller bracket to a comfortable position and secure the
screw. Make sure the screw is clear of the removal key opening (see
Figure 7B, page 44) in the bracket before tightening.

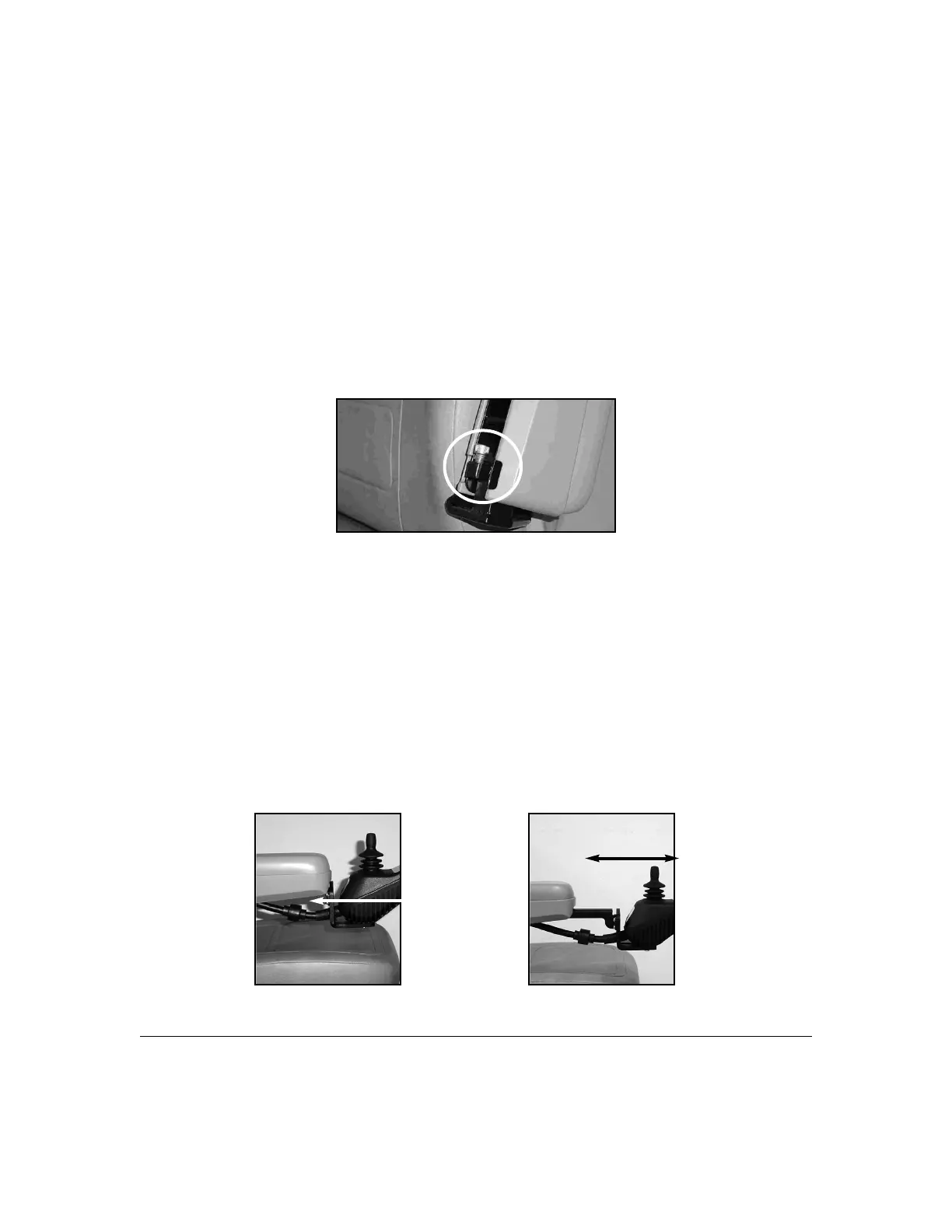

Figure 4D
