Footplate Angle Adjustment
The footplate angle can be adjusted for comfort.
1. Raise the footplate and locate the adjustment bolts on the bottom of
the footplate (Figure 4M).
2. Using the 1/4 inch hex wrench supplied with the chair, turn the screws
on each side of the footplate. Turn left to increase the angle and
right to decrease the angle.
3. Lower footplate. The bolt heads should come in contact with the
stop (caster wheel bracket Figure 4 N)

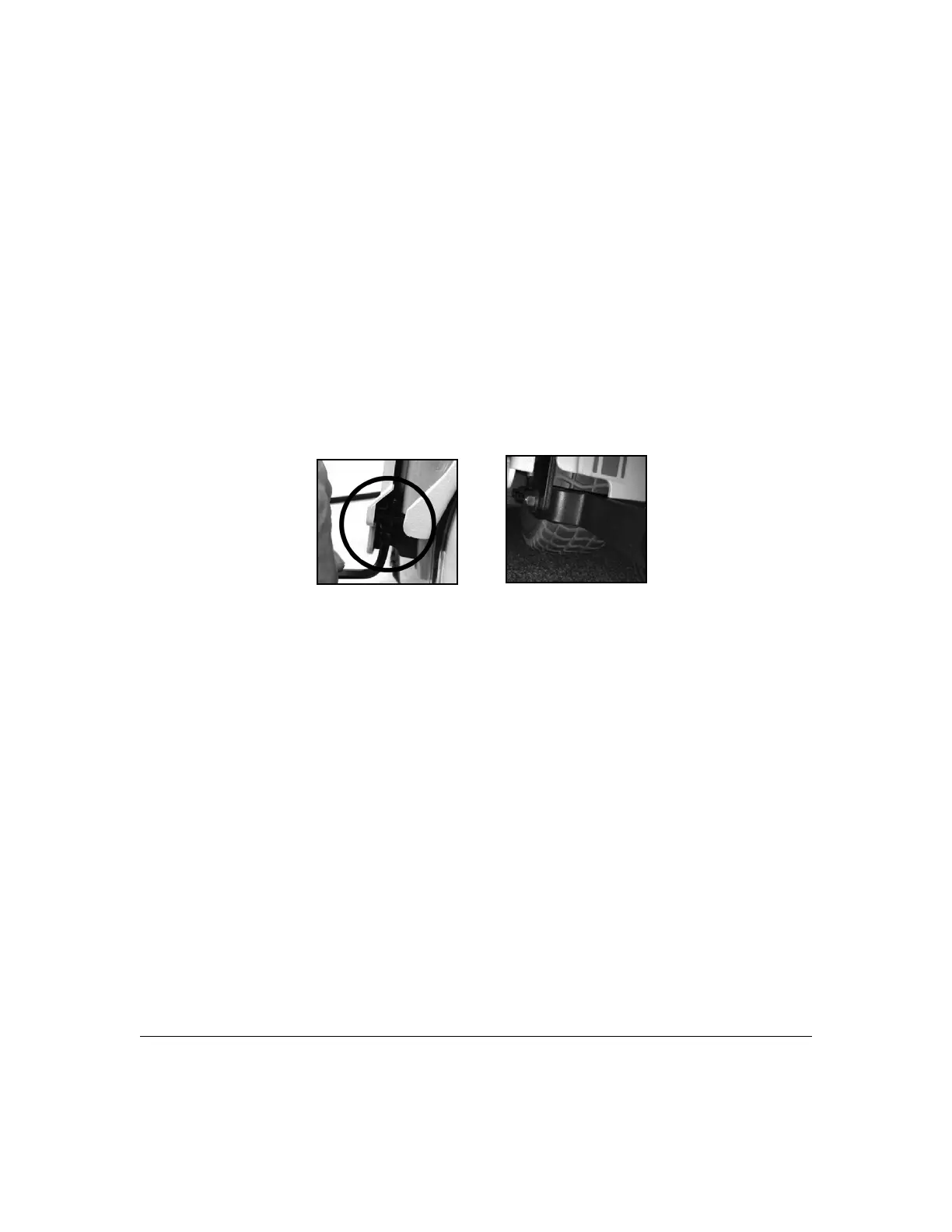

Figure 4M
Figure 4N
If the footplate does not remain upright, the footplate tension requires
adjustment. Contact Hoveround
®
Technical support at 1-800-96-HOVER
(1-800-964-6837), immediately.
