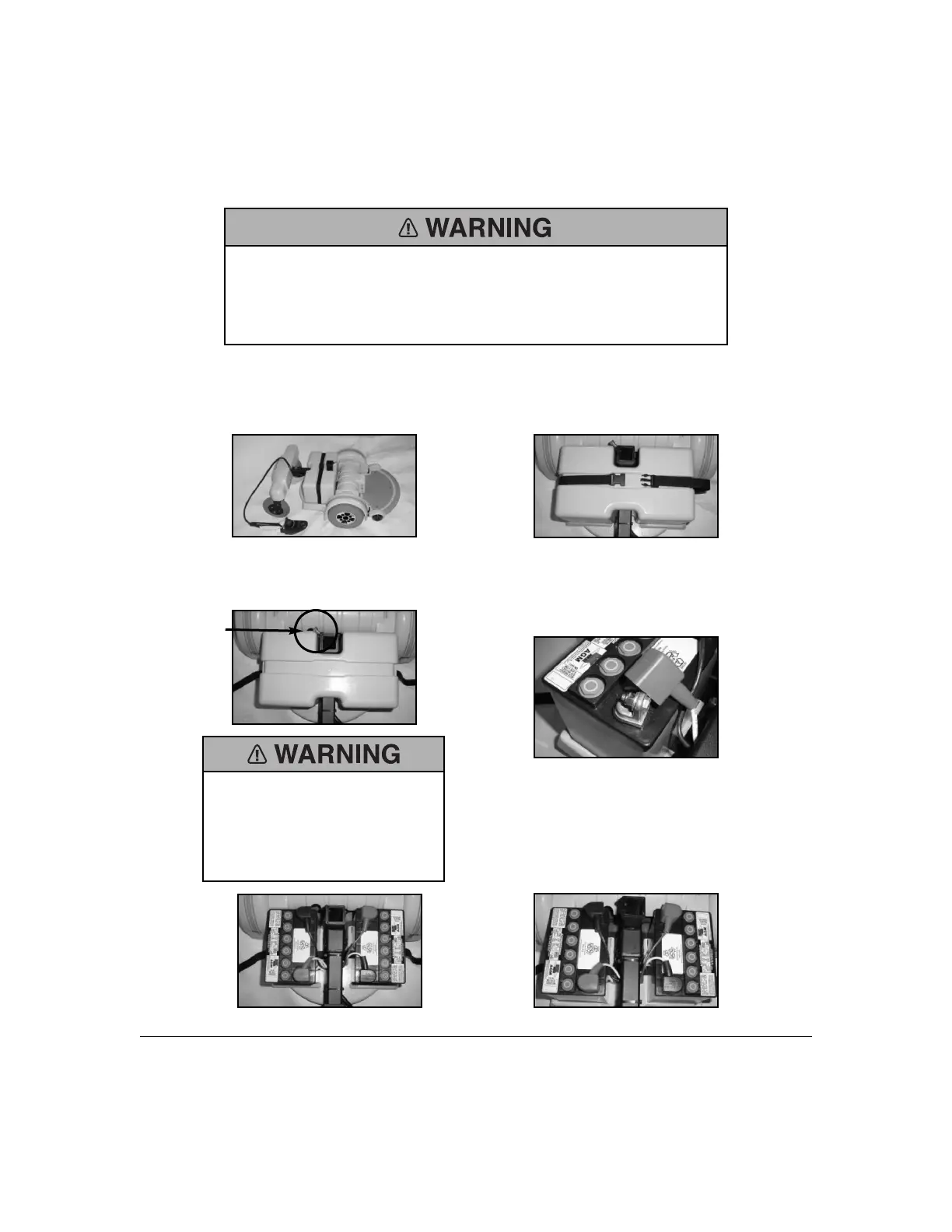

Battery Removal/Replacement MPV5
®
S/N 5800000+
D82008753R 10/15 Chapter 7 47
Replacement
1.) Reverse the steps to install the
batteries, making sure wires are
connected properly, all hardware
is tight, and battery boot covers
are properly installed.
Post
Screw
1.) Remove seat assembly
from base.
2.) Remove strap from
battery cover.
Removal
3.) Carefully remove post
screw and remove cover.
4.) Carefully remove one protective
cap and disconnect each of the
battery wires one at a time from
each battery. Remove batteries.
Turn the joystick off before attempting to remove the batteries.
To prevent short circuit, fire or other hazards, prevent contact
between the battery terminals and any surface that may
cause a short, spark or other hazard.
Remove the fuse from the
holder to reduce possibility
of shorting, before attempting
to disconnect battery
terminals.
To Next Page
