Chapter 9
Disassembling and Reassembling Your Teknique
®
D82007778Q 09/15 Chapter 9 45
Keyhole
Cap Screw
Controller Removal/Replacement
Removal
1. Check that vehicle power is OFF.
2. Lift the arm and loosen the sockethead cap screw closest to the
controller. Use the 1/4 inch hex wrench supplied with your chair
(See Figure 9A below).
3. Slide the controller bracket forward until it hits the keyhole. (See Figure
9B below). Remove bracket from arm and place on footrest or other
safe location. Unlock cable from seat or frame (if so equipped).

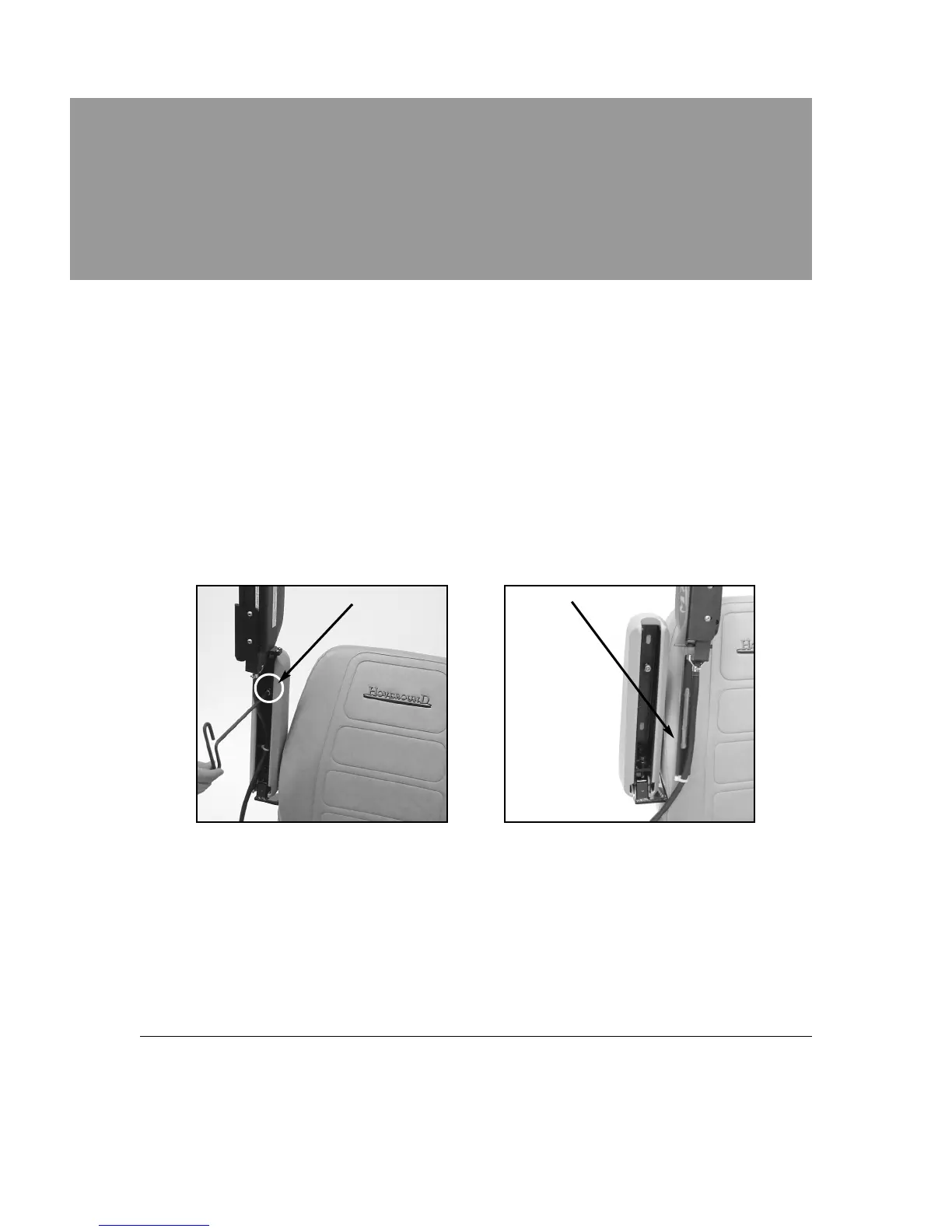

Figure 9A
Figure 9B
Replacement
1. Loosen forward socket head cap screw.
2. Position keyhole portion of bracket over screw and slide into place.
3. Position controller in a comfortable position and secure screw.
4. Refasten controller cable (if so equipped).
