HP Compaq 8510p - Compaq Business Notebook User Manual

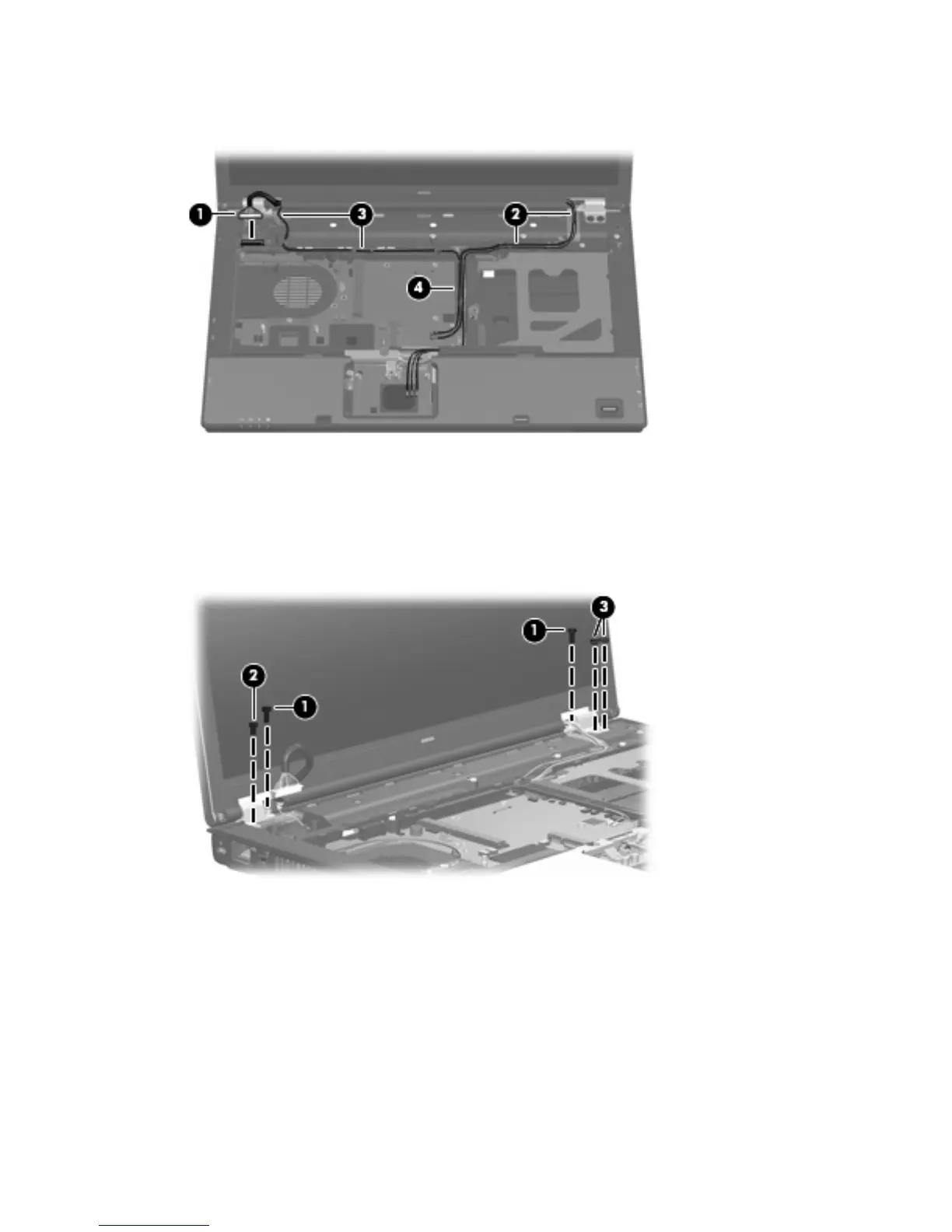

2. Remove the wireless antenna cables from the clips (2) and (3) and routing channels (4) built into
the top cover.
3. Remove the following screws:
(1) Two Torx T8M2.5×9.0 screws
(2) One Phillips PM2.5×4.0 screw
(3) Two Phillips PM2.0×2.0 screws
4. Position the computer with the rear panel toward you.
5. Remove the four Torx T8M2.5×9.0 screws (1) that secure the display assembly to the computer.
76 Chapter 4 Removal and replacement procedures

HP Compaq 8510p - Compaq Business Notebook Specifications

General

RAM	Up to 4 GB DDR2
Processor	Intel Core 2 Duo
Display	15.4-inch
Storage	80GB, 120GB, 160GB HDD
Graphics	ATI Mobility Radeon HD 2600
Operating System	Windows Vista
Weight	2.8 kg (6.2 lbs)
Battery	6-cell Li-Ion
Chipset	Intel PM965
Optical Drive	DVD+/-RW SuperMulti
Networking	Gigabit Ethernet
Audio	Integrated stereo speakers
Ports	3 USB 2.0, VGA, headphone, microphone
Slots	ExpressCard/54
