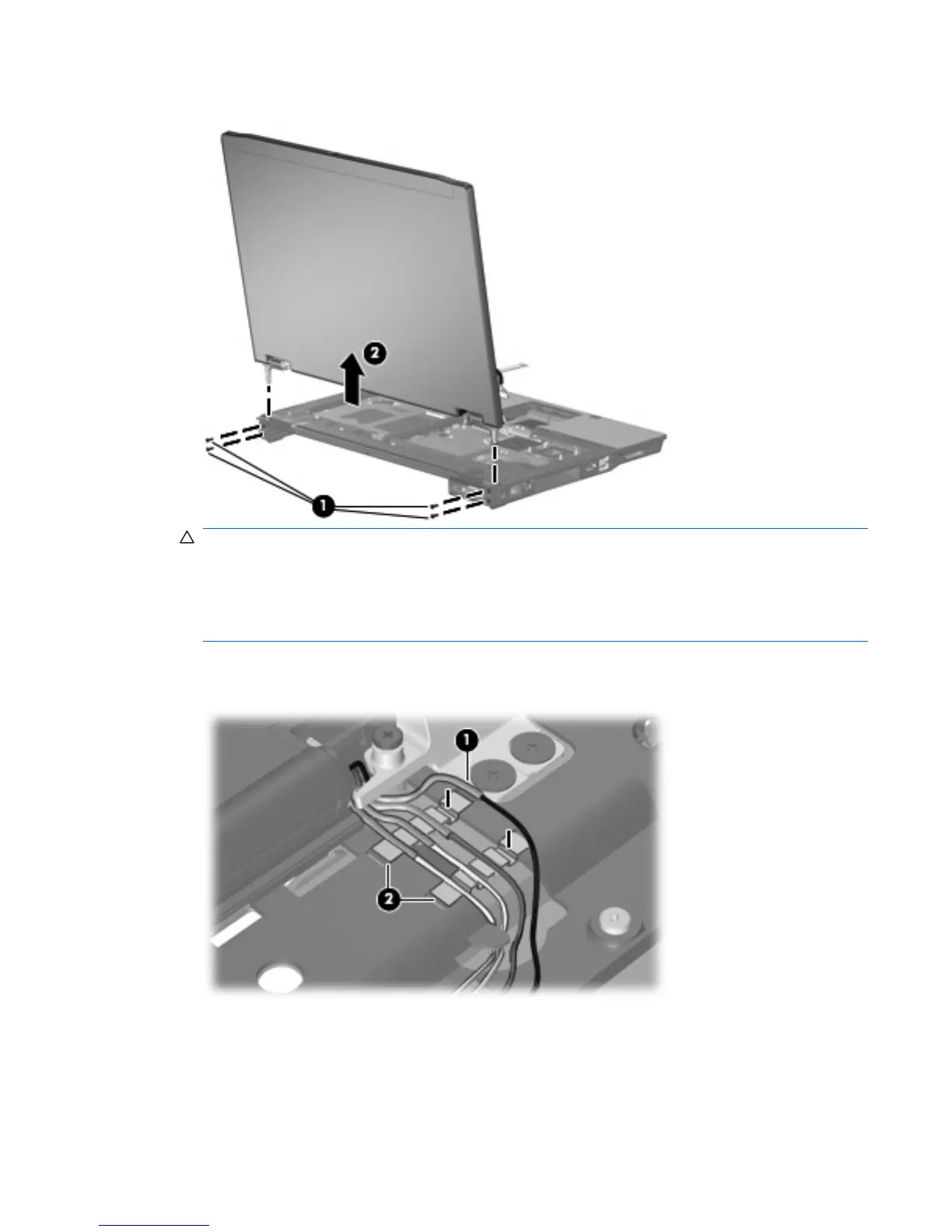

6. Lift the display assembly (2) straight up and remove it.
CAUTION: When installing the display assembly, be sure that the 4 wireless antenna cables
routed out of the display right hinge are routed and arranged properly. Each antenna cable has an
exposed section of cable and a metallic grounding sleeve (1). The grounding sleeve must
completely cover the exposed section of cable. Each cable must be secured inside a space in the
copper grounding clip (2). Left to right, the cables must be installed in a white, yellow, red, black
sequence.
Failure to follow these routing instructions can result in degradation of the computer's WLAN and
WWAN performance.
Component replacement procedures 77

HP Compaq 8510p - Compaq Business Notebook Specifications

General

RAM	Up to 4 GB DDR2
Processor	Intel Core 2 Duo
Display	15.4-inch
Storage	80GB, 120GB, 160GB HDD
Graphics	ATI Mobility Radeon HD 2600
Operating System	Windows Vista
Weight	2.8 kg (6.2 lbs)
Battery	6-cell Li-Ion
Chipset	Intel PM965
Optical Drive	DVD+/-RW SuperMulti
Networking	Gigabit Ethernet
Audio	Integrated stereo speakers
Ports	3 USB 2.0, VGA, headphone, microphone
Slots	ExpressCard/54
