HP Compaq V3000 User Manual

5–8 Maintenance and Service Guide
Removal and Replacement Procedures

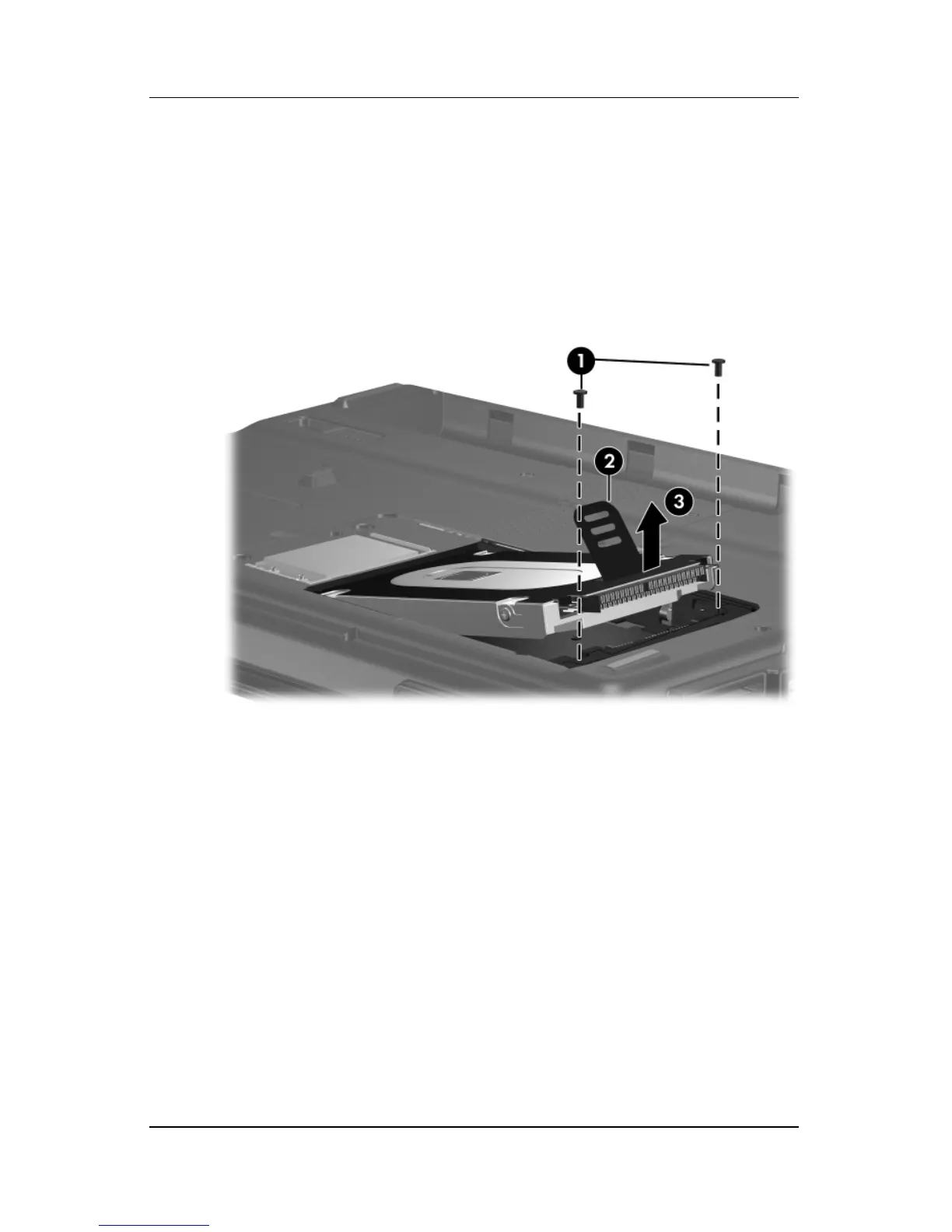

5. Remove the two black Phillips PM2.5×5.0 screws 1 that
secure the hard drive to the computer.
6. Use the mylar tab 2 to lift the hard drive 3 until it
disconnects from the computer.
7. Remove the hard drive from the hard drive bay.
Removing the Hard Drive

HP Compaq V3000 Specifications

General

Graphics	Intel Graphics Media Accelerator 950
Display	14.1-inch WXGA (1280 x 800) TFT LCD
Hard Drive	120 GB SATA (5400 rpm)
Optical Drive	DVD±RW DL LightScribe
Wireless	802.11a/b/g
Operating System	Windows XP Professional
Weight	2.3 kg (5.07 lbs)
Battery	6-cell Lithium-Ion
CPU	Intel Core 2 Duo
