Removal and Replacement Procedures
Maintenance and Service Guide 5–9

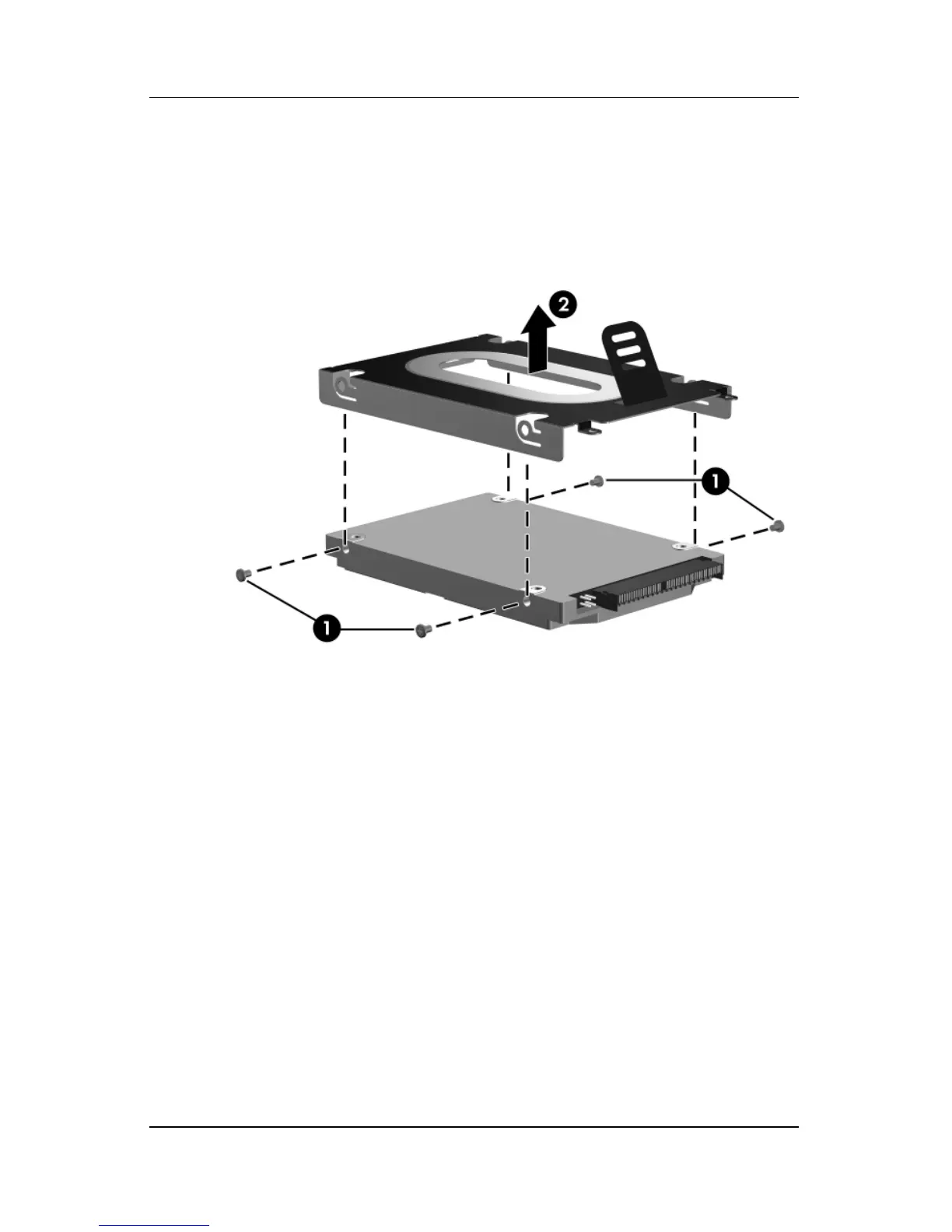

8. Remove the four Phillips PM3.0×3.0 screws 1 that secure the
hard drive frame to the hard drive.
9. Lift the frame 2 straight up to remove if from the hard drive.
Removing the Hard Drive Frame and Connector
Reverse the above procedure to install and reassemble the
hard drive.

HP Compaq V3000 Specifications

General

Graphics	Intel Graphics Media Accelerator 950
Display	14.1-inch WXGA (1280 x 800) TFT LCD
Hard Drive	120 GB SATA (5400 rpm)
Optical Drive	DVD±RW DL LightScribe
Wireless	802.11a/b/g
Operating System	Windows XP Professional
Weight	2.3 kg (5.07 lbs)
Battery	6-cell Lithium-Ion
CPU	Intel Core 2 Duo
