5–28 Maintenance and Service Guide
Removal and Replacement Procedures

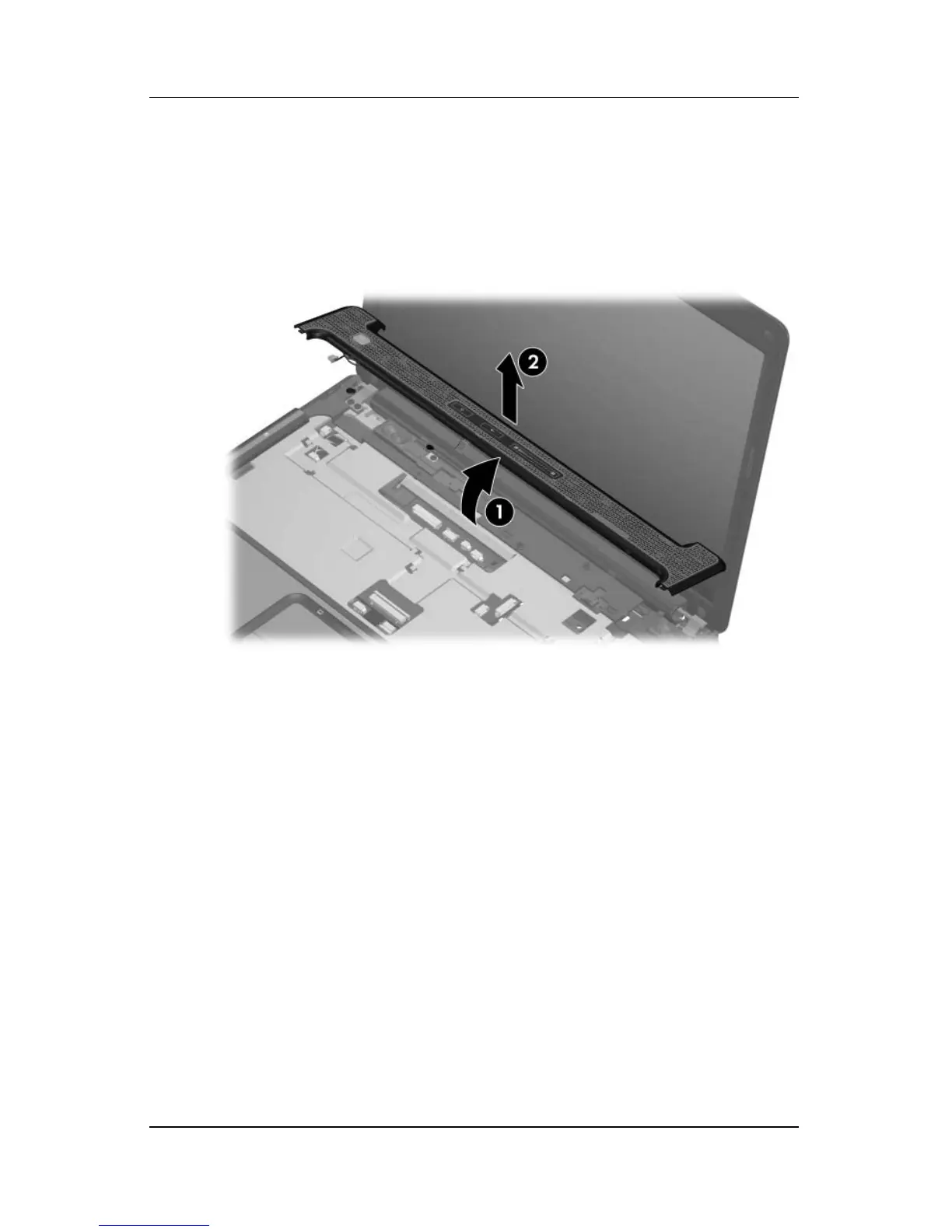

10. Lift the front edge of the switch cover 1 to disengage it from
the computer.
11. Remove the switch cover 2.
Removing the Switch Cover

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HP Compaq V3000 and is the answer not in the manual?

HP Compaq V3000 Specifications

General IconGeneral
GraphicsIntel Graphics Media Accelerator 950
Display14.1-inch WXGA (1280 x 800) TFT LCD
Hard Drive120 GB SATA (5400 rpm)
Optical DriveDVD±RW DL LightScribe
Wireless802.11a/b/g
Operating SystemWindows XP Professional
Weight2.3 kg (5.07 lbs)
Battery6-cell Lithium-Ion
CPUIntel Core 2 Duo
