HP Compaq V3000 User Manual

Removal and Replacement Procedures
Maintenance and Service Guide 5–29

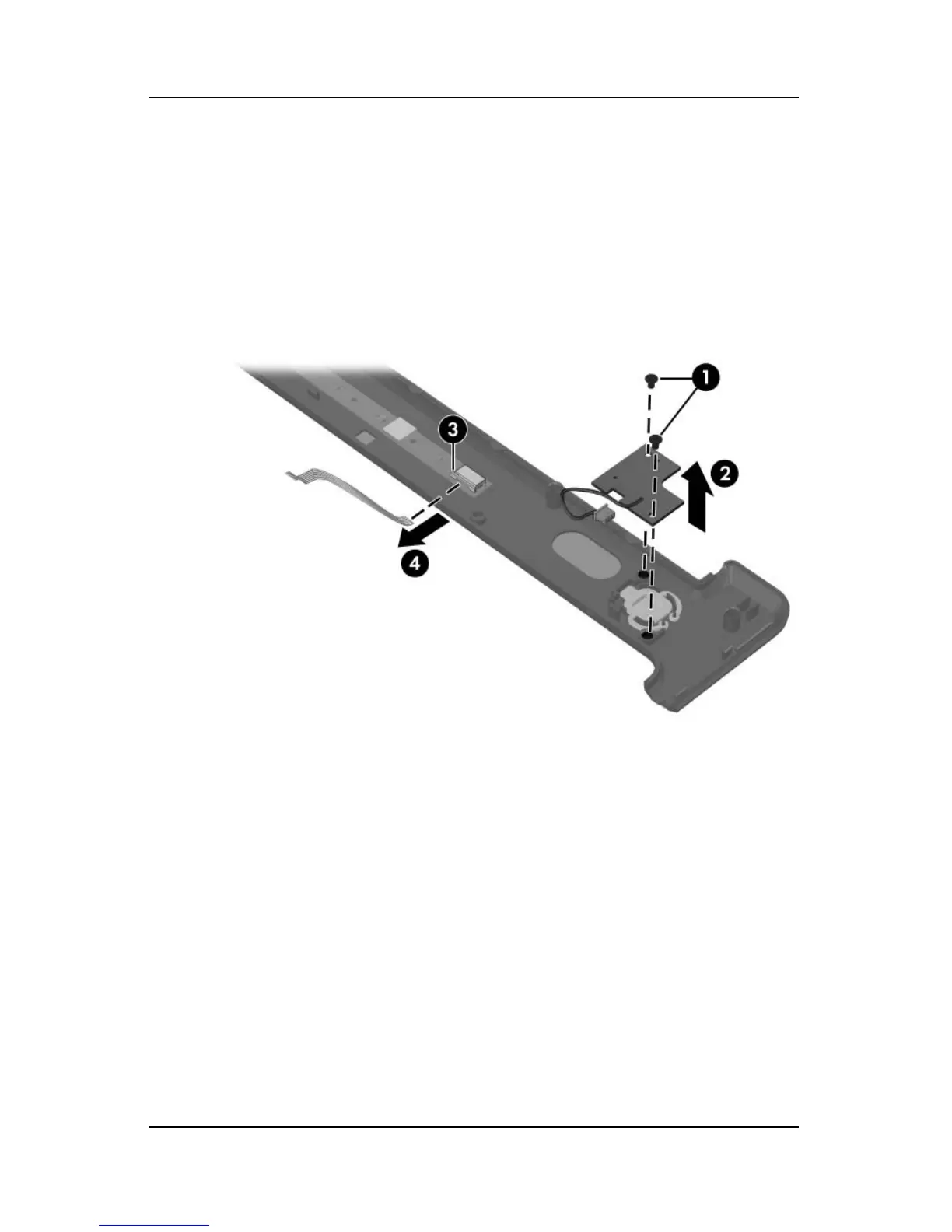

12. If it is necessary to replace the power button board, remove
the two Phillips PM2.0×3.0 screws 1 that secure the board to
the switch cover, and then remove the power button board 2.
13. If it is necessary to replace the LED board cable, release the
ZIF connector 3 to which the cable is connected and
disconnect the cable 4 from the LED board.
Removing the Power Button Board and LED Board Cable
Reverse the above procedure to install the switch cover.

HP Compaq V3000 Specifications

General

Graphics	Intel Graphics Media Accelerator 950
Display	14.1-inch WXGA (1280 x 800) TFT LCD
Hard Drive	120 GB SATA (5400 rpm)
Optical Drive	DVD±RW DL LightScribe
Wireless	802.11a/b/g
Operating System	Windows XP Professional
Weight	2.3 kg (5.07 lbs)
Battery	6-cell Lithium-Ion
CPU	Intel Core 2 Duo
