Removal and Replacement Procedures
Maintenance and Service Guide 5–65

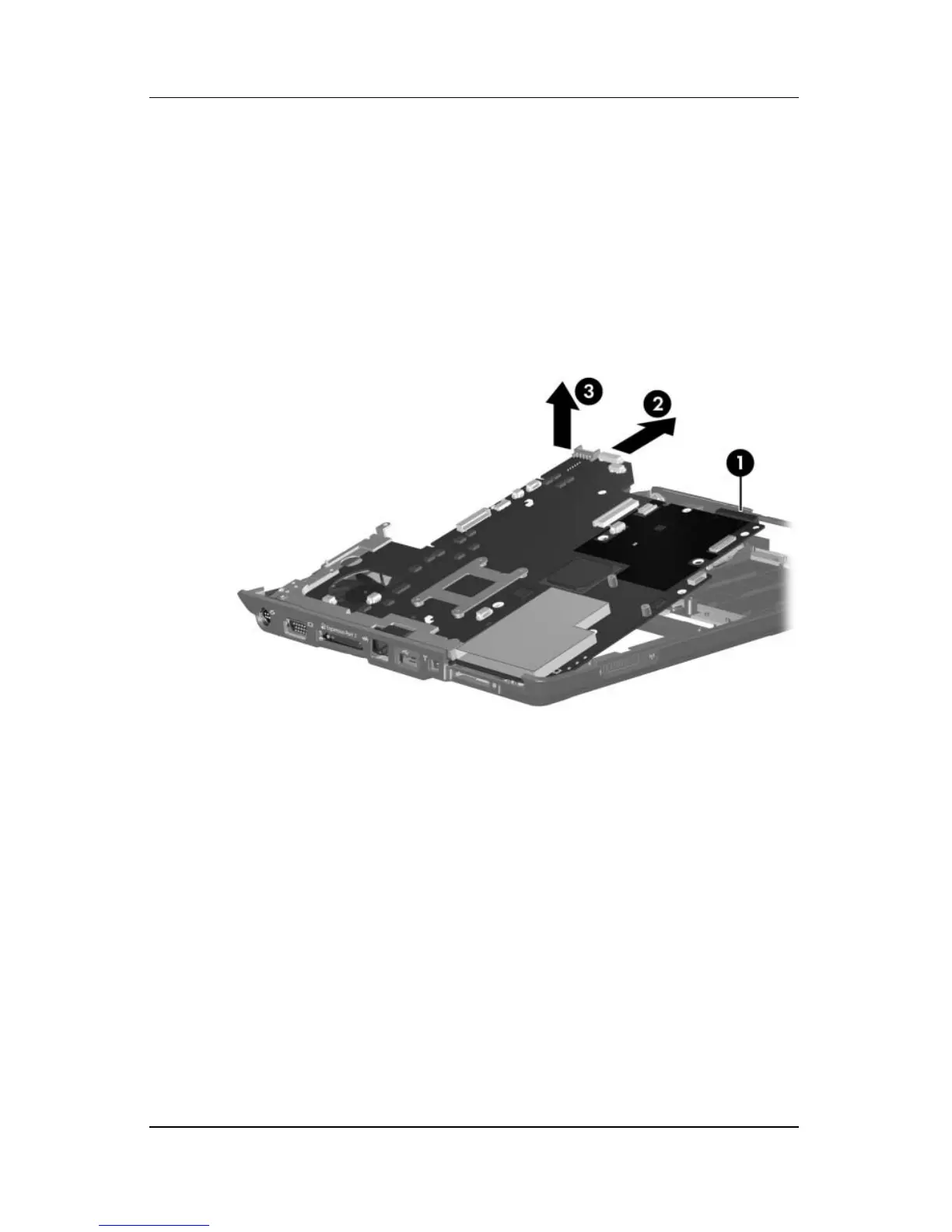

5. Use the optical drive connector 1 to lift the right side of the
system board until it rests at an angle.
6. Slide the system board 2 to the right until the connectors on
the left side of the system board disengage from the
base enclosure.
7. Remove the system board 3.
Removing the System Board
