5–66 Maintenance and Service Guide
Removal and Replacement Procedures

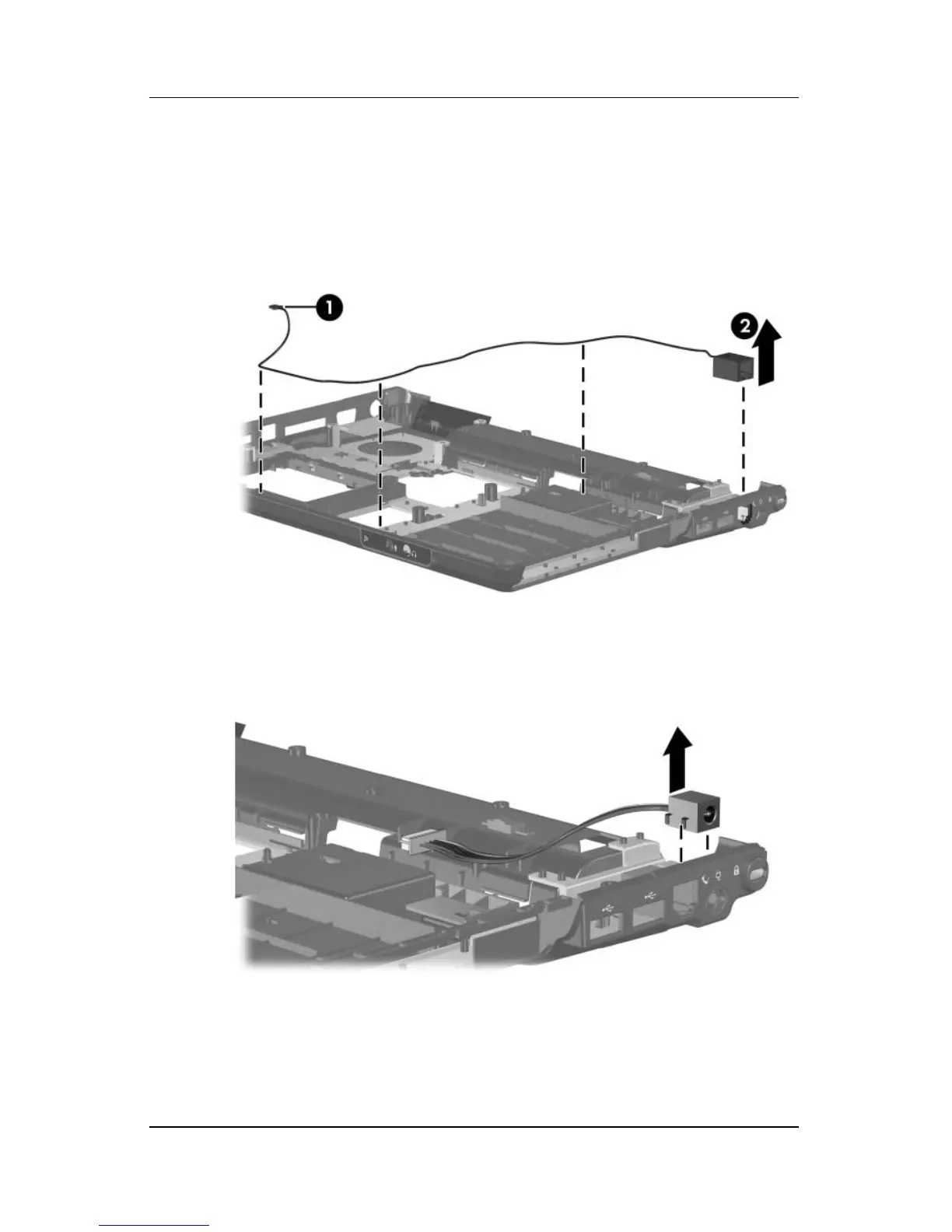

8. If it is necessary to replace the modem cable, remove the
modem cable 1 from the routing channel in the
base enclosure.
9. Remove the modem connector 2 from the clips in the
base enclosure.
Removing the Modem Cable
10. If it is necessary to replace the power connector cable, remove
the power connector from the clips in the base enclosure.
Removing the Power Connector Cable
Reverse the above procedure to install the system board, modem
cable, and power connector cable.

HP Compaq V3000 Specifications

General

Graphics	Intel Graphics Media Accelerator 950
Display	14.1-inch WXGA (1280 x 800) TFT LCD
Hard Drive	120 GB SATA (5400 rpm)
Optical Drive	DVD±RW DL LightScribe
Wireless	802.11a/b/g
Operating System	Windows XP Professional
Weight	2.3 kg (5.07 lbs)
Battery	6-cell Lithium-Ion
CPU	Intel Core 2 Duo
