5–68 Maintenance and Service Guide
Removal and Replacement Procedures

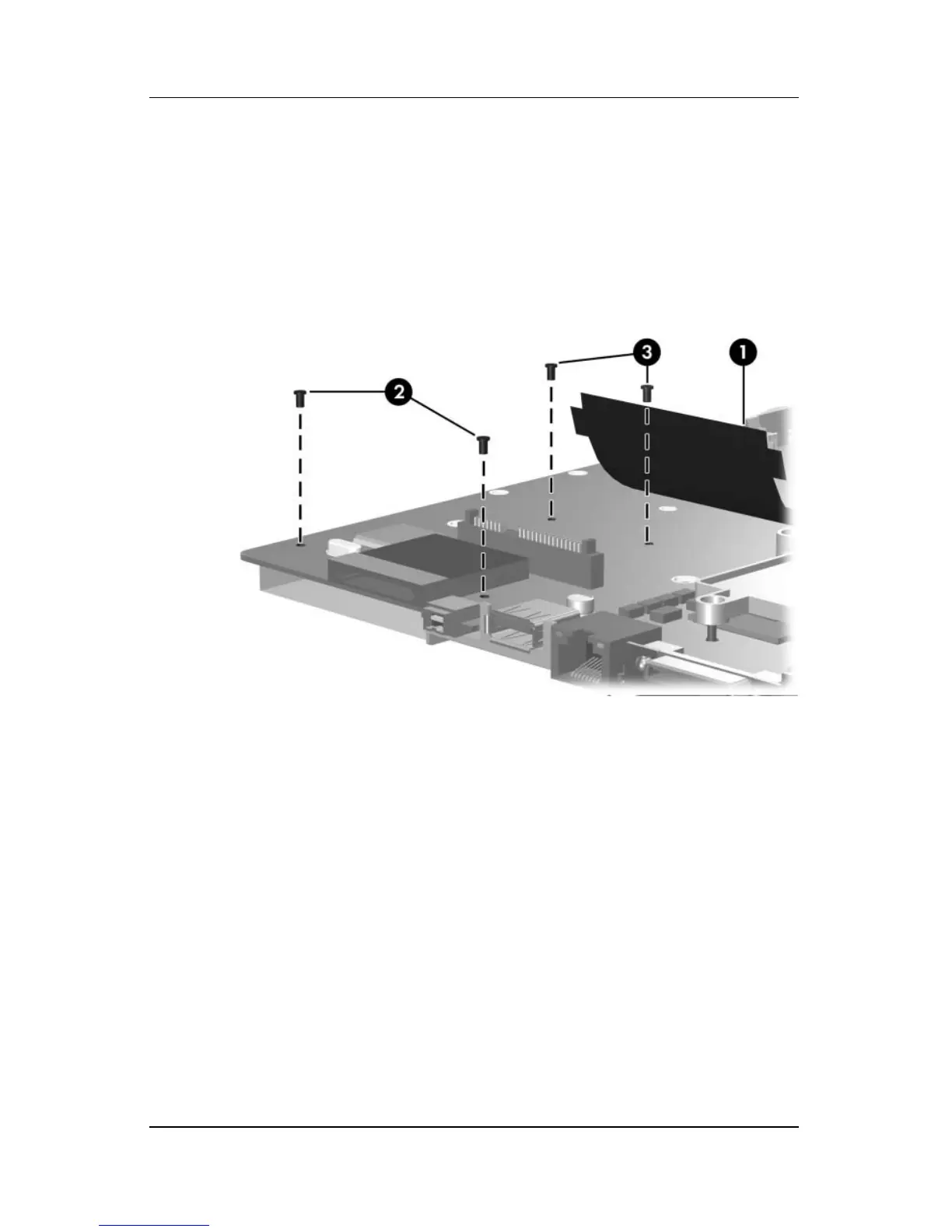

3. Lift the insulation material 1 from the system board to
expose the ExpressCard assembly rear screws.
4. Remove the two Phillips PM2.0×4.0 screws 2 and the
two Phillips PM2.0×8.0 screws 3 that secure the
ExpressCard assembly to the system board.
Removing the Fan/Heat Sink Assembly
