HP Compaq V3000 User Manual

Removal and Replacement Procedures
Maintenance and Service Guide 5–69
5. Turn the system board right-side up with the front toward you.
6. Remove the ExpressCard assembly from the system board.

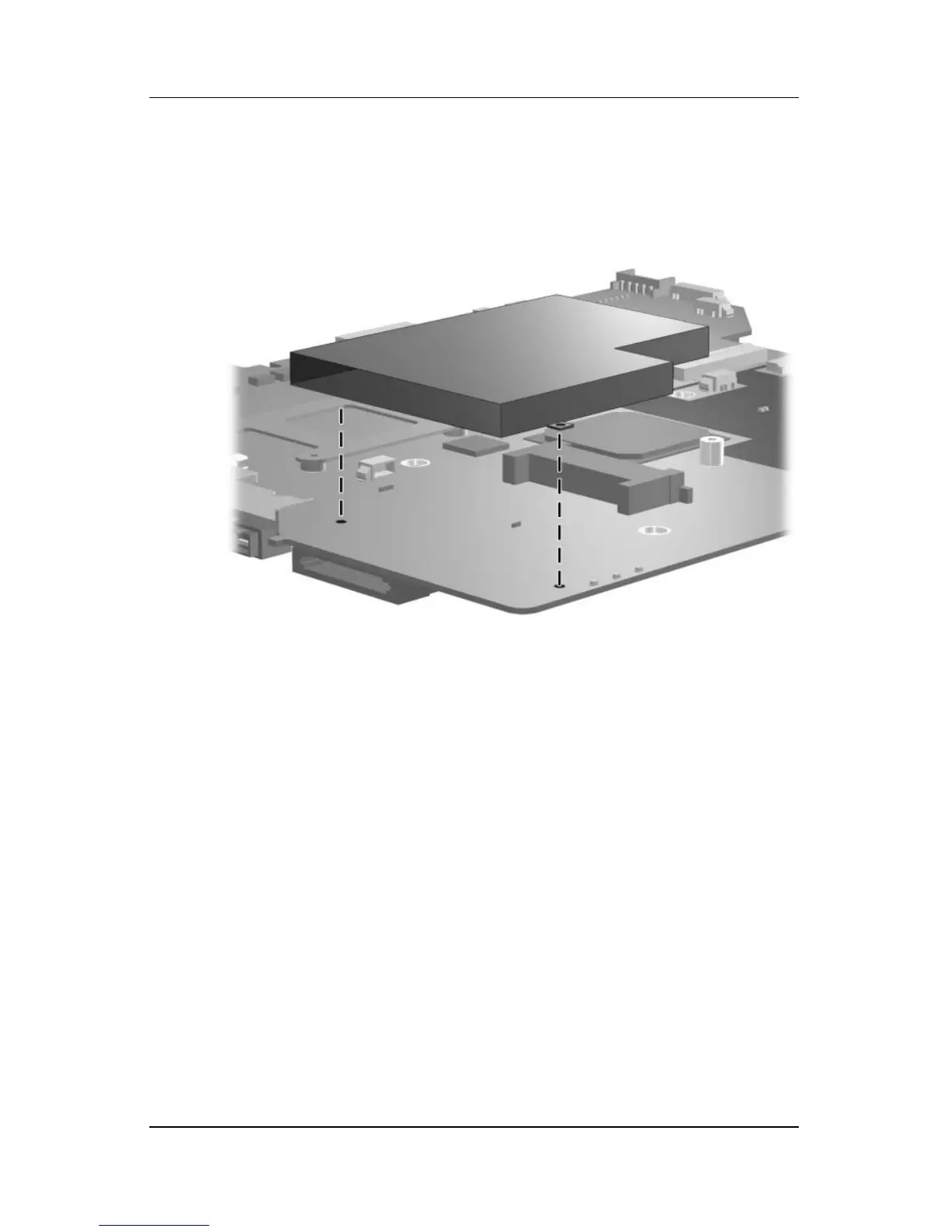

Removing the ExpressCard Assembly
Reverse the above procedure to install the ExpressCard assembly.

HP Compaq V3000 Specifications

General

Graphics	Intel Graphics Media Accelerator 950
Display	14.1-inch WXGA (1280 x 800) TFT LCD
Hard Drive	120 GB SATA (5400 rpm)
Optical Drive	DVD±RW DL LightScribe
Wireless	802.11a/b/g
Operating System	Windows XP Professional
Weight	2.3 kg (5.07 lbs)
Battery	6-cell Lithium-Ion
CPU	Intel Core 2 Duo
