HP 14 Series User Manual

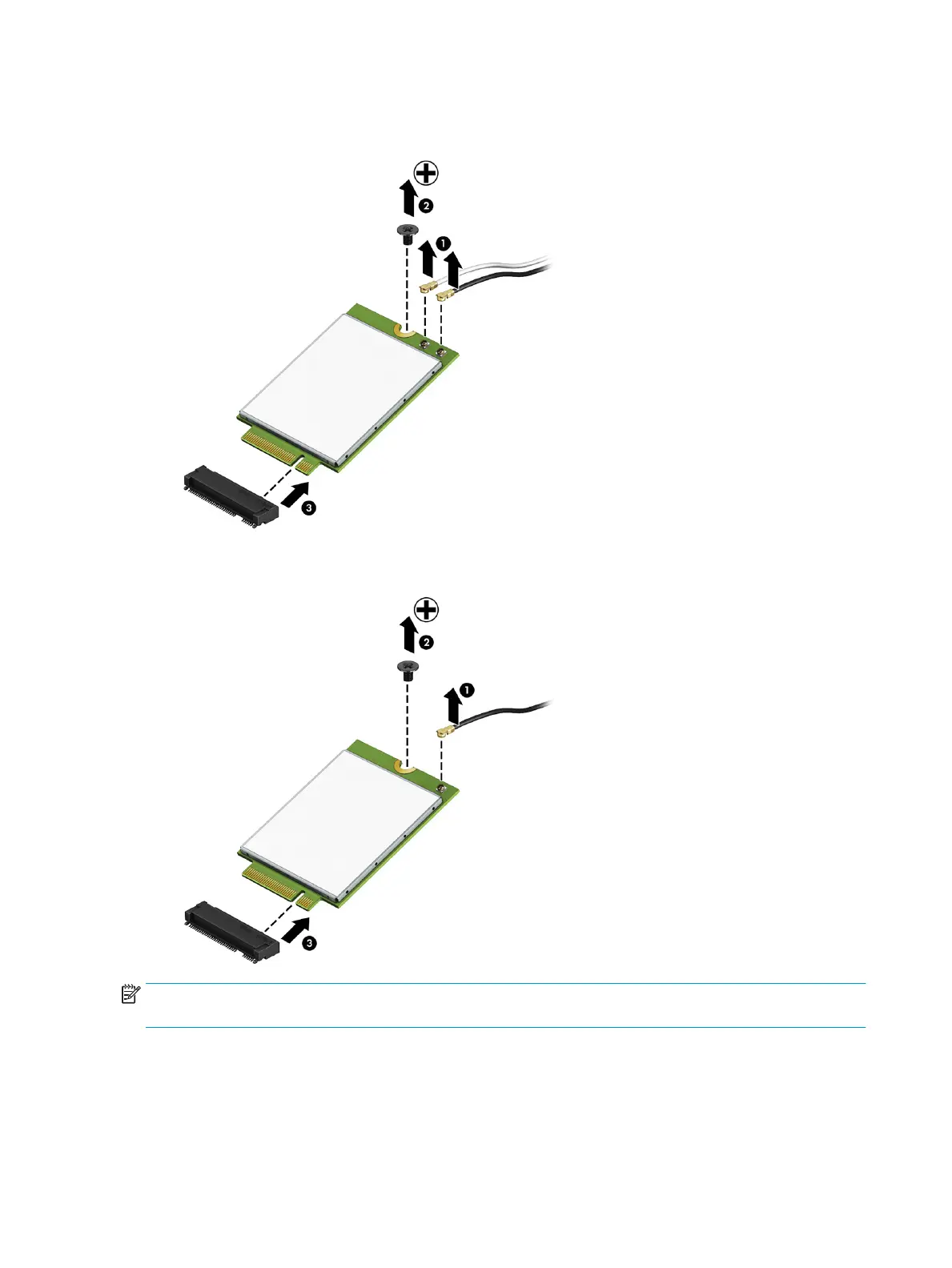

3. Remove the WLAN module (3) by pulling the module away from the slot at an angle.
Models with two antennas
Models with one antenna
NOTE: If the WLAN antenna is not connected to the terminal on the WLAN module, a protective sleeve must
be installed on the antenna connector, as shown in the following illustration.
34 Chapter 5 Removal and replacement procedures for authorized service provider parts

HP 14 Series Specifications

General

Series	14 Series
Category	Laptop
Processor	AMD Ryzen 3 / Ryzen 5 / Ryzen 7
Graphics	AMD Radeon Graphics
Display	14-inch HD (1366 x 768) / FHD (1920 x 1080)
Memory	4GB / 8GB DDR4
Storage	128GB / 256GB SSD
Operating System	Windows 10 Home
Battery	3-cell, 41 Wh Li-ion
Dimensions	32.4 x 22.5 x 1.79 cm (12.76 x 8.86 x 0.70 in)
Ports	HDMI
Wireless	Wi-Fi 802.11a/b/g/n/ac and Bluetooth (version varies by model)
