HP 1810-24G User Manual

Getting started with the web interface
This section describes the following Web pages:
• Logging on
• Interface layout and features
Logging on
Follow these steps to log on through Web interface:
1. Open a Web browser and enter the IP address of the switch in the Web browser address
field.
2. On the Login page, enter the password (if one has been set), and then click Login.
By default, there is no password. After the initial log on, the administrator may configure a
password.
NOTE: To set passwords, see “Password Manager” (page 64).

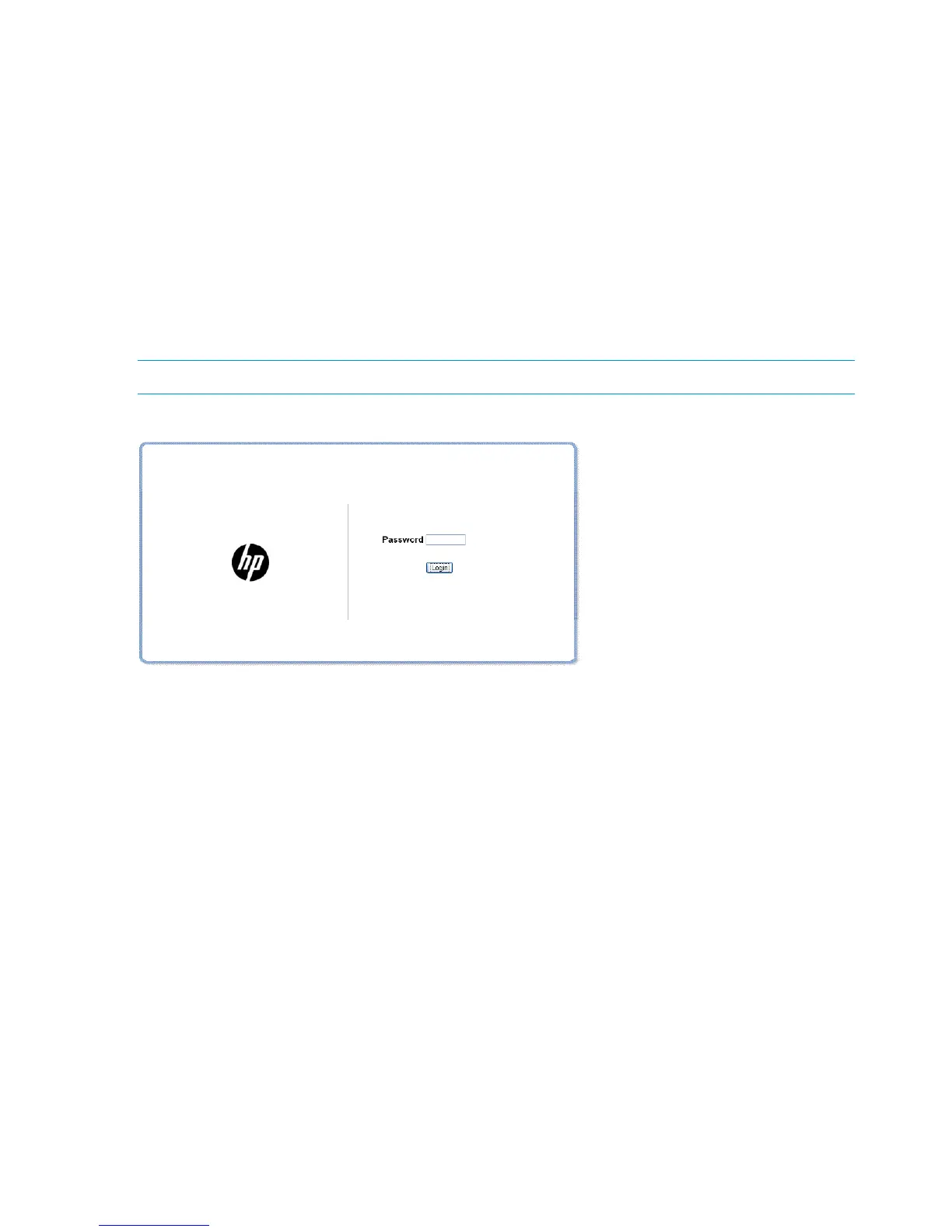

Figure 1 Login Page
Interface layout and features
Figure 2 shows the initial view.
8 Getting Started

HP 1810-24G Specifications

General

Switching Capacity	52 Gbps
Throughput	38.7 Mpps
Form Factor	Rack-mountable
Management	Web-based GUI
Power Supply	Internal
Layer	Layer 2
Operating Temperature	0°C to 40°C (32°F to 104°F)
Ports	24 RJ-45 10/100/1000 ports
Weight	2.27 kg (5.0 lb)
Operating Humidity	10% to 90% non-condensing
