Installing the 1U Integrated Keyboard Drawer
2-6 HP 1U Integrated Keyboard Drawer User Guide
HP CONFIDENTIAL
Writer: John Turner - Amy Laffitte File Name: c-ch2 Installing the 1U Integrated Keyboard Drawer
Codename: Dachshund Part Number: 269450-001 Last Saved On: 8/2/02 9:30 AM
5. Attach the cable management arm to the rear of the 1U Integrated Keyboard
Drawer with two 6-32 screws.

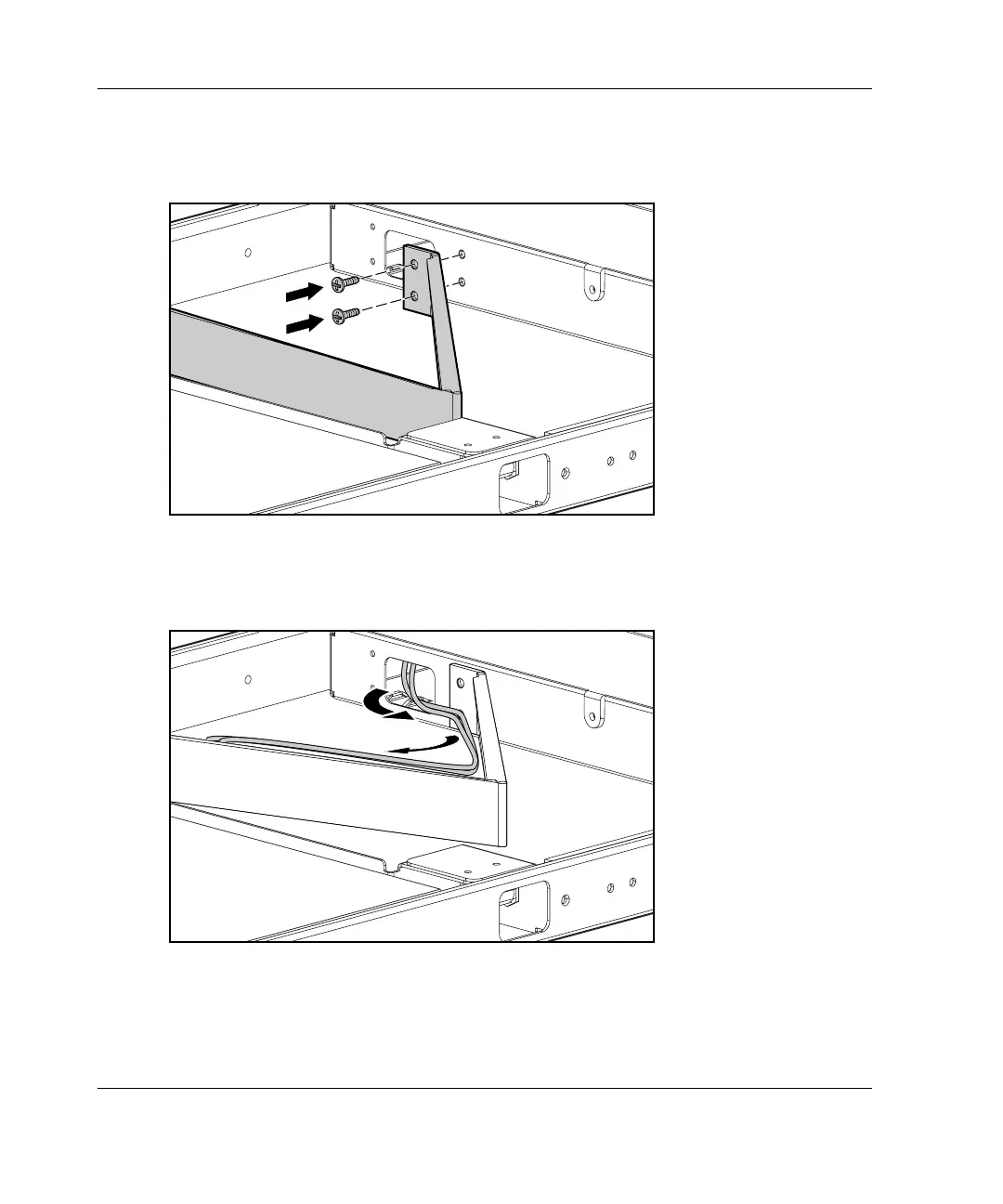

Figure 2-5: Attaching the cable management arm
6. Route the keyboard and mouse cables into the cable management arm and then
through the cable management arm brace and mounting rail opening.
Figure 2-6: Routing the cables
