HP 24fh - 3 Illustrated Parts Catalog

8
3 Illustrated parts catalog

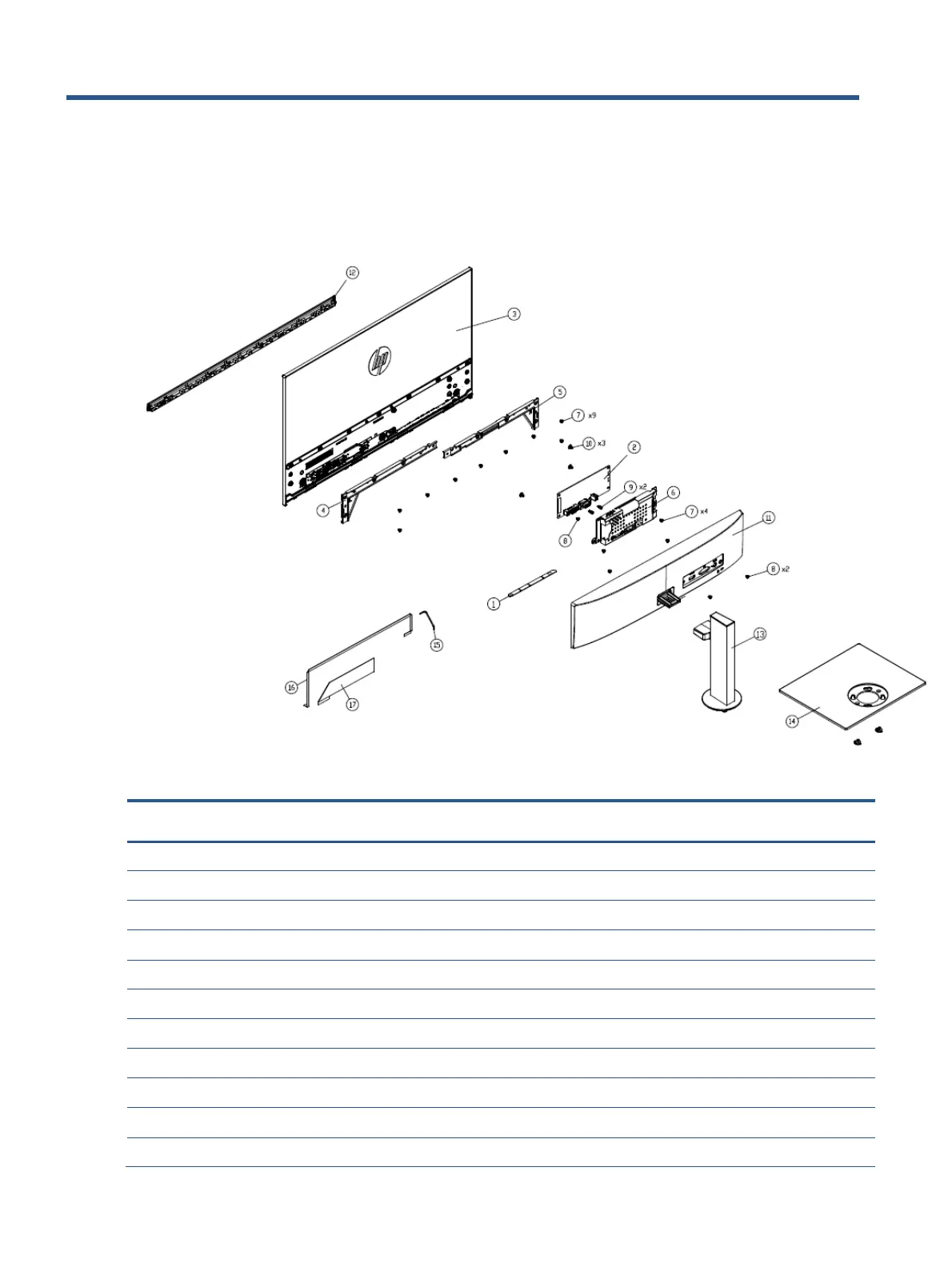

To identify the monitor major components, use this illustration and table.
24fh
<
Table 3-1>
Item Description Qty
1 DISPLAY BD ASS'Y 1
2 MAIN BD ASS'Y HP 24fh 1
3 23.8 ES8.0 LCM HP （black） 1
4 Frame_L(ABS 94-HB/J13417B5) 1
5 Frame_R(ABS 94-HB/J13417B5) 1
6 SHIELDING (1A1H)(ENCORE) 1
7
MAC. SCREW
-MI M3.0*4.0L, BLK-Ni 13
8 MAC. SCREW-MI M3.0*6.0L, BLK-ZNNI 3
9
MAC. SCREW
-MH #4-40*5.0L,Ni 2
10
MAC. SCREW
-MRF M3.0*6.0L, 3
11
REAR COVER(ABS 94
-HB/Jack Black ASS'Y 1
