L50022-001: FHD

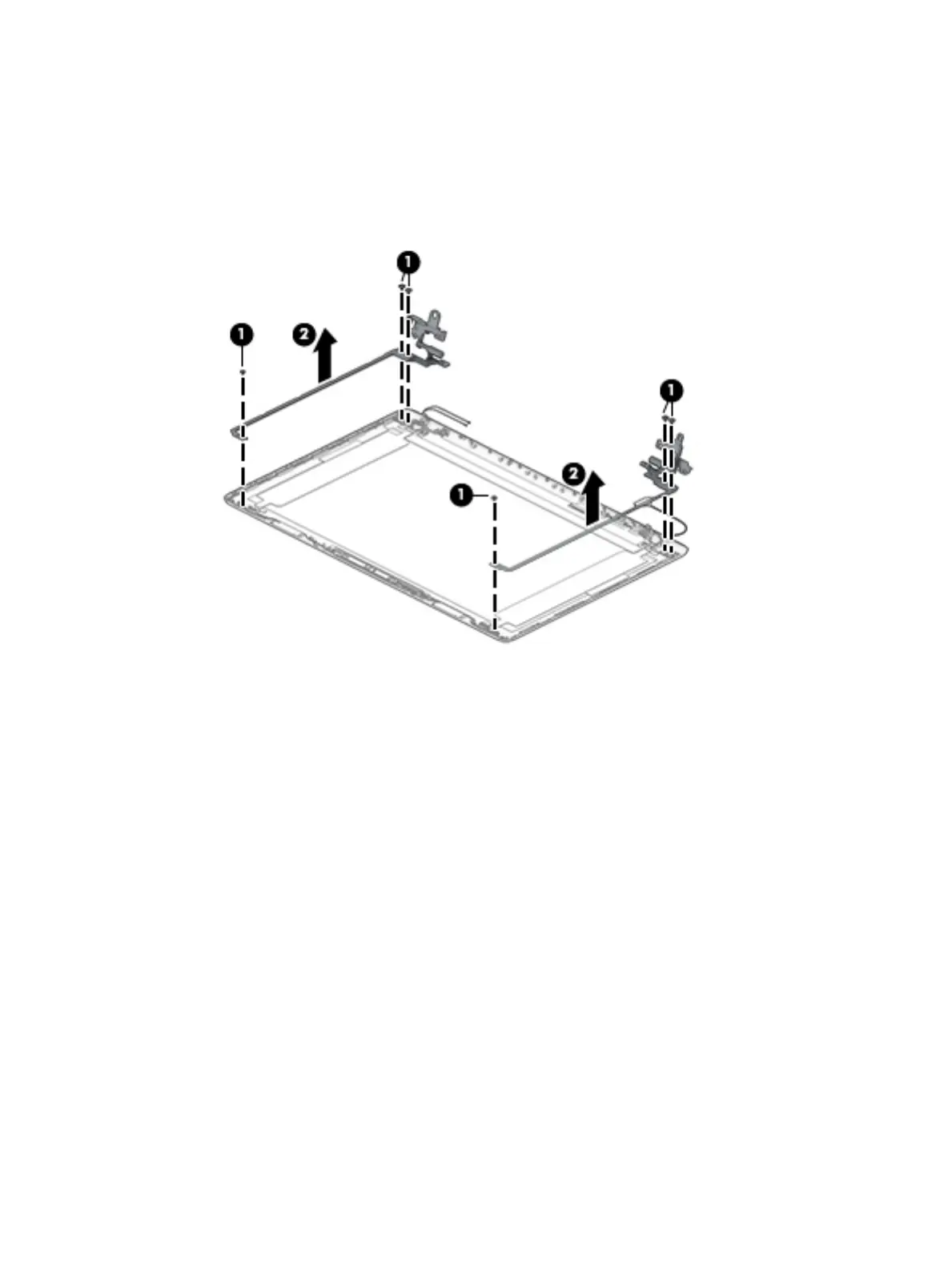

5. If it is necessary to replace the display hinges:
a. Remove the three Phillips M2.5 × 2.5 screws (1) from each hinge.
b. Remove the display hinges (2).
The display hinges are available using spare part number L20420-001.
6. If it is necessary to replace the display panel cable:
a. Release the cable from the retention clips and routing channel built into the bottom edge and side
of the display enclosure (1).
58 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
