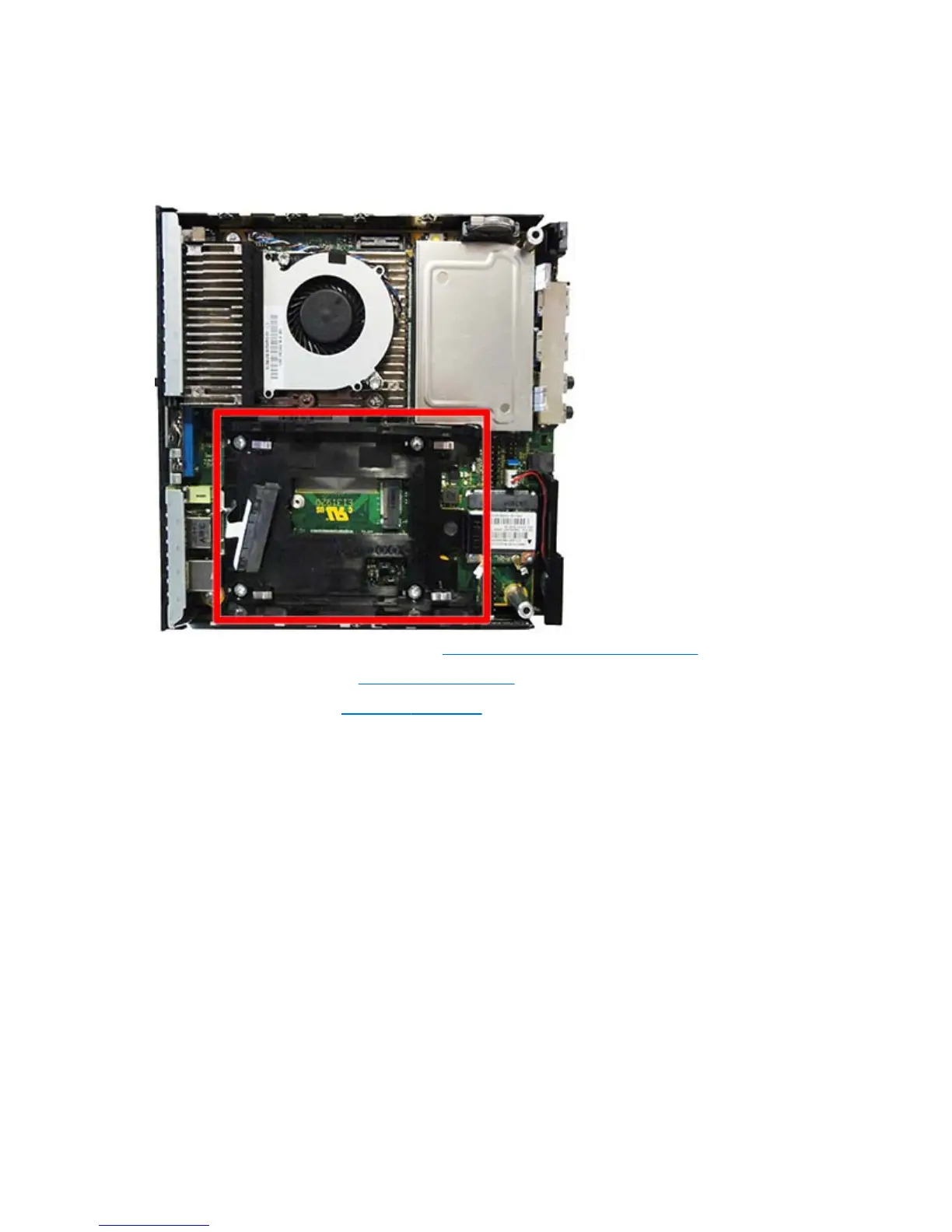

Drive cage and drive cable
The drive cage is located next to the heat sink and is secured with four Torx screws. The drive cable routes
through a slot in the drive cage. When removing the drive cage, lift the cage up to access the drive cable
connector underneath, and then disconnect the cable. Then you can slide the cable out of the drive cage.
1. Prepare the computer for disassembly (Preparation for disassembly on page 17).
2. Remove the access panel (
Access panel on page 18).
3. Remove the hard drive (
Hard drive on page 19).
4. Remove the four Torx screws (1) that secure the drive cage to the computer.
32 Chapter 4 Removal and replacement procedures
