Removing a slim optical drive
1. Prepare the computer for disassembly (Preparation for disassembly on page 15)
2. Remove the access panel (Access panel on page 16)

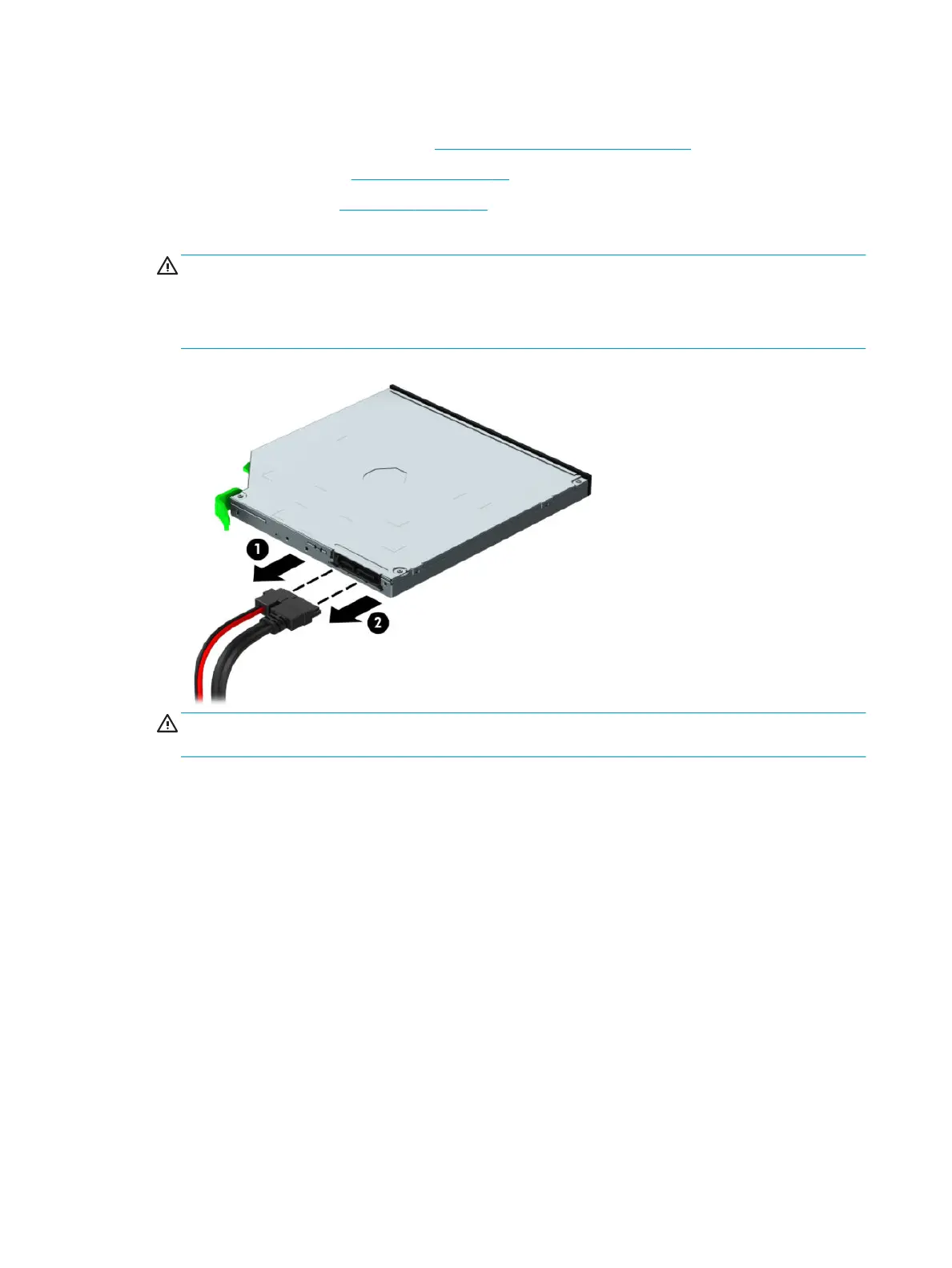

3. Remove the front bezel (Front bezel on page 17)
4. Disconnect the power cable (1) and data cable (2) from the rear of the optical drive.
CAUTION: The slim optical drive must be removed from the drive cage before the drive cage can be
removed.
CAUTION: When removing the cables, pull the tab or connector instead of the cable itself to avoid
damaging the cable.
CAUTION: When removing the cables, pull the tab or connector instead of the cable itself to avoid
damaging the cable.
28 Chapter 4 Removal and replacement procedures
