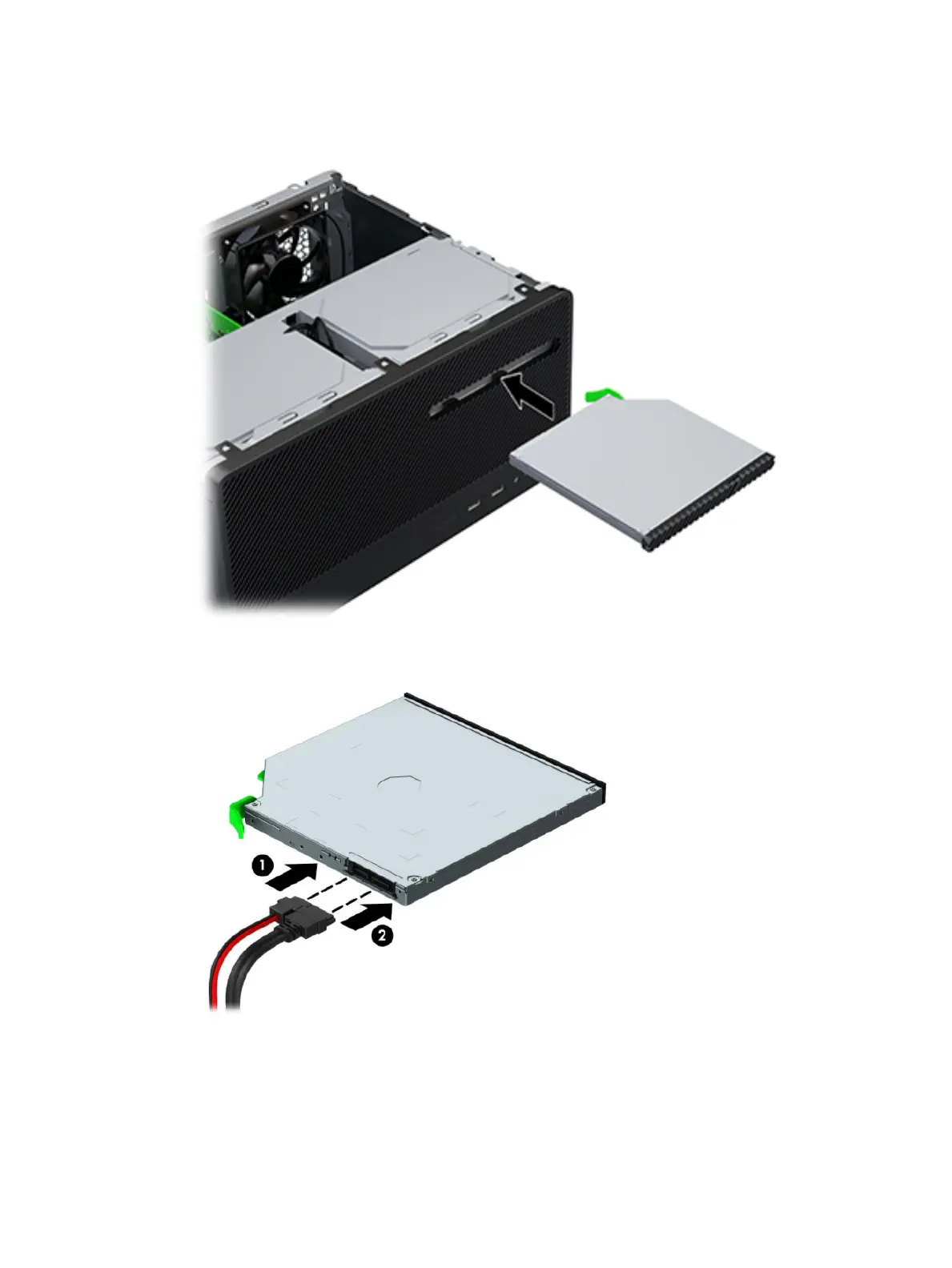

6. Slide the optical drive through the front of the chassis all the way into the bay so that the green latch locks
onto the chassis frame.
7. Connect the power cable (1) and data cable (2) to the rear of the optical drive.
8. If installing a new drive, connect the opposite end of the data cable to one of the SATA connectors (labeled
SATA1 or SATA2) on the system board.
9. Replace the front bezel if it was removed.
10. Replace the computer access panel.
Drives 31
