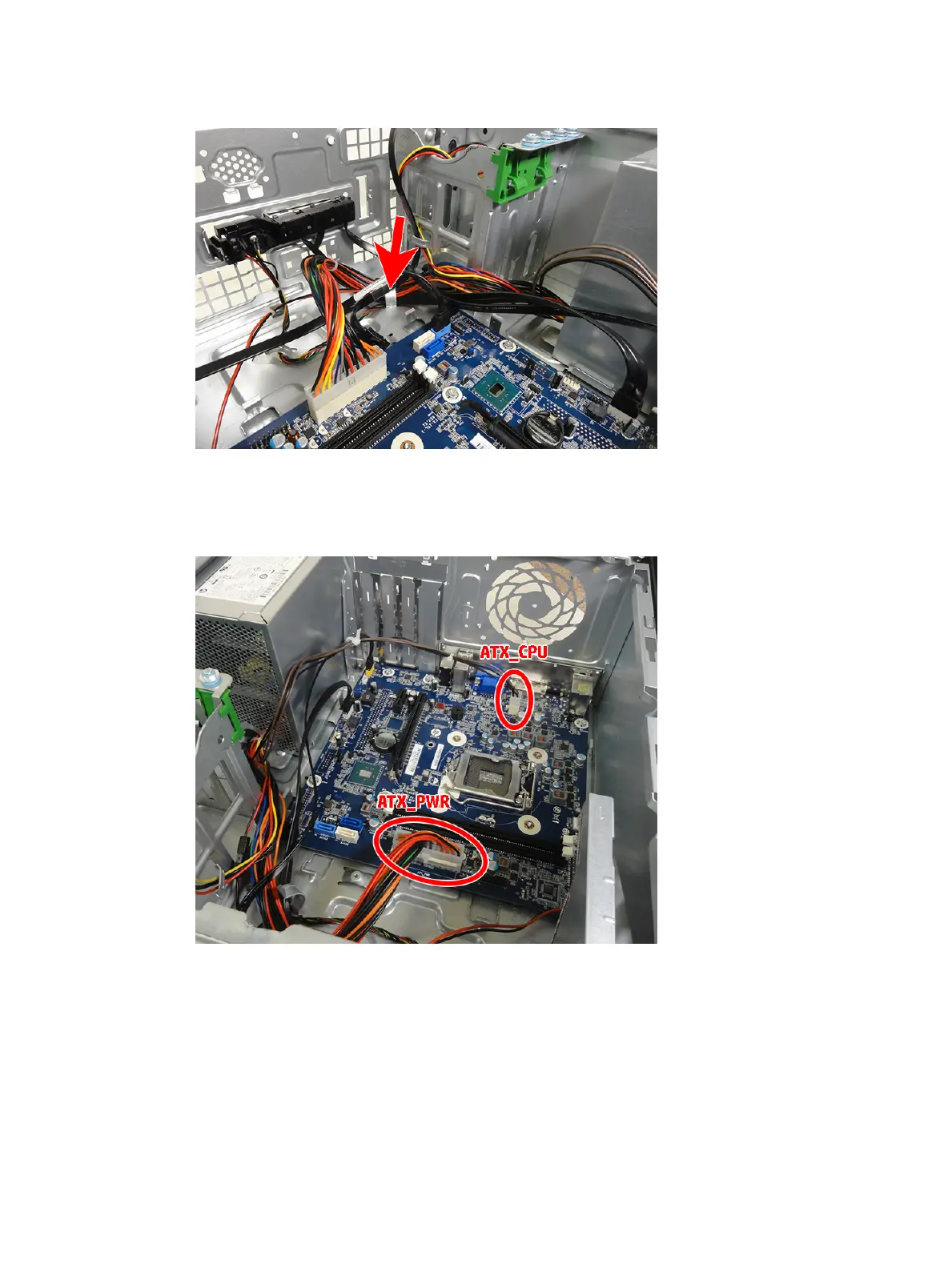

7. Remove the power cable from the clip on the base pan.

8. Disconnect the power supply cables from the following system board connectors:

ATX_CPU

ATX_PWR

9. Press the tab (1) on the base pan in front of the power supply that holds it in place.

Power supply 39
