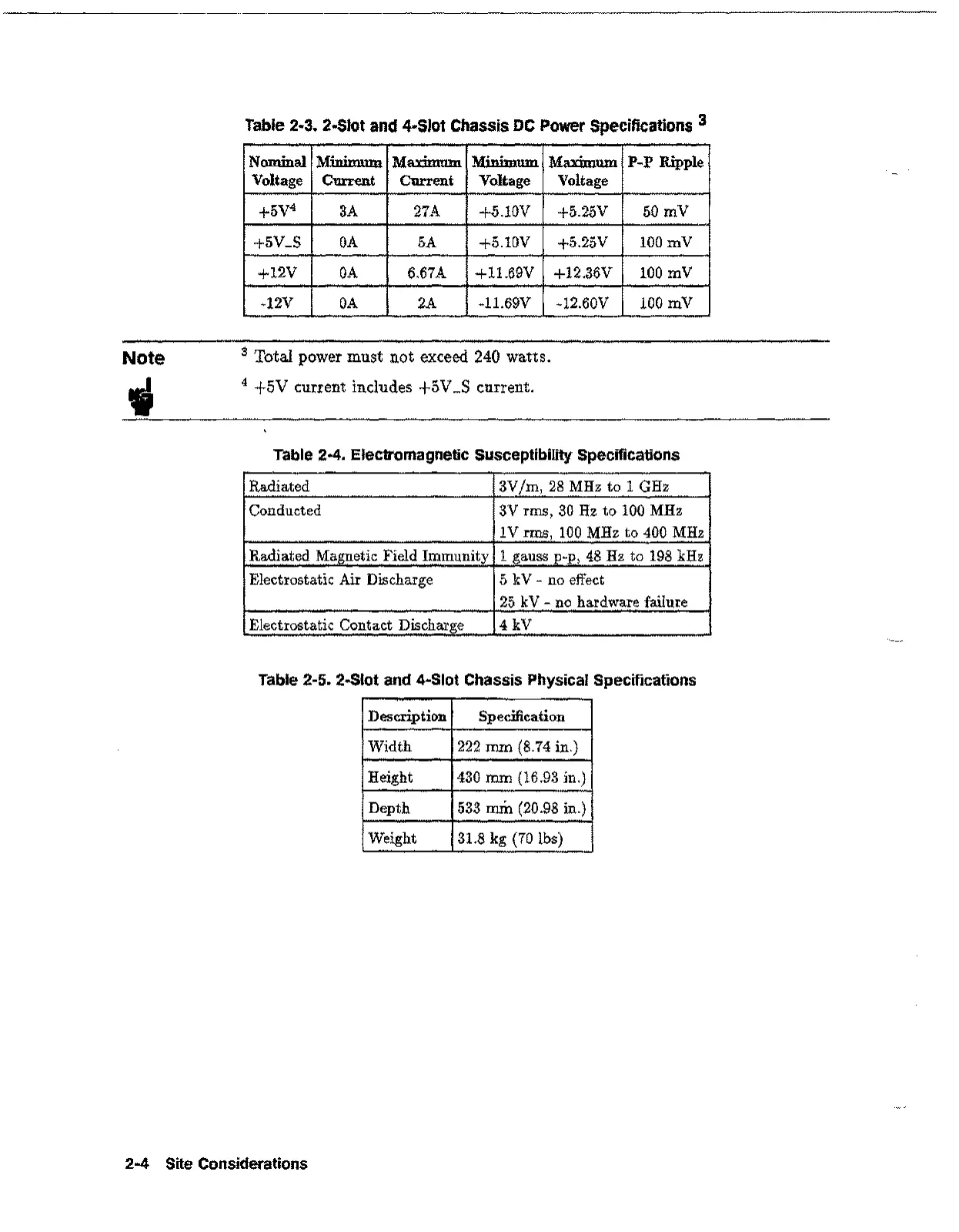

Table 2·3. 2·Slot
and
4·510t Chassis
DC
Power Specifications 3
Nominal
Minimum
Maximum
Minimum
Maximum
p-p Ripple
Voltage Current
Current Voltage Voltage
+5V4
3A 27A
+5.10V +5.25V
50 mV
+5V_S OA
5A +5.10V
+5.25V
100mV
+12V
OA 6.67A
+lL69V +12.36V
100 mV
-12V OA
2A
-11.69V
-12.60V 100 mV
Note
"
3
Total power must not exceed 240 watts.
4
+5V current includes +5V_S current.
Table 2·4. Electromagnetic Susceptibility Specifications
Radiated 3V
jm,
28 MHz to 1 GHz
Conducted
3V rrns, 30 Hz to 100 MHz
1V rrns, 100 MHz to 400 MHz
Radiated Magnetic Field Immunity
1 gauss p-p, 48 Hz to 198 kHz
Electrostatic Air Discharge
5 kV - no effect
25 kV - no hardware failure
Electrostatic Contact Discharge
4 kV
Table 2·5. 2·Slot and 4·Slot Chassis Physical Specifications
Description
Specification
Width 222 mm (8.74 in.)
Height
430 mm (16.93 in.)
Depth
533 mm (20.98 in.)
Weight
31.8 kg (70 lbs)
