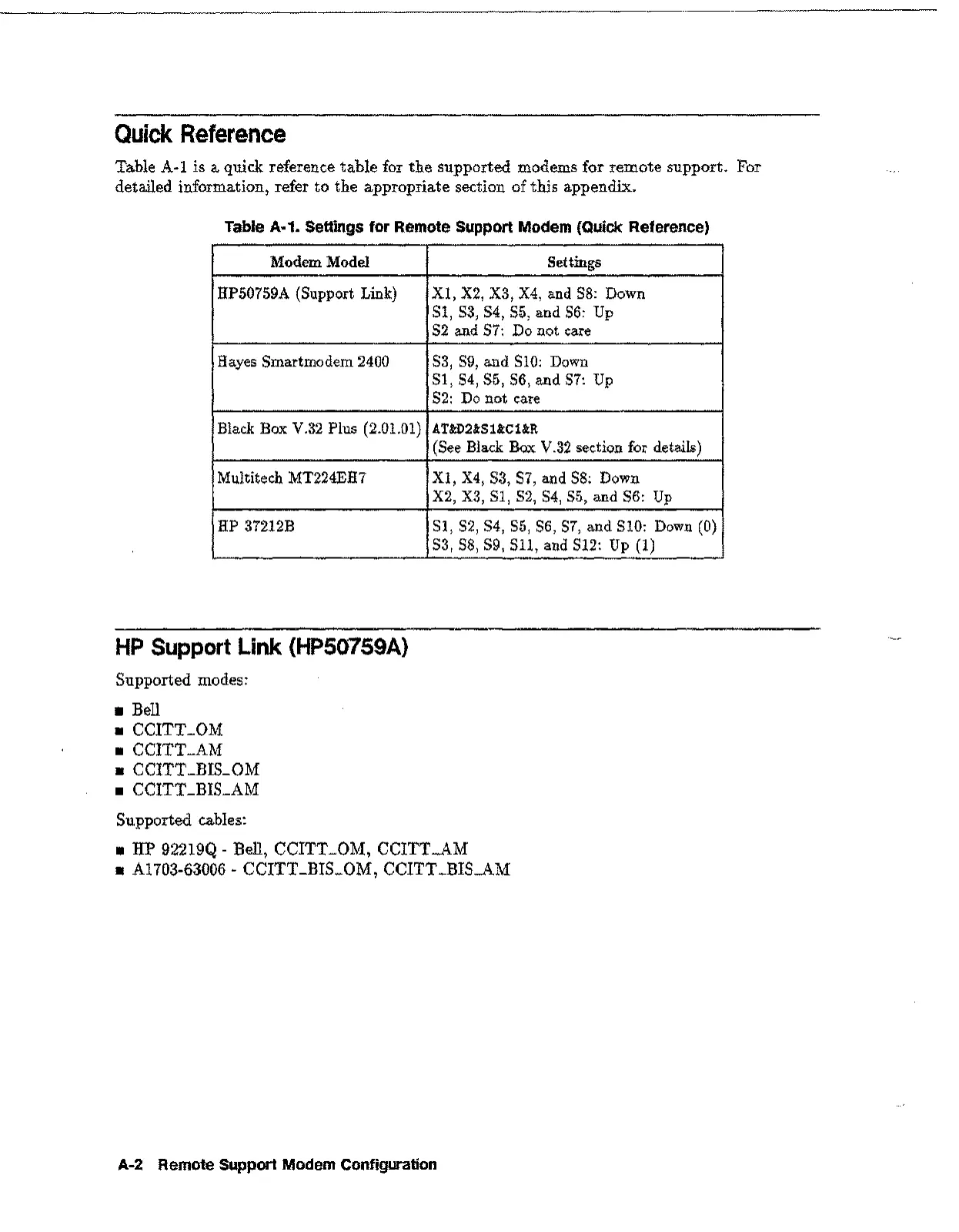

Quick Reference
Table A-I is a quick reference table for the supported modems for remote support. For
detailed information, refer to the appropriate section of this appendix.
Table A·1. Settings for Remote Support Modem (Quick Reference)
Modem Model Settings
HP50759A (Support Link)
xi,
X2, X3, X4, and S8: Down
si,
S3, S4, S5, and S6: Up
S2 and S7: Do not care
Hayes Smartrnodem 2400 S3, S9, and S10: Down
si,
S4, S5, S6, and S7: Up
S2: Do not care
Black Box V.32 Plus (2.01.01)
AT&D2&Sl&Cl&R
(See Black Box V.32 section for details)
Multitech MT224EH7 Xl, X4, S3, S7, and S8: Down
X2, X3,
si,
S2, S4, S5, and S6: Up
HP 37212B
si,
S2, S4, S5, S6, S7, and S10: Down (0)
S3, S8, S9, SI1, and S12: Up (1)
HP Support Link (HP50759A)
Supported modes:
• Bell
• CCITT_OM
• CCITT_AM
• CCITT_BIS_OM
• CCITT _BIS_AM
Supported cables:
• HP 922I9Q - Bell, CCITT_OM, CCITT_AM
• A1703-63006 - CCITT_BIS_OM, CCITT _BIS_AM
A-2 Remote Support Modem Configuration
