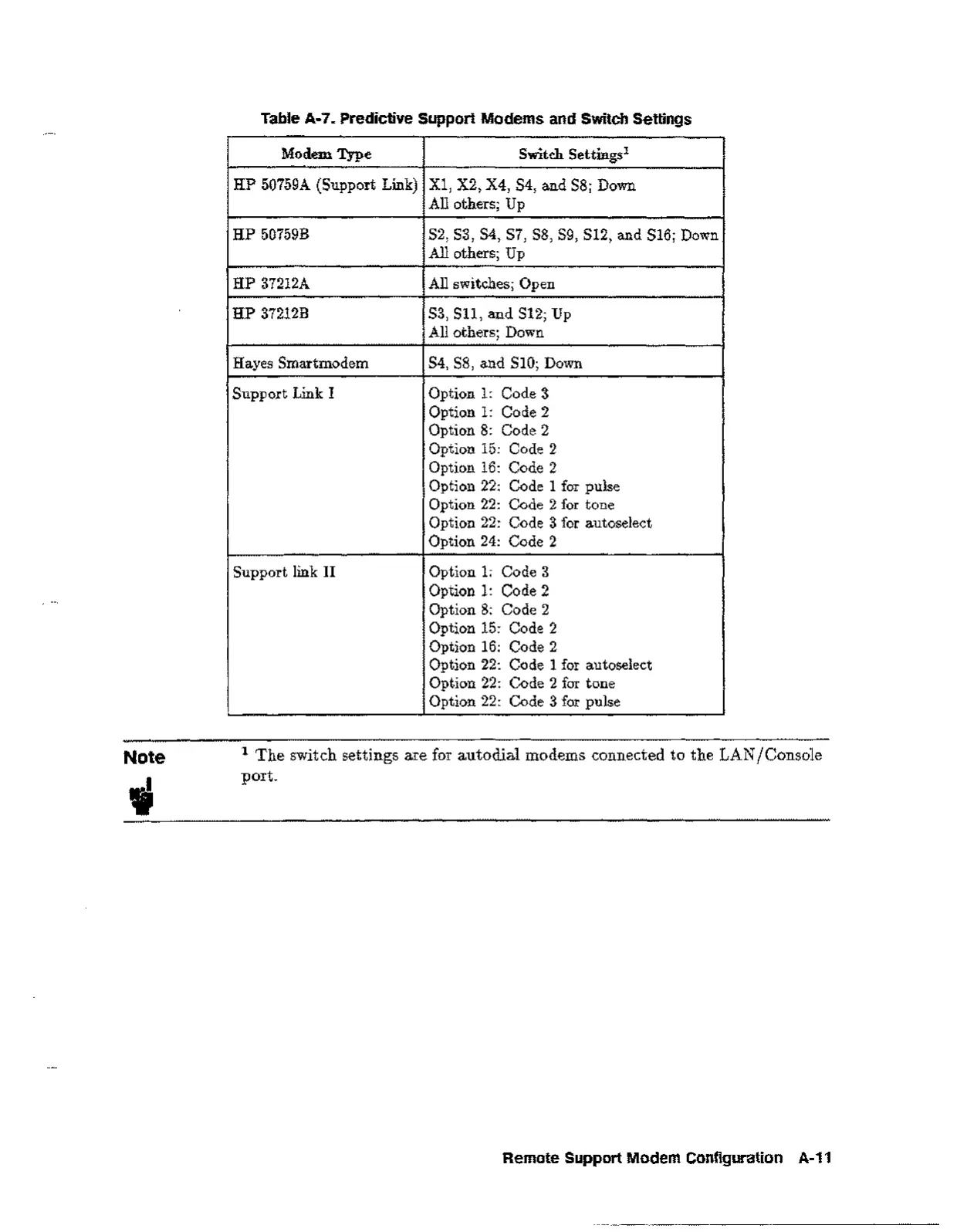

Table A-7. Predictive Support Modems and Switch Settings
Modem Type
Switch Settings!
HP 50759A (Support Link)
Xl, X2, X4, S4, and S8; Down
All others; Up
HP 50759B S2, S3, S4, 57, S8, S9, S12, and S16; Down
All others; Up
HP 37212A All switches; Open
HP 37212B 53, 511, and 512; Up
All others; Down
Hayes Smartmodem S4, 58, and S10; Down
Support Link I
Option 1: Code 3
Option 1: Code 2
Option 8: Code 2
Option 15: Code 2
Option 16: Code 2
Option 22: Code 1 for pulse
Option 22: Code 2 for tone
Option 22: Code 3 for autoselect
Option 24: Code 2
Support link II Option 1: Code 3
Option 1: Code 2
Option 8: Code 2
Option 15: Code 2
Option 16: Code 2
Option 22: Code 1 for autoselect
Option 22:
Code 2 for tone
Option 22: Code 3 for pulse
Note
1 The switch settings are for aut adial modems connected to the LAN jConsole
port.
Remote Support Modem Configuration A-11
