HP 3235 User Manual

Line Voltage
Selection
Installing the HP 3235
10
Relcr to Figure 5 when selecting line voltage.
The HP 3235 requires an ac power source that is nominally either 100-120 Vac
or 200-240 Vac, 48 to 66Hz, single-phase.
l. Set the LINE switch in the upper left corner of the user side to STBY (STBY
position is identified under the switch).
2. Remove the power cord from the - LINE connector if one is installed.
3. Set the - SELECfOR switch to the desired voltage setting with a flat blade
screwdriver.

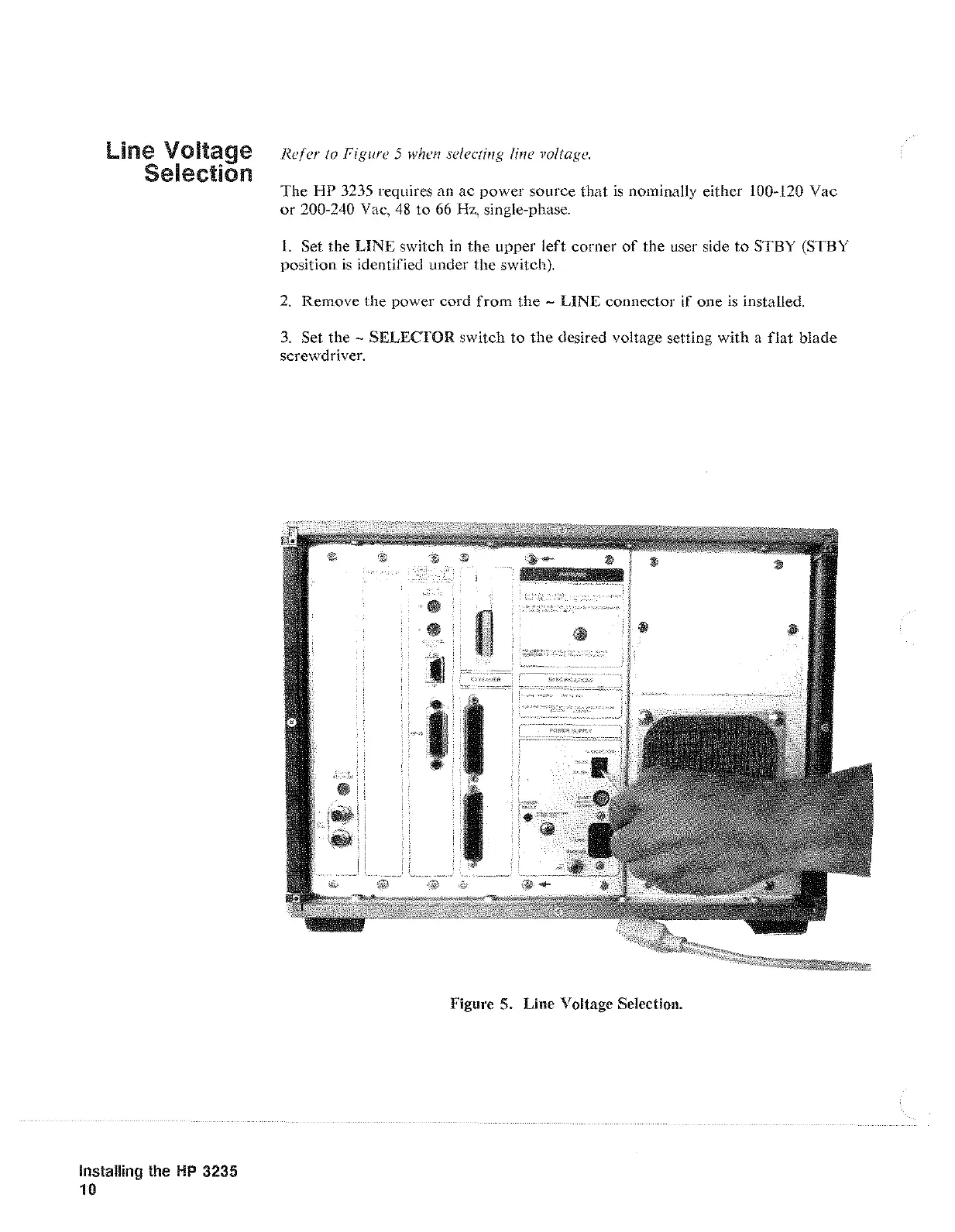

Figure 5. Line Voltage Selection.
