Cable
Terminal
Block
I
The HP 34504, 34505, and 34506 plug-in modules have lockable female BNC
connectors for user connections. These female BNC connectors accept user-
supplied locking male BNC connectors or the non-locking BNC connectors sup-
plied with the cable or bulkhead terminal blocks. The cable terminal block is
supplied with BNC modules having an "A" suffix in its model number (e.g.
HP 34506A). The bulkhead terminal block is supplied with modules having a "B"
suffix (e.g. HP 34506B). No terminal block is supplied with modules having a "C"
suffix (e.g. HP 34506C).

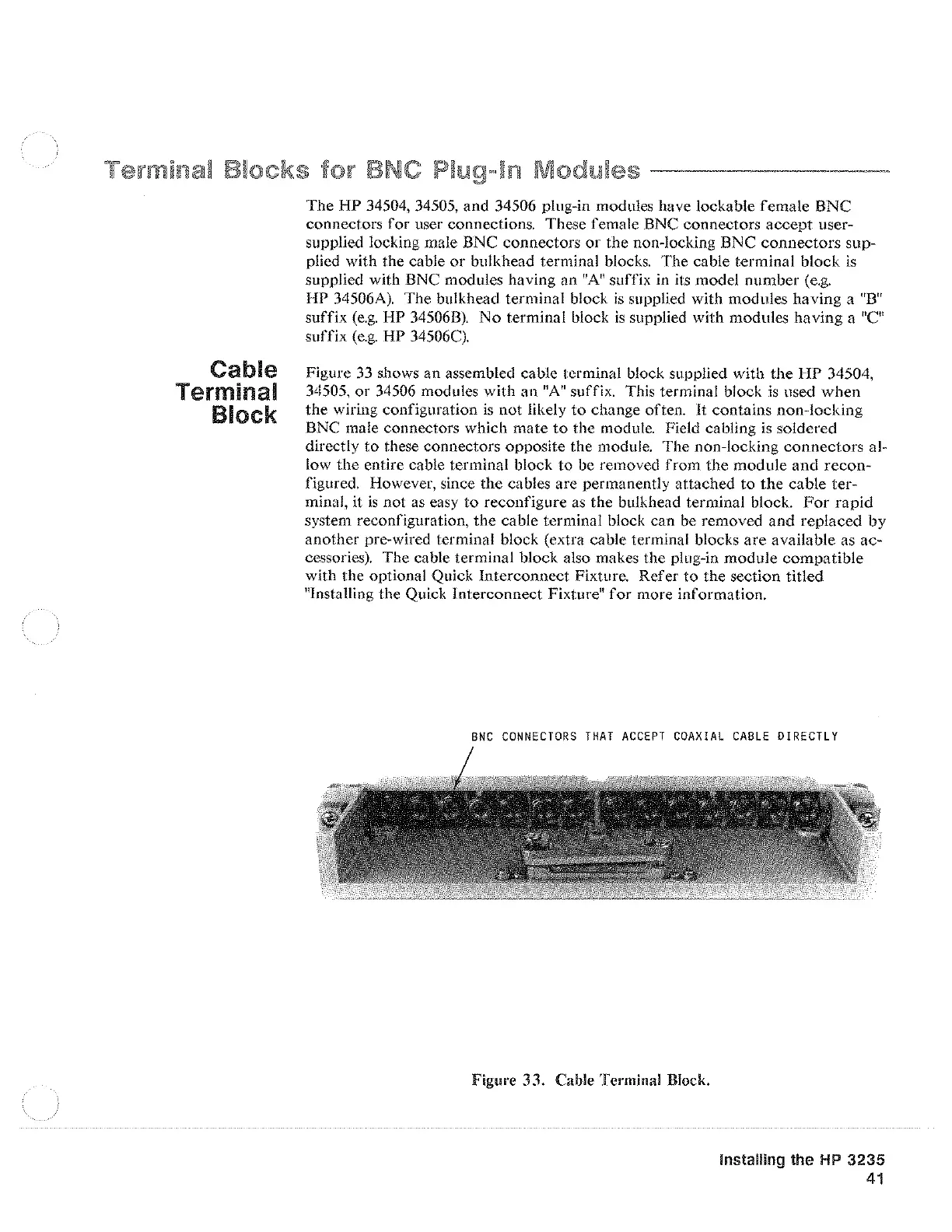

Figure 33 shows
an assembled cable terminal block supplied with the HP 34504,
34505,
or 34506 modules with an "A" suffix. This terminal block is used when
the wiring configuration is not likely to change often. It contains non-locking
BNC male connectors which mate to the module. Field cabling is soldered
directly
to these connectors opposite the module. The non-locking connectors al-
low the entire cable terminal block to be removed from the module and recon-
figured. However, since the cables are permanently attached to the cable ter-
minal, it is not as easy to reconfigure as the bulkhead terminal block. For rapid
system reconfiguration, the cable terminal block can be removed and replaced by
another pre-wired terminal block (extra cable terminal blocks are available as ac-
cessories). The cable terminal block also makes the plug-in module compatible
with the optional Quick Interconnect Fixture. Refer to the section titled
nlnstalling the Quick Interconnect Fixture
11
for more information.
BNC CONNECTORS THAT ACCEPT COAXIAL CABLE DIRECTLY
Figuo·e 33. Cable Terminal Block.
Installing the HP 3235
41
