Removing
Terminal
Block
Extractors
Terminal blocks are supplied
with
extractors installed. These
extractors
are
required
to
disengage the terminal block
from
the module
connectors
when
you
want
to
remove the terminal block. Rotating the extractors
away
from
the
ter-
minal block partially disengages
the
connectors.
If
you
are
using an
HP
34591
Quick Interconnect Fixture, you must remove both upper
and
lower
extractors

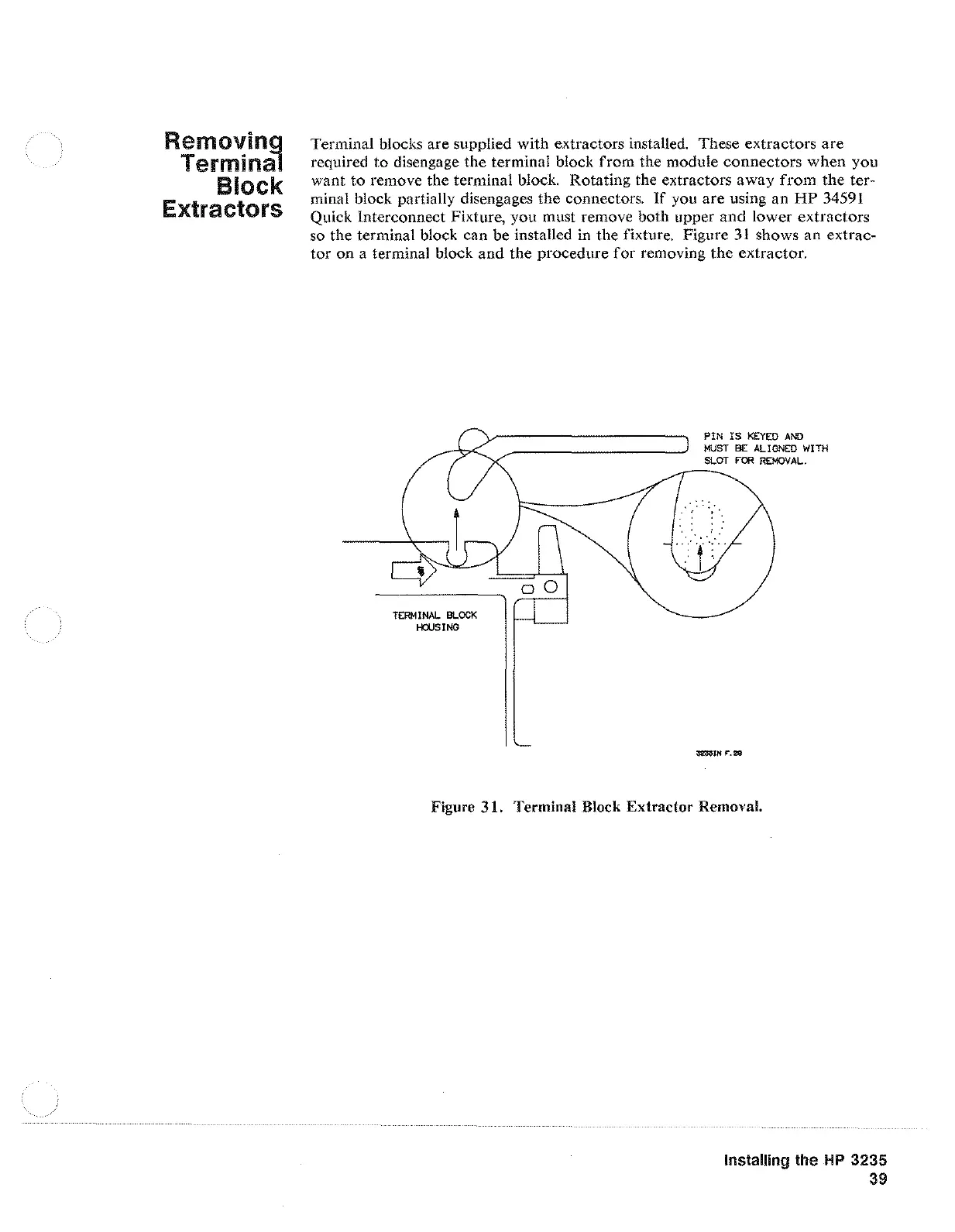

so the terminal block can be installed in the fixture. Figure
31
shows an extrac-
tor
on
a terminal block
and
the
procedure
for
removing
the
extractor.
TERMINAL
BLOCK
t-a.JSING
oO
PIN
IS
KEYED
AND
MUST
BE
ALIGNED
WITH
SLOT
FOR
REMOVAL.
·
..
·
..
:st\11$lH
1'.28
Figure
31.
Terminal Block Extractor Removal.
Installing the
HP
3235
39
