Installing the HP 3235
28

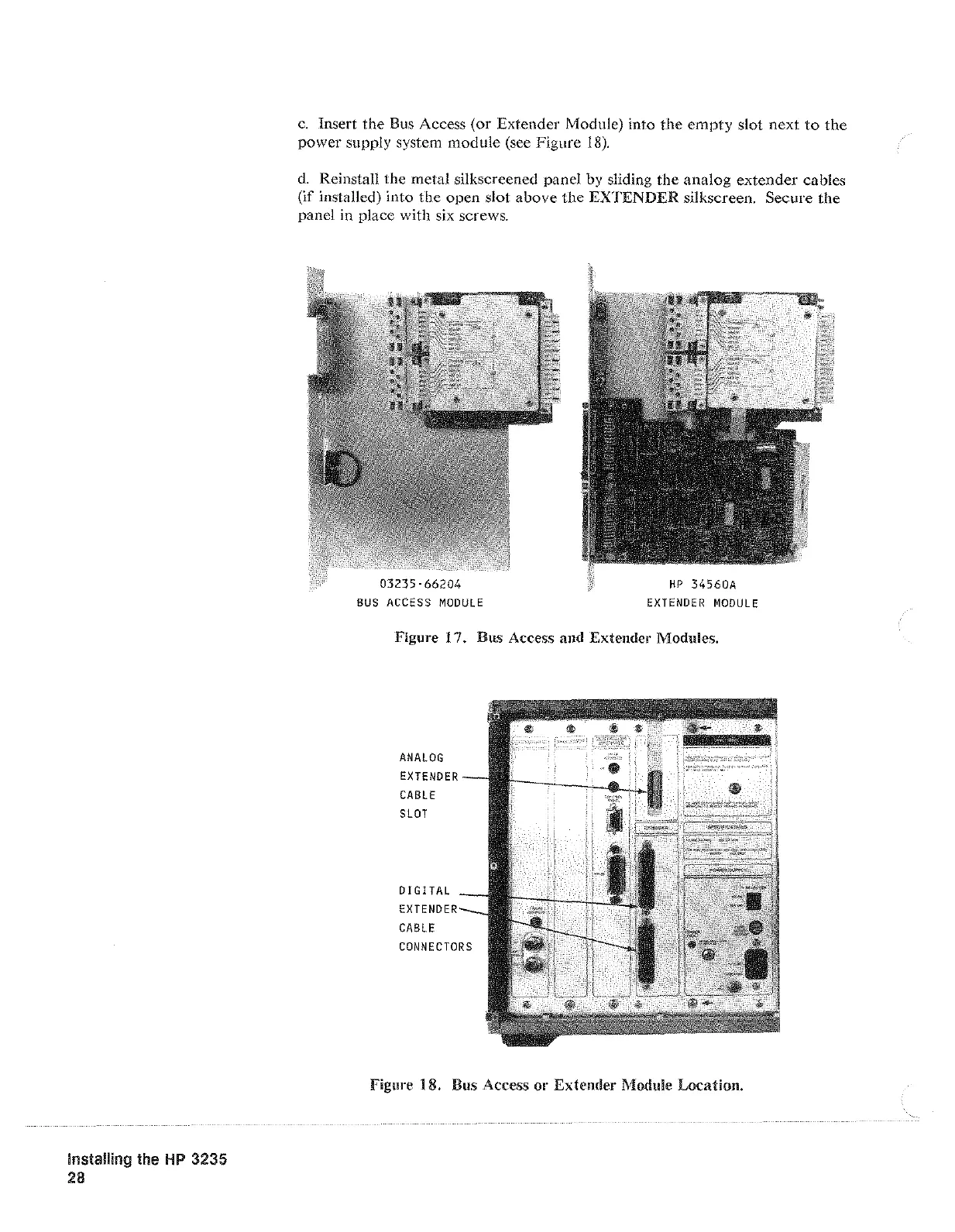

c. Insert the Bus Access (or Extender Module) into the empty slot next to the
power supply system module (see Figure 18).
d. Reinstall the metal silkscreened panel by sliding the analog extender cables
(if installed)
into the open slot above the EXTENDER silkscreen. Secure the
panel in place with six screws.
03235-66204
BUS ACCESS MODULE
HP 34560A
EXTENDER MODULE
Figure l 7. Bus Access and Extender Modules.
ANALOG
CABLE
SLOT
DIGITAL
EXTEND
CABLE
CONNECTORS
Figure 18. Bus Access or Extender Module Location.
