HP 33120A User Guide

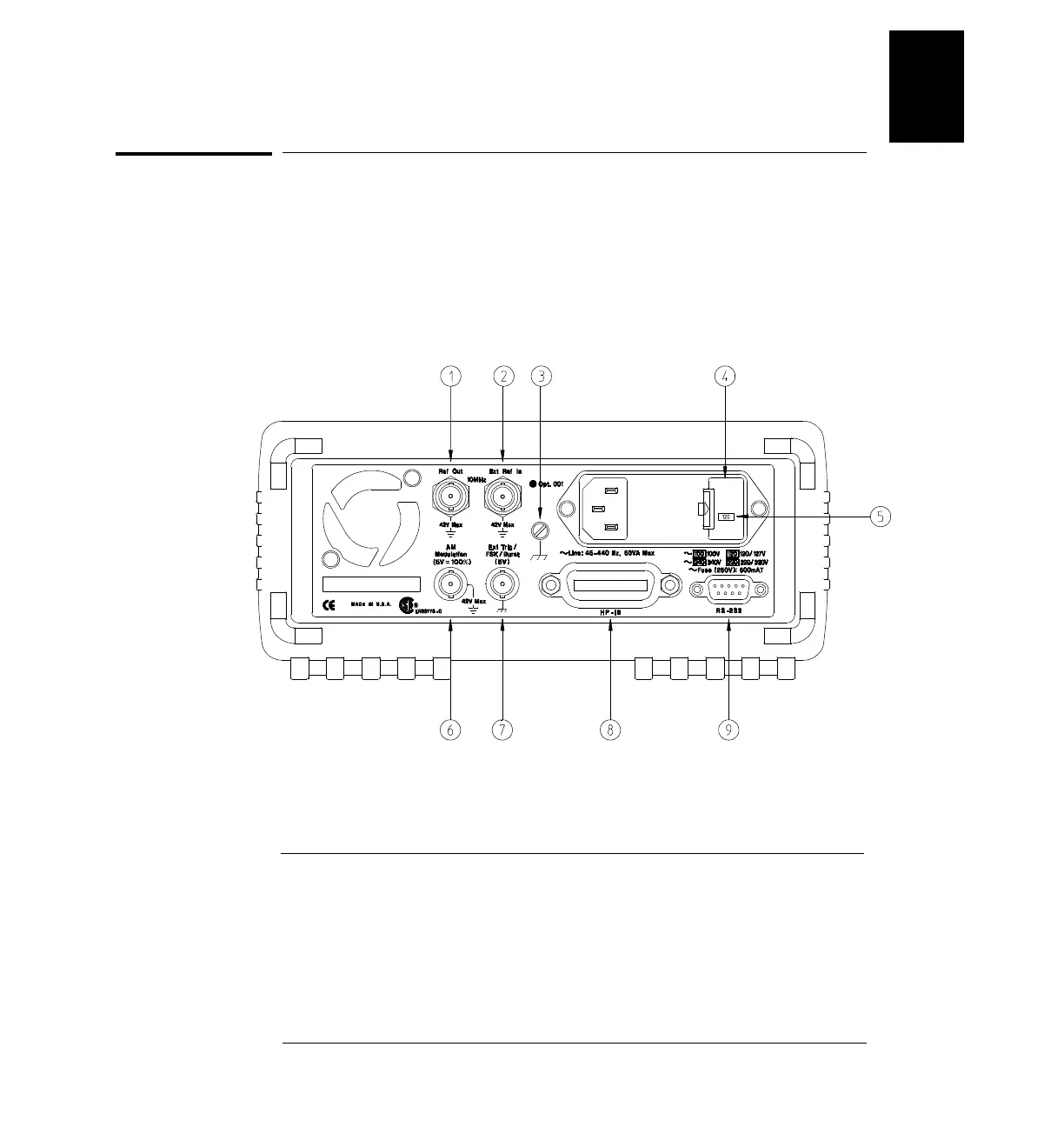

The Rear Panel at a Glance
The Phase-Lock assembly adds the Ref Out and Ext Ref In terminals
to allow synchronization between multiple HP 33120As or to an
external 10 MHz clock signal.
1 Internal 10 MHz reference output terminal
2 External 10 MHz reference input terminal
3 Chassis ground
4 Power-line fuse-holder assembly
5 Power-line voltage setting
6 AM modulation input terminal
7 External Trigger / FSK / Burst modulation
input terminal
8 HP-IB (IEEE-488) interface connector
9 RS-232 interface connector
1
Chapter 1 Quick Start
The Rear Panel at a Glance
3

HP 33120A Specifications

General

Frequency Range	100 µHz to 15 MHz
Waveforms	Sine, Square, Triangle, Ramp, Arbitrary
Amplitude Range	10 mVpp to 10 Vpp into 50 Ohms
Output Impedance	50 Ohms
Interface	GPIB
Function Generator Type	Arbitrary
Power Requirements	100/120/220/240 VAC ±10%, 50/60 Hz, 60 VA max
