HP 33120A User Guide

To phase lock using the triggered burst mode
The rear-panel Ref Out and Ext Ref In terminals allow you to

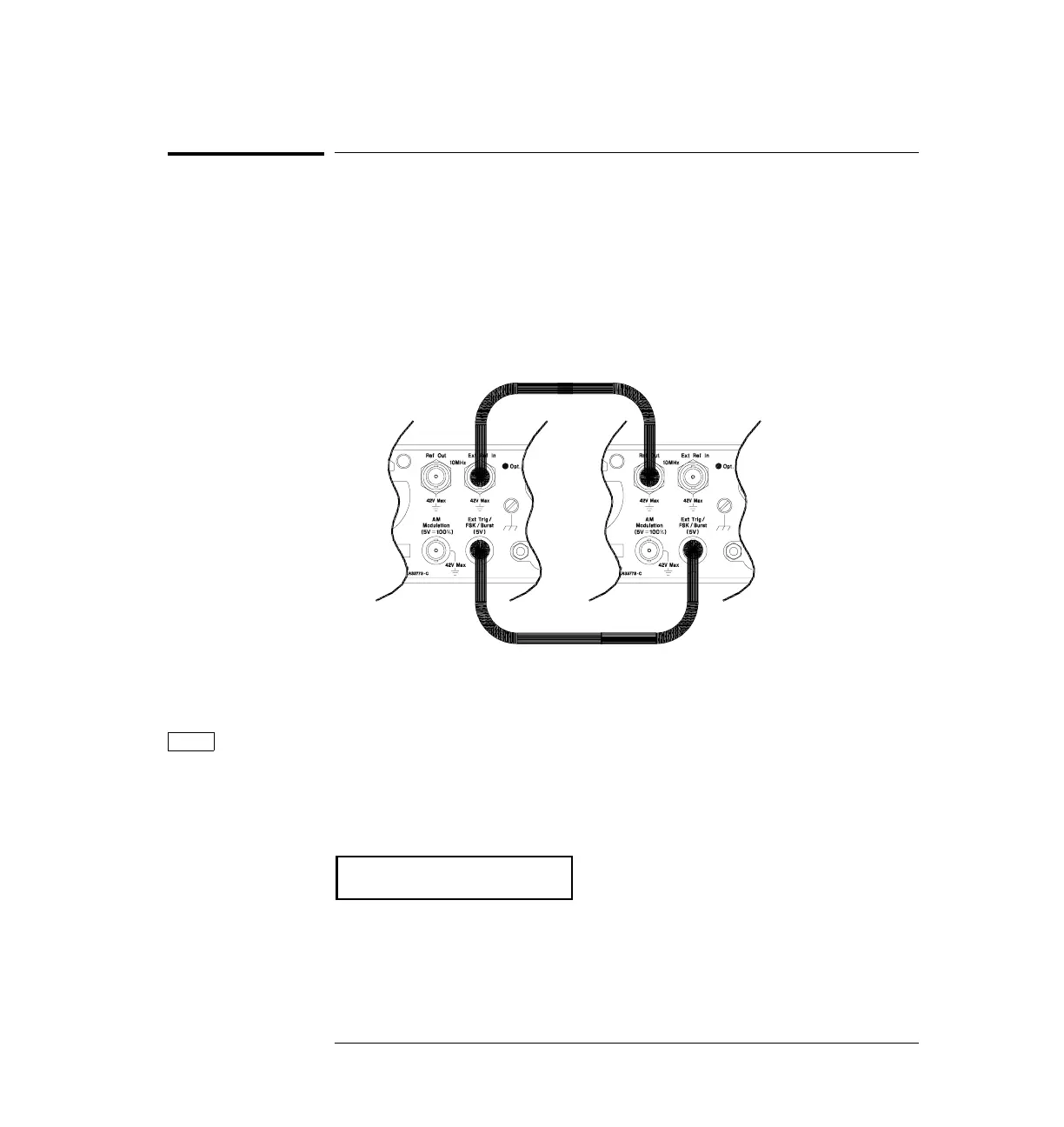

synchronize multiple function generators. The diagram below shows
how to make connections for the “triggered burst” phase-lock mode.
In the triggered burst mode, you can synchronize phase-lock signals
using an external trigger from the rear-panel Ext Trig terminal.
The following steps show you how to synchronize two function
generators at 10 kHz in the triggered burst mode.
1 Set both instruments to the same output frequency.
You can select sine, square, ramp, or triangle waveforms for phase-lock
operation. You cannot perform real-time phase adjustments on arbitrary
waveforms.
10.000,000 KHz
Freq
Chapter 1 Quick Start
To phase lock using the triggered burst mode
10

HP 33120A Specifications

General

Frequency Range	100 µHz to 15 MHz
Waveforms	Sine, Square, Triangle, Ramp, Arbitrary
Amplitude Range	10 mVpp to 10 Vpp into 50 Ohms
Output Impedance	50 Ohms
Interface	GPIB
Function Generator Type	Arbitrary
Power Requirements	100/120/220/240 VAC ±10%, 50/60 Hz, 60 VA max
